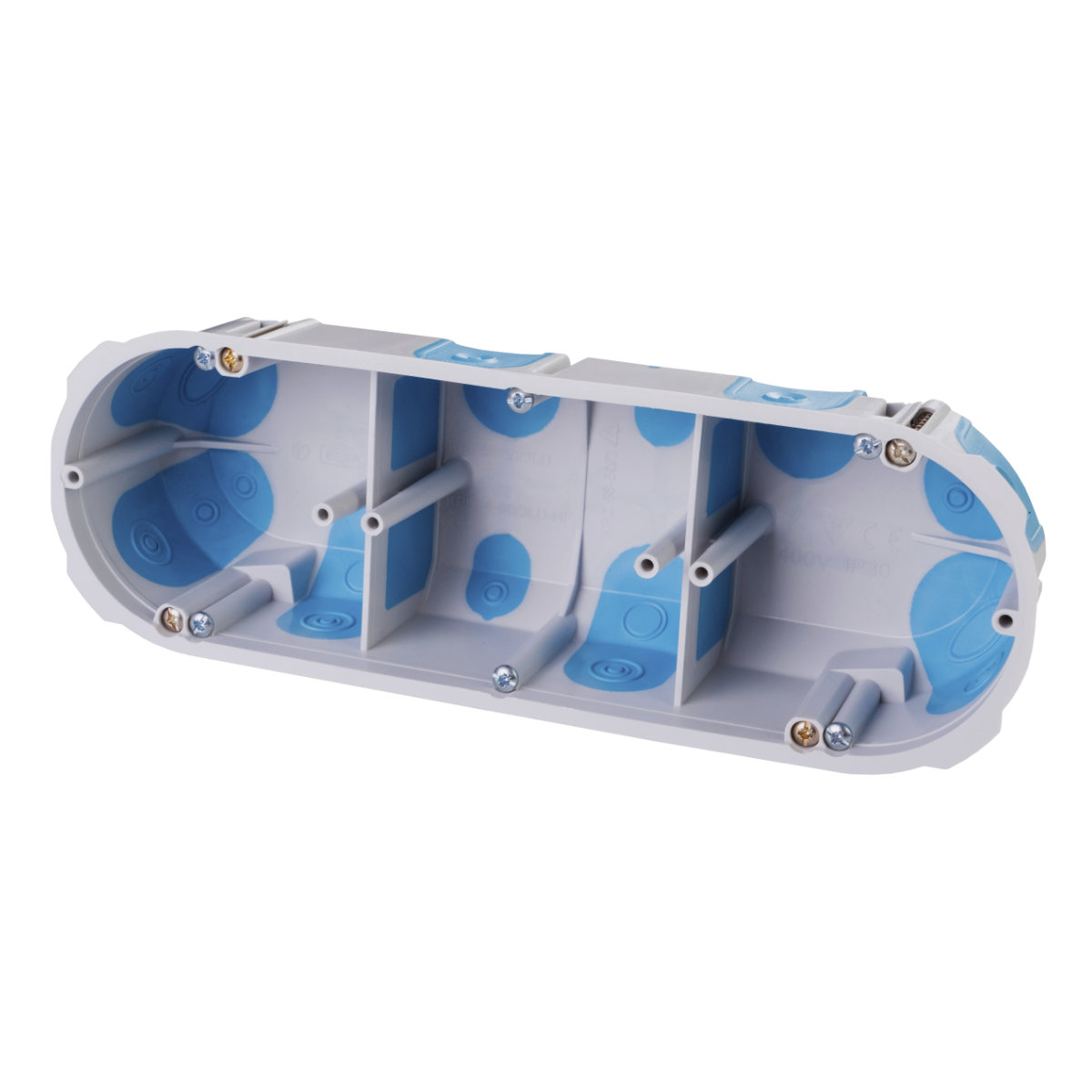

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
Cod Ean8595568937667
Cod vamal39259080
Greutate0,03 kg/pcs
Material fără halogeniyes
Material fără plumbyes
Izolare fonicăyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

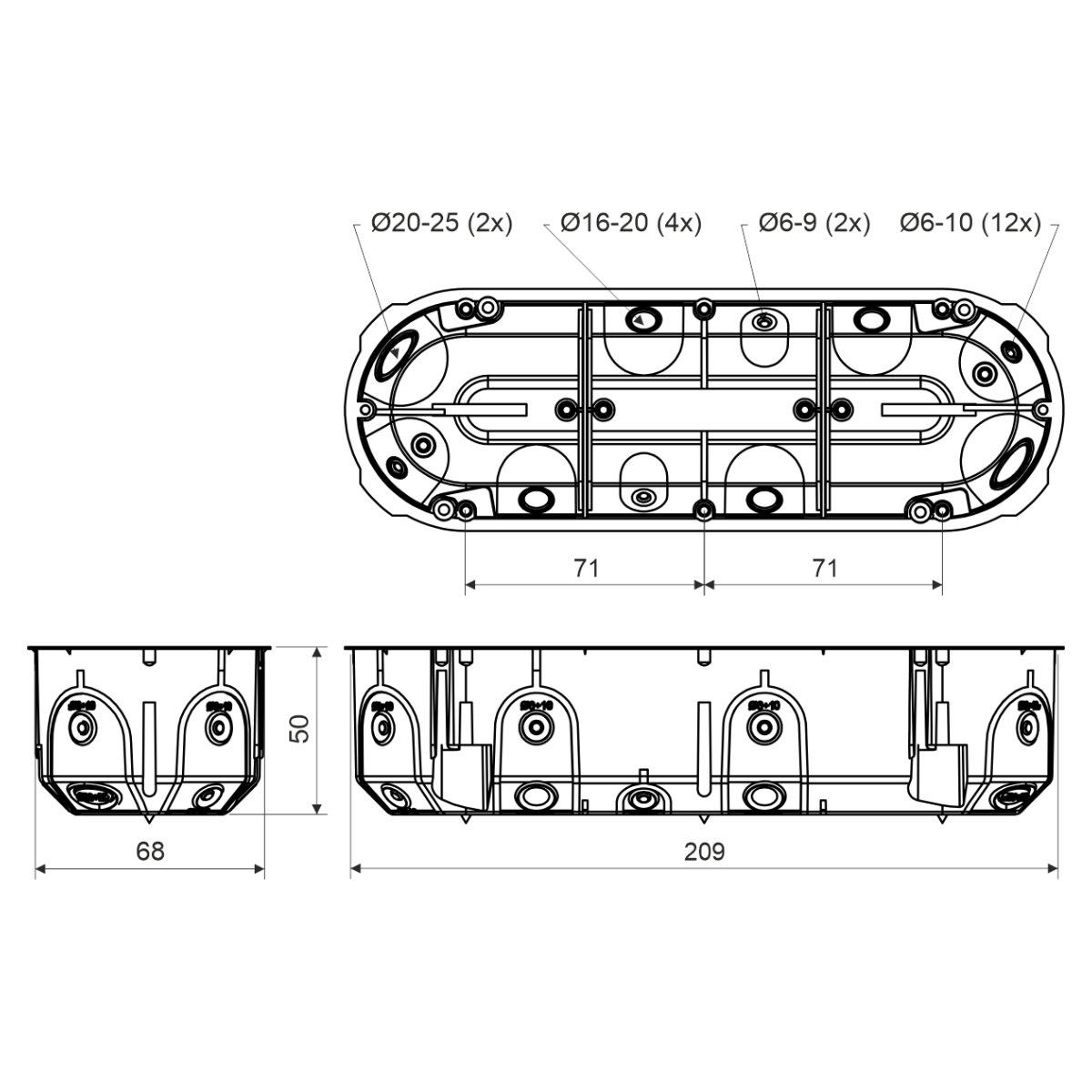

Lătime209 mm
Înăltime68 mm
Adâncime50 mm
Diametrul orificiului găurit (forat)68 mm
Recomandările producătorului
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Clasa de reacţie la foc a materialului de fondA1 - F
Distanța dintre 2 doze71 mm
Tipuri de protecțieIP 30
StandardeČSN EN 60 670-1
Descriere impachetare
the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box

Halogen-free design of triple double-injection hollow wall box for use in environments with increased need for protection of persons and property. For modern installations in composite frames. Distinctive rigidity and simple shape simplifies installation of devices. Inlet openings made of flexible material. Installation of the cable or pipe is done by pulling out the pre-moulded inlet on the flexible membranes and inserting the cable or pipe into the hole. The airtightness of the penetration is ensured even when the cable or pipe is inserted. Prevents air flow through the installation. Suitable for low-energy or passive houses. On the outside there are three pins marking the drilling points. The box meets the requirements for installations in soundproof walls with attenuation up to 69 dB. The mounting screws are double threaded for quick installation. Installation of the box in the wall opening is done by tightening the mounting screws. IP30 is met by a box fitted with a device with a rating greater than or equal to IP30. Protected by European industrial design. It is not necessary to countersink the edge of the plasterboard during installation.
