Cod Ean8595568931948
Cod vamal85363030
Greutate0.13 kg/pcs
MaterialPVC
Material fără plumbyes
Cu suto-stingere30 sec.
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

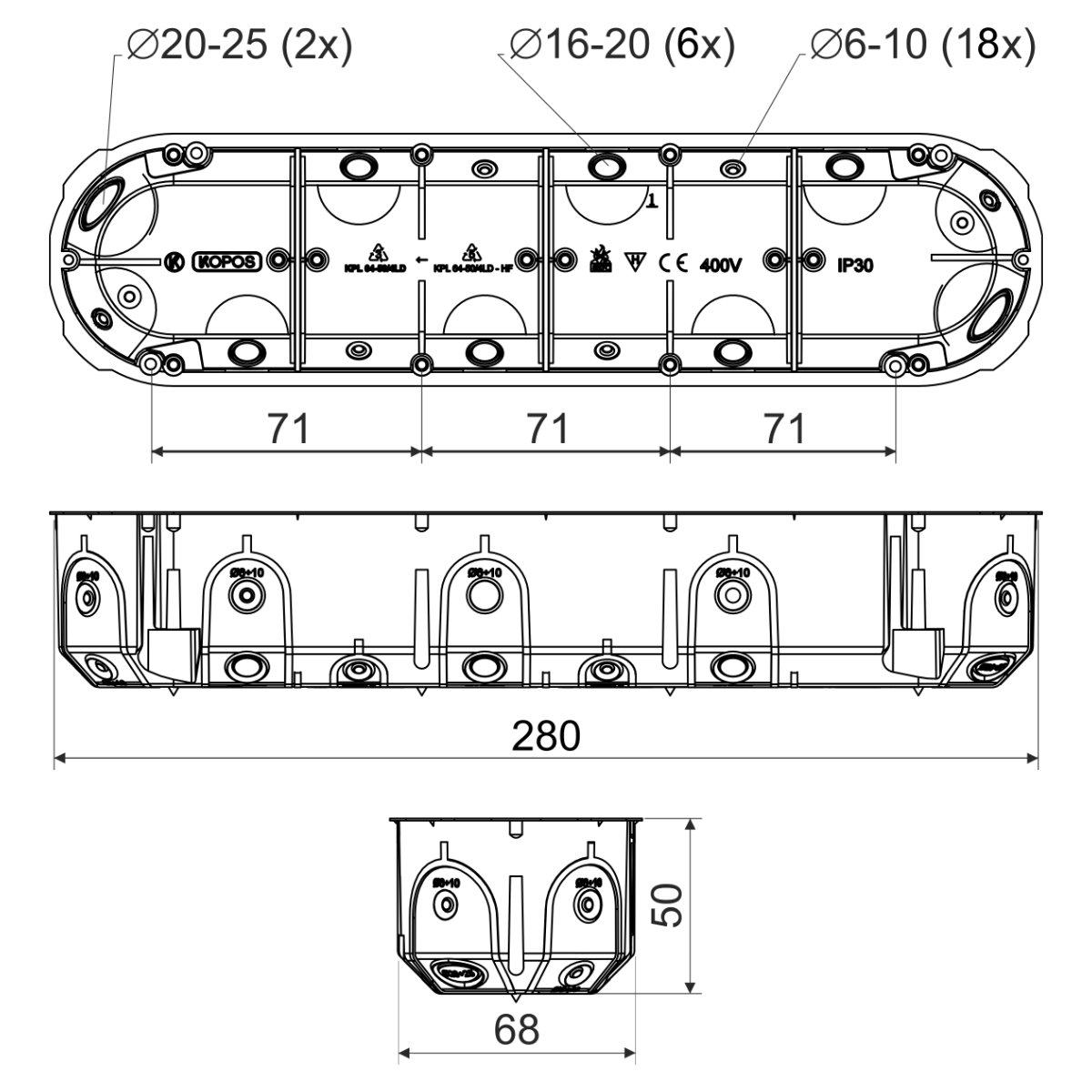

Lătime280 mm
Înăltime68 mm
Adâncime50 mm
Diametrul orificiului găurit (forat)68 mm
Recomandările producătorului
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Clasa de reacție la focA1 - F
Distanța dintre 2 doze71
StandardeČSN EN 60 670-1
Descriere impachetare
boxes fitted with screws for installation in plasterboard and instrument screws, boxes placed freely in the cardboard

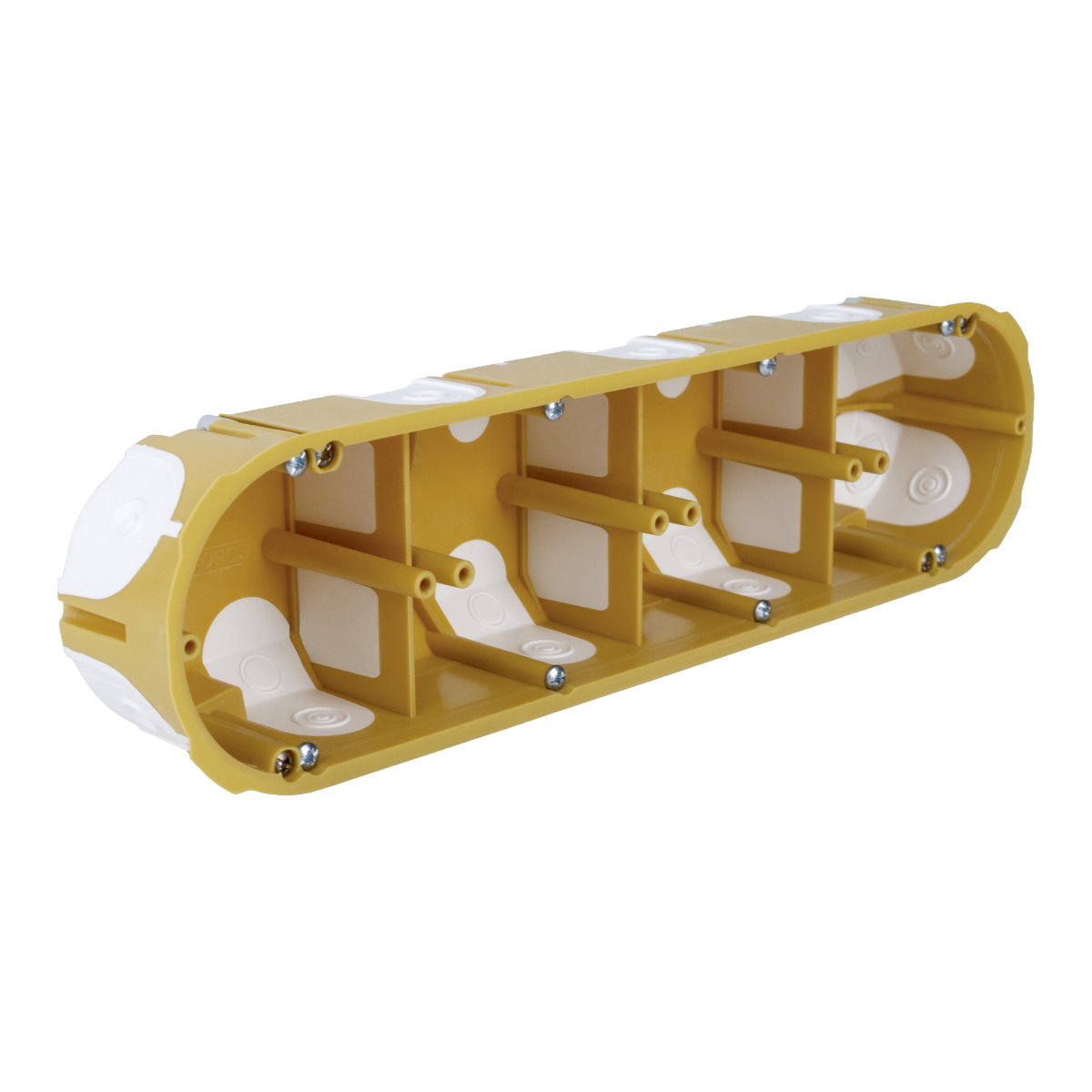

For modern installations in combined frames. Highly rigid design makes the device installation simpler. Inlet openings made of flexible material. Air proofed even with inserted cable or pipe. Prevents airflow through the installation. Suitable for low energy and passive houses. Four tips on the external side indicate the drilling points. Mounting bolts feature double-threaded design for quick installation. Installation box in the hole is made by tightening mounting screws. Cable installation is done by removing (breaking) pre-pressed membrane inlet and followed by inserting the cable possibly pipe. Protected by European industrial design. The IP30 protection a box fitted with an instrument with protection a higher or equal IP30 protection. When mounting, it is not necessary to countersink the plasterboard edge.
