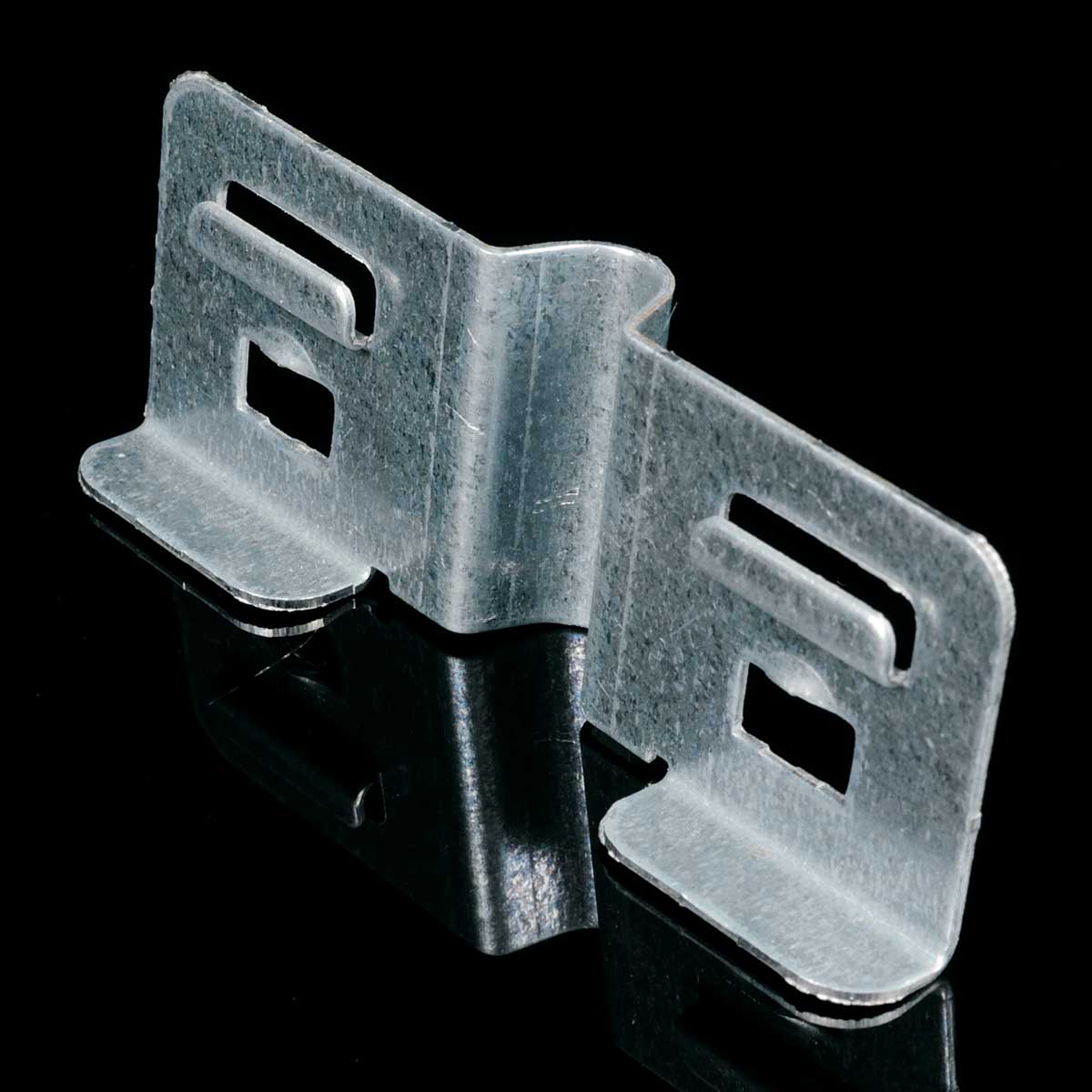

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
ZVB_EN
| Cod Ean | 8595568915085 |
| Cod vamal | 73269098 |
| Greutate | 0,02 kg/pcs |
| Acoperire de suprafată | Pre-Galvanized |
| Rezistența la temperatură | -50 - 150 °C |

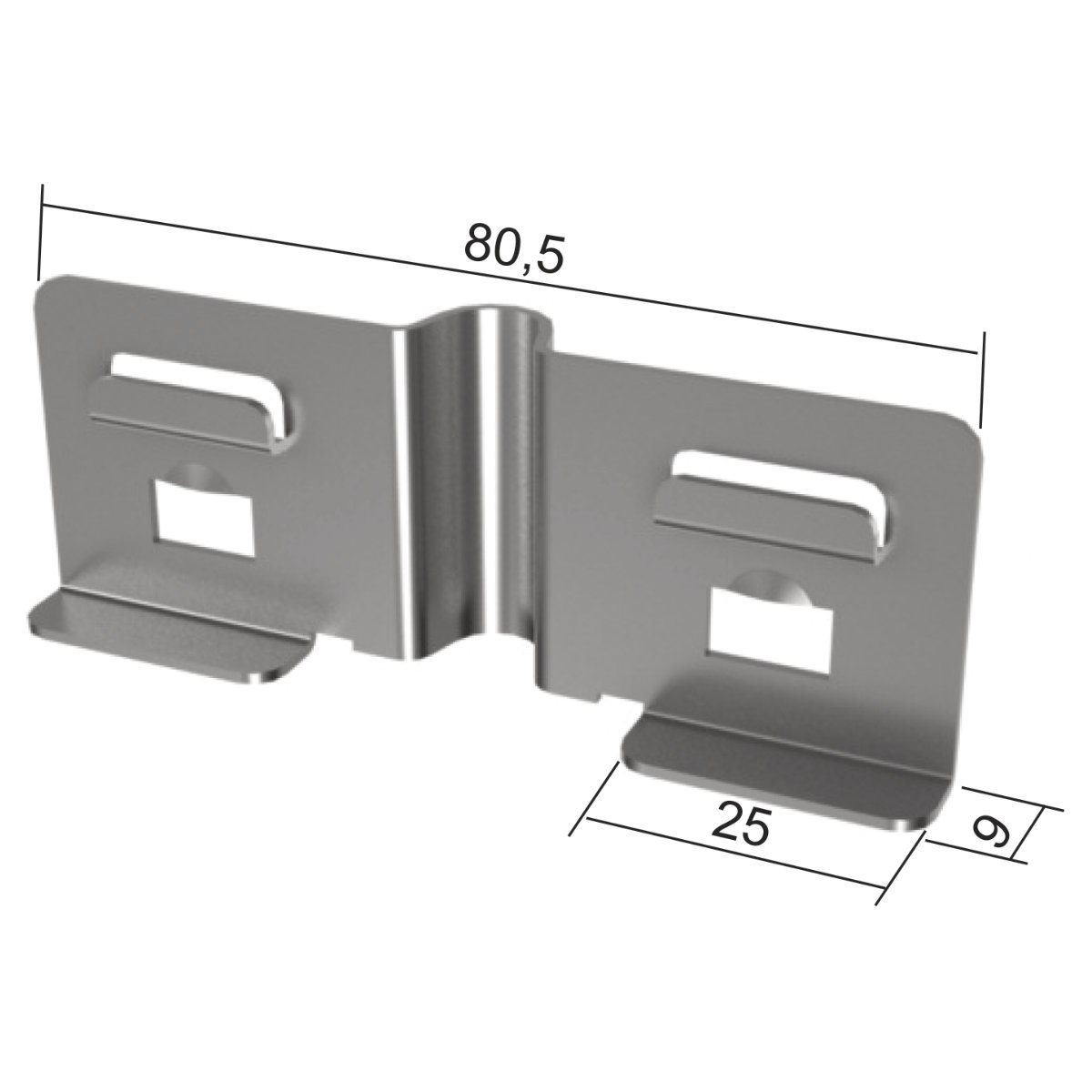

| Înăltime | 30 mm |
| Lungime | 80 mm |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Grosimea foii de tablă | 1 mm |
| Încarcatura maximă | 60 kg |

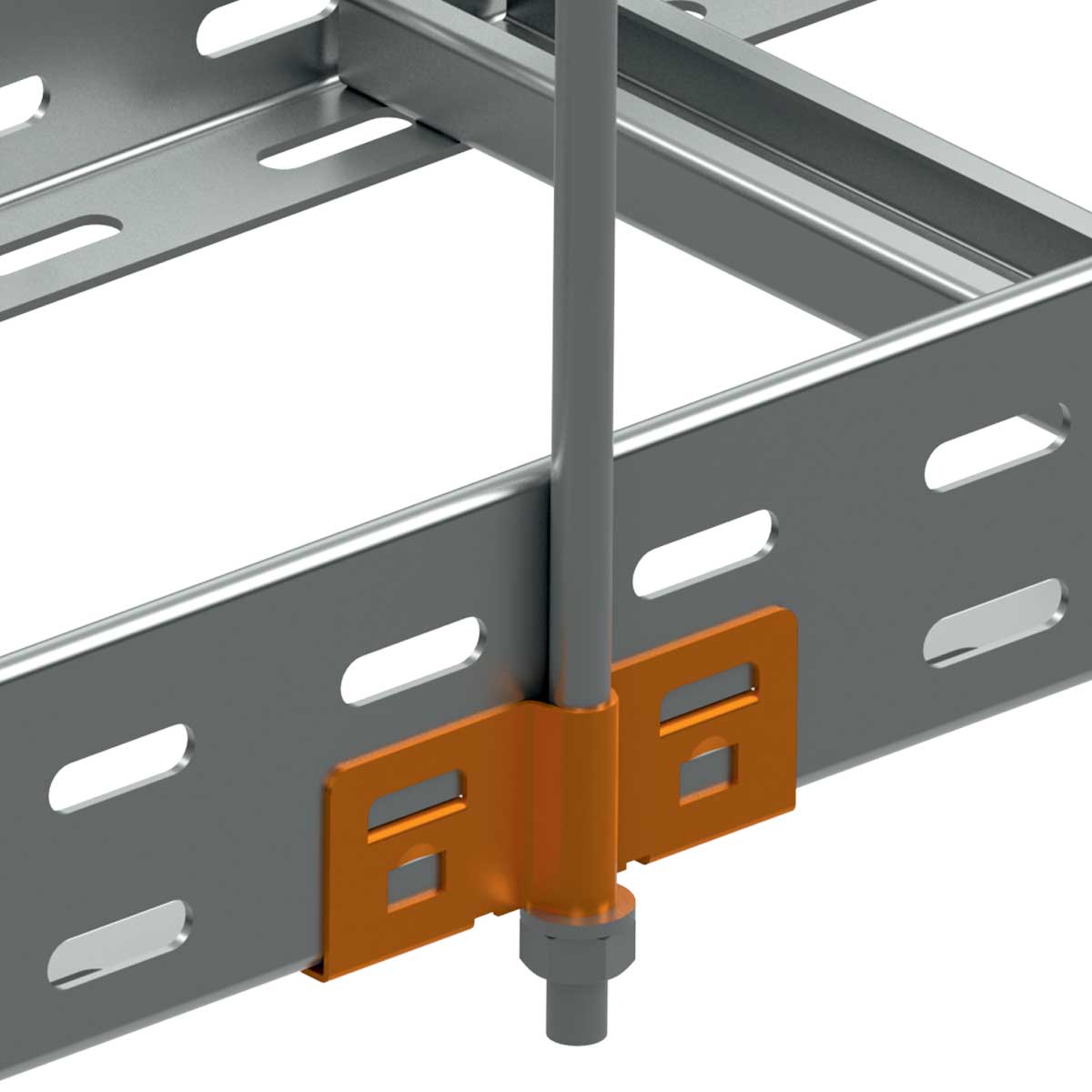

The outer side hinge is designed for hanging a cable route running through cable ladders on a ZT 8 threaded rod. the hinge is fixed to the route by snapping the studs on the hinge into the ladder sidewall. The threaded rod is fixed using a PD 8 washer and an M 8 nut. The hinge is designed for cable ladders or for cable trays made from 1.5 mm sheet metal. Hinges are supplied individually. 2 hinges are needed to create one suspension point. The product is protected by the utility model.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
