Cod Ean8595057659452
Cod vamal73089059
Greutate5,06 kg/pcs
Acoperire de suprafatăHot Dip Galvanized
Rezistența la temperatură-50 - 150 °C
Funcționalitate în focP90-R, E90, PS90
StandardeČSN EN 61537
Standardele cu privire lade rezistența la focČSN 73 0895, DIN 4102-12, STN 92 0205
Grosimea foii de tablă1 mm

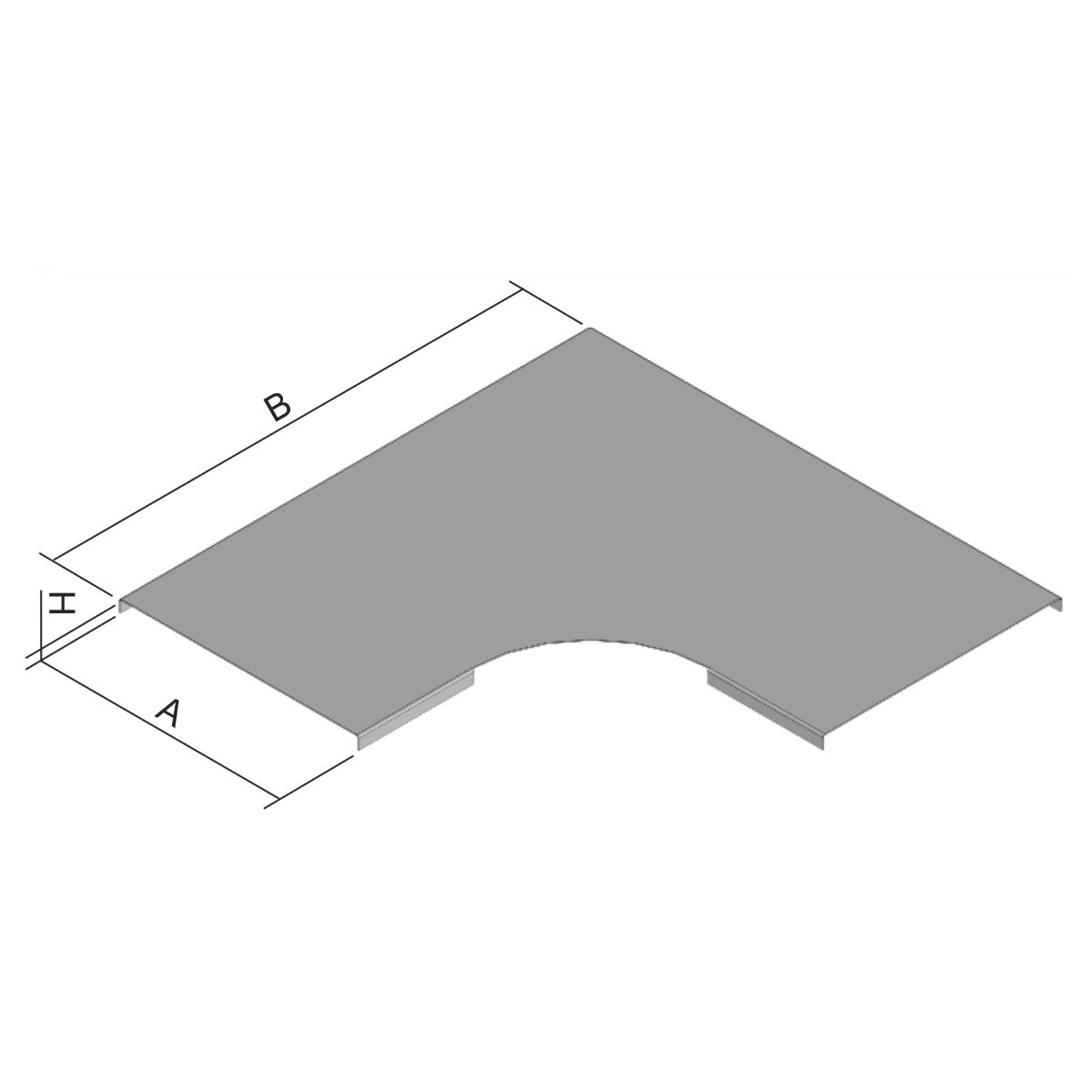

Dimensiunea A604 mm
Dimensiunea B804 mm
Dimensiunea H15 mm
Pentru lățimea jgheabului de cabluri600 mm

To fix the cover use 6 pcs of cover fixutres VU. The outer right angle of the side walls is replaced by skewed cut.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
