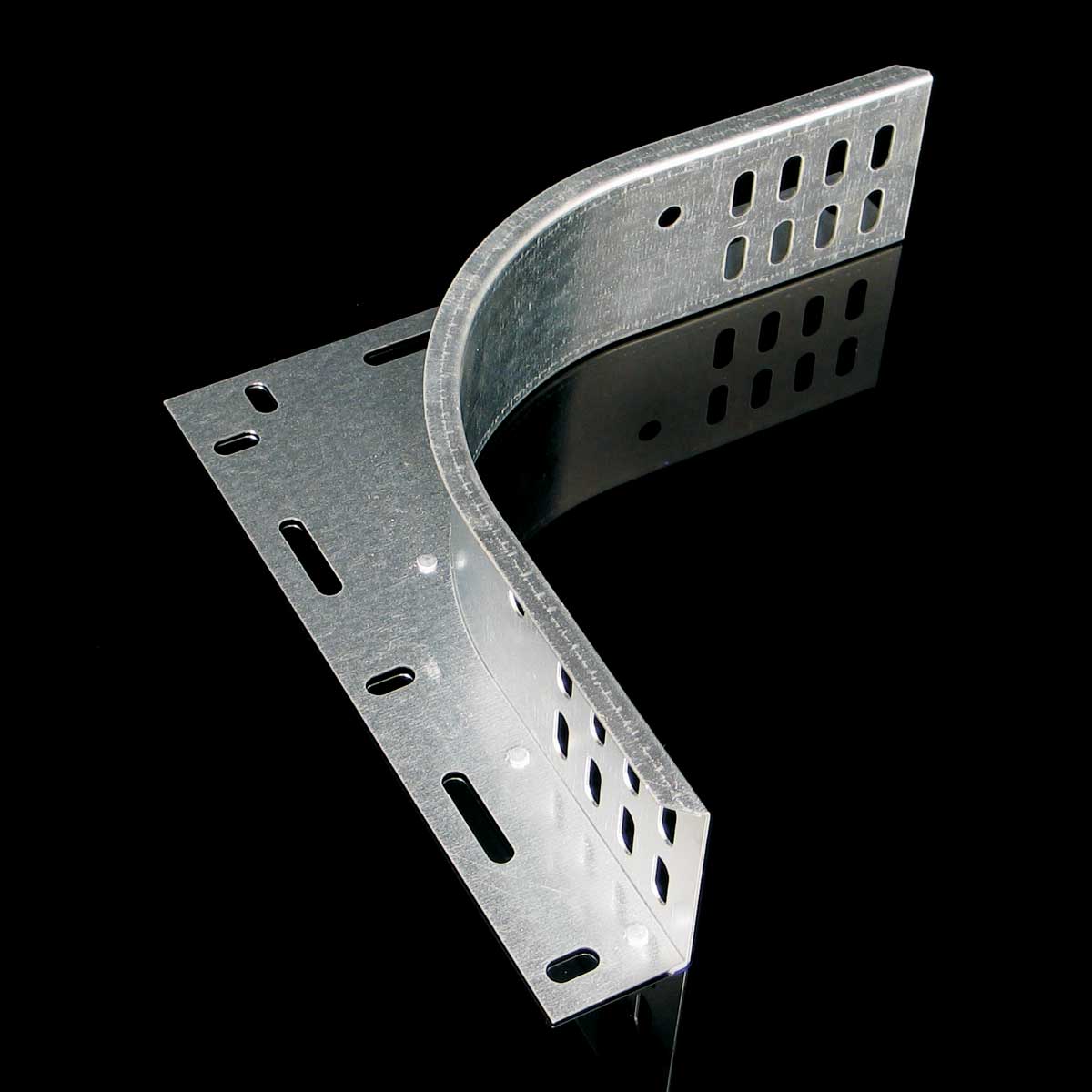

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
SU_PO_EN
| Cod Ean | 8595057628380 |
| Cod vamal | 73089059 |
| Greutate | 0,32 kg/pcs |
| Acoperire de suprafată | Pre-Galvanized |
| Rezistența la temperatură | -50 - 150 °C |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standarde | ČSN EN 61537 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Grosimea foii de tablă | 1 mm |
| Cantitatea de şuruburi pentru instalare | 8 |

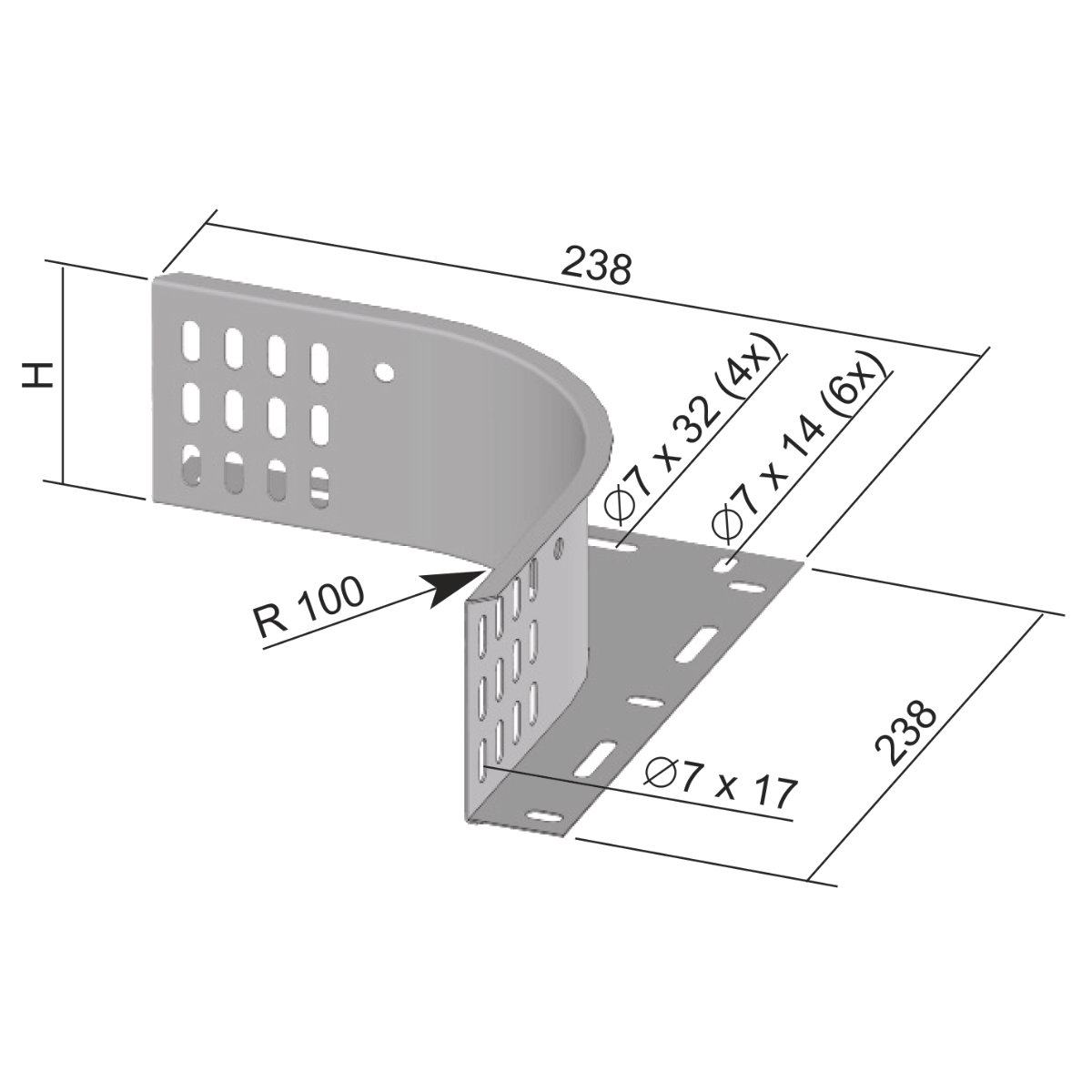

| Dimensiunea H | 65 mm |
| Pentru inălțimea jgheabului de cabluri | 60 mm |

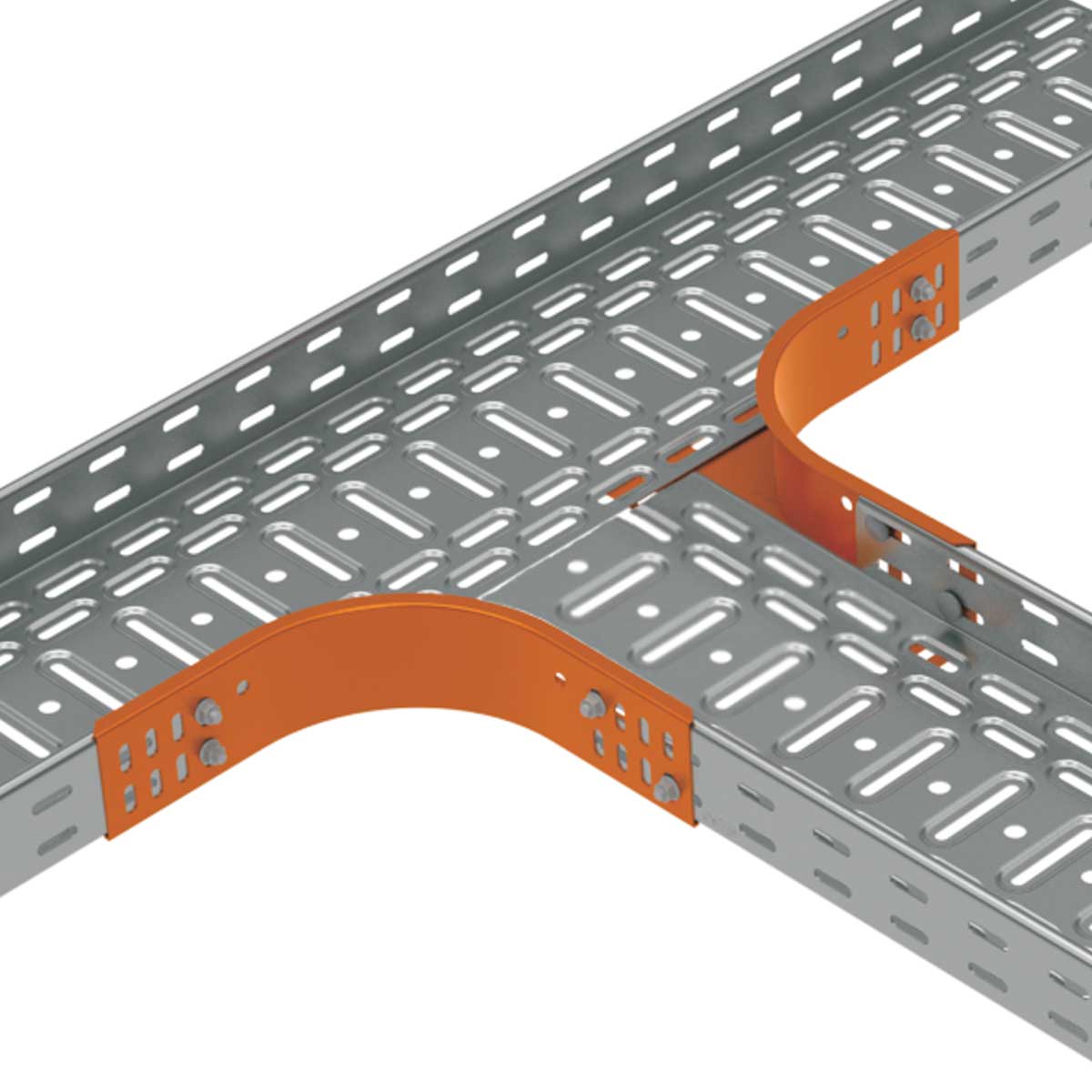

It is used for making an additional branching use an unequal T-piece or cross. Advantage of this using is availability to choose bending tray with any width. The reduction piece is delivered in singles, must be used 2 pieces for installation. The connection is performed using the bolts NSM 6X10. The cover of a horizontal VOH branch can be used to cover routes with a reduction piece.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
