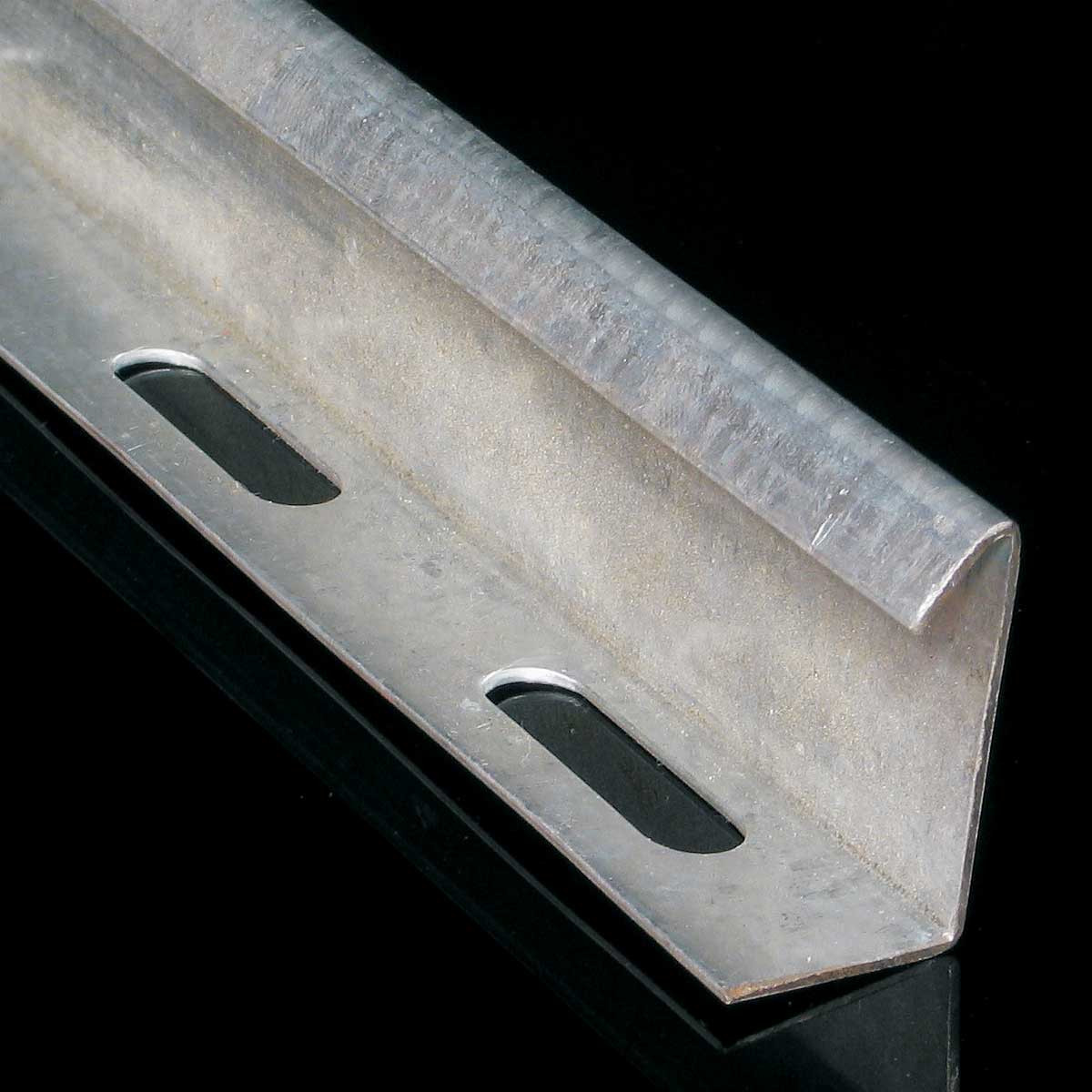

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
P_EN
| Cod Ean | 8595057639515 |
| Cod vamal | 72169180 |
| Greutate | 0,34 kg/m |
| Acoperire de suprafată | Pre-Galvanized |
| Rezistența la temperatură | -50 - 150 °C |
| Lungime | 2000 mm |
| Standarde | ČSN EN 61537 |
| Grosimea foii de tablă | 0,8 mm |

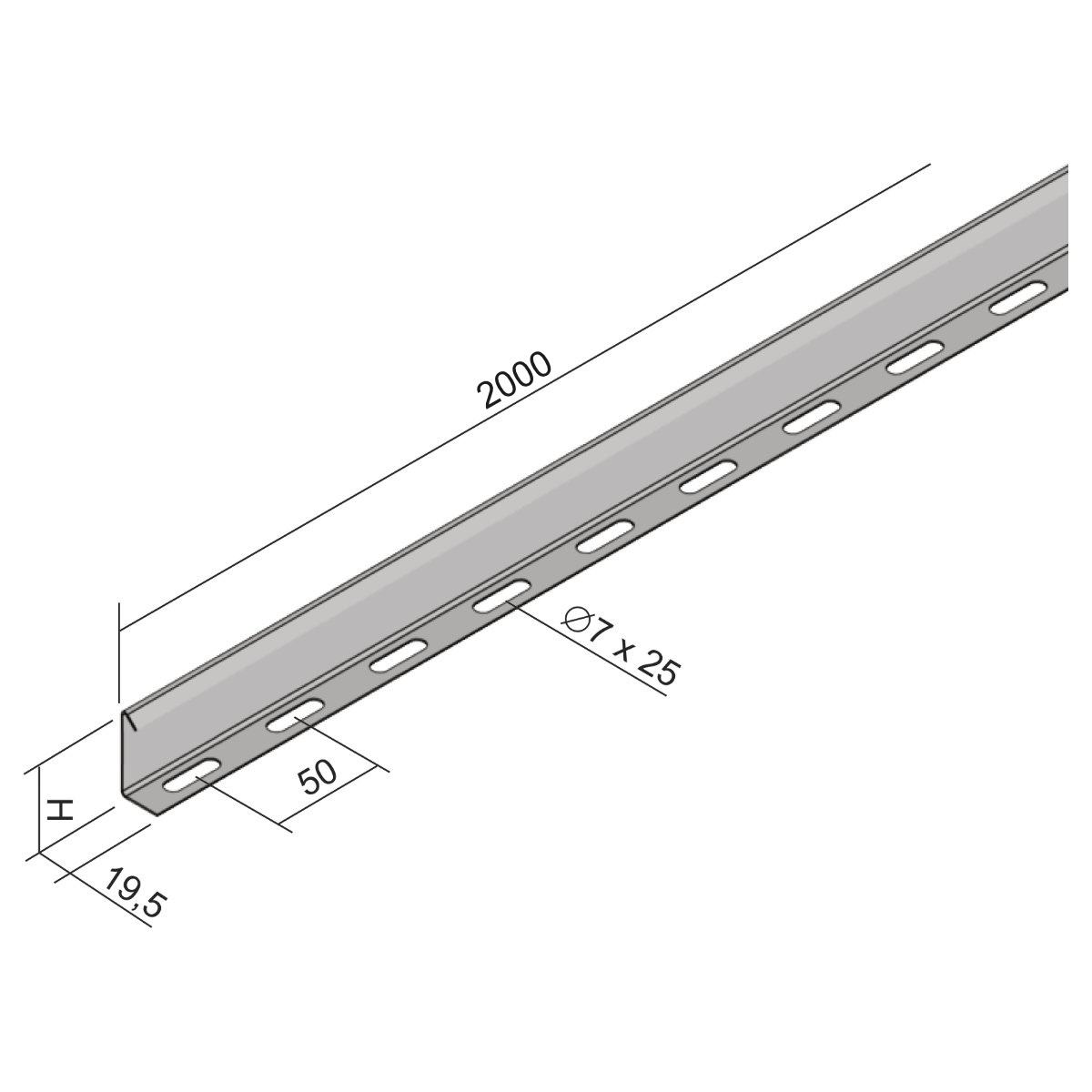

| Dimensiunea H | 29 mm |
| Pentru inălțimea jgheabului de cabluri | 35 mm |

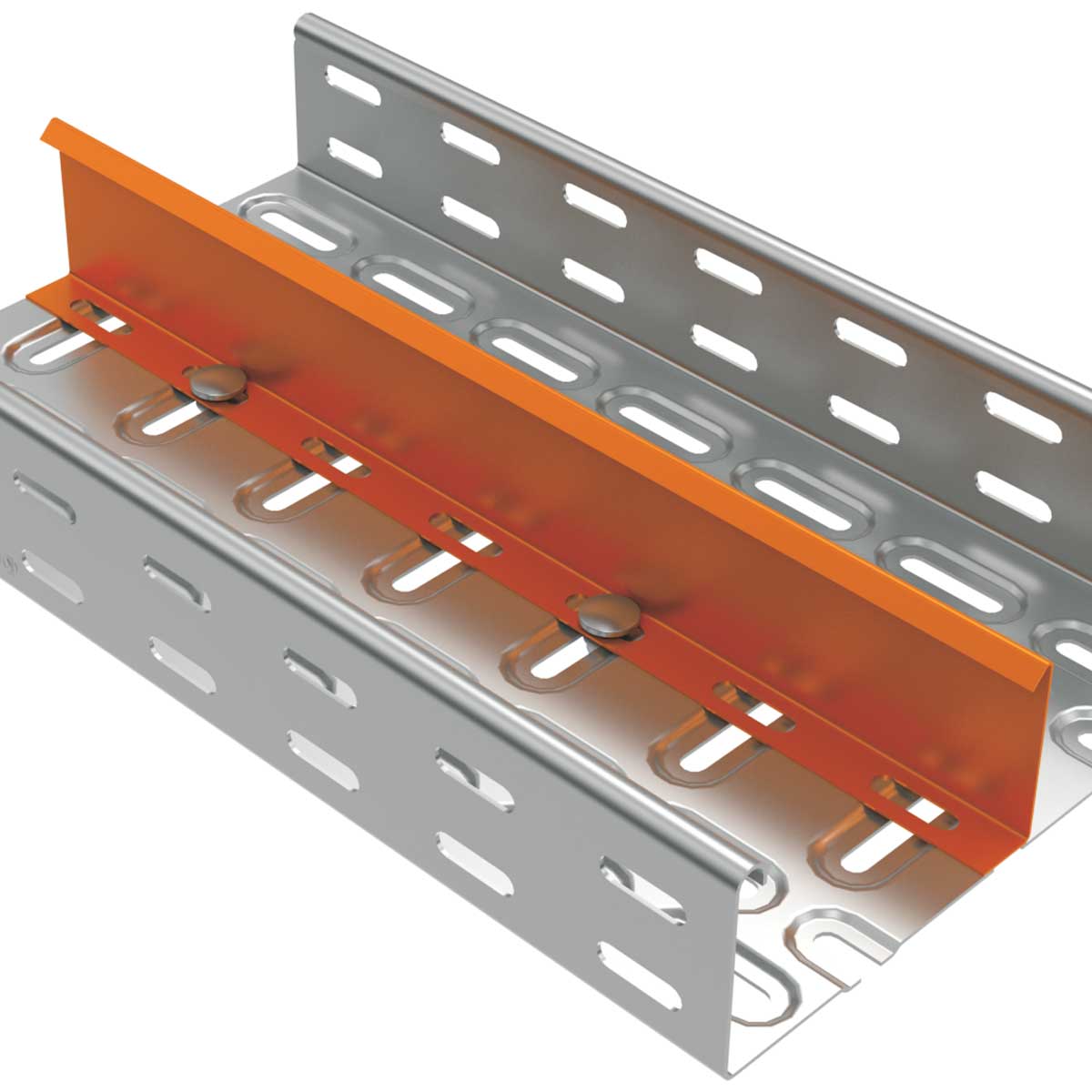

The connection is performed using the bolts NSM 6X10, 2 pcs per 1 meter. The partition is used to separate cables in cable trays. In term of electrical compatibility, it is also used for dividing several types of lines. It is recommended to use covers for this type of installation and make the covered and shielded room.
