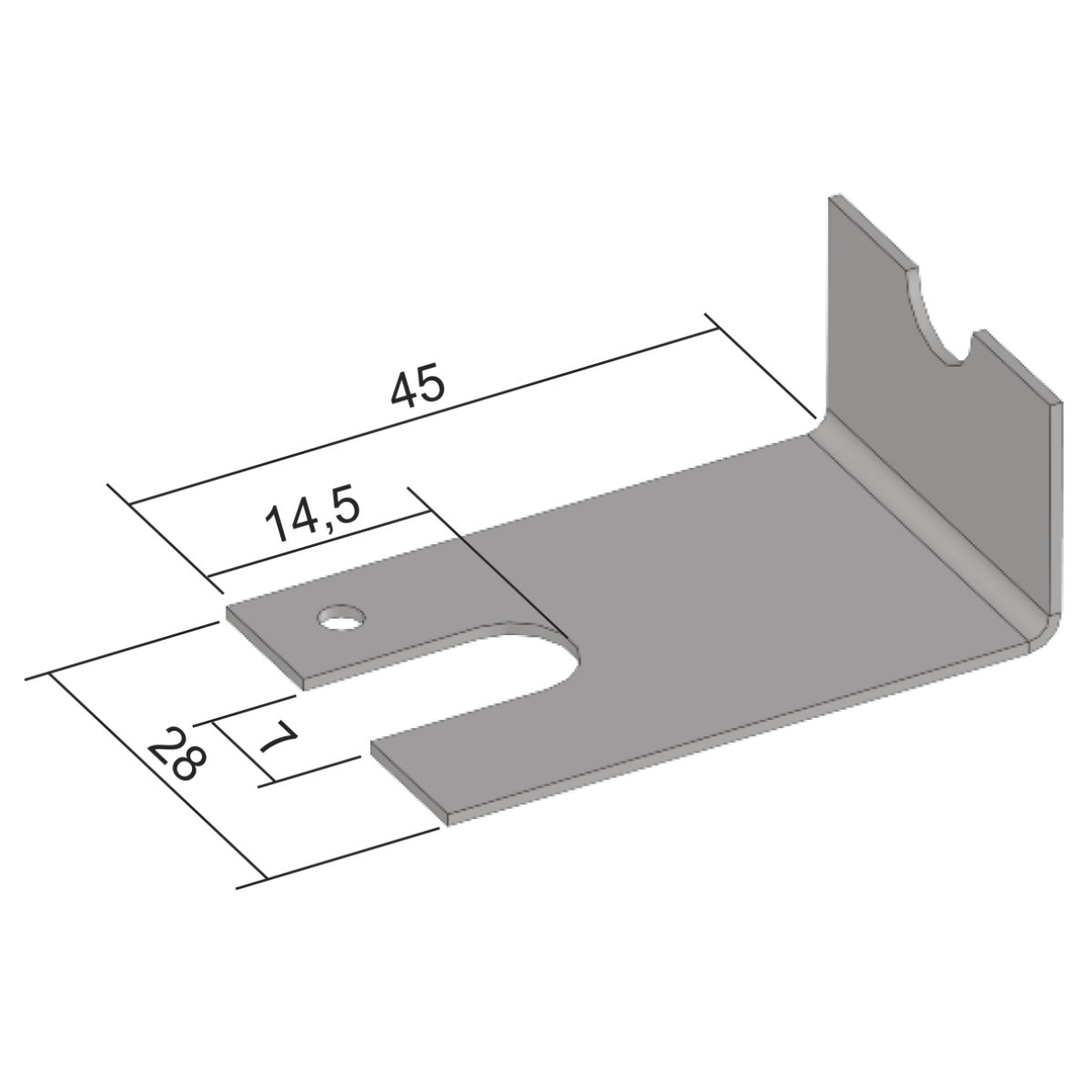

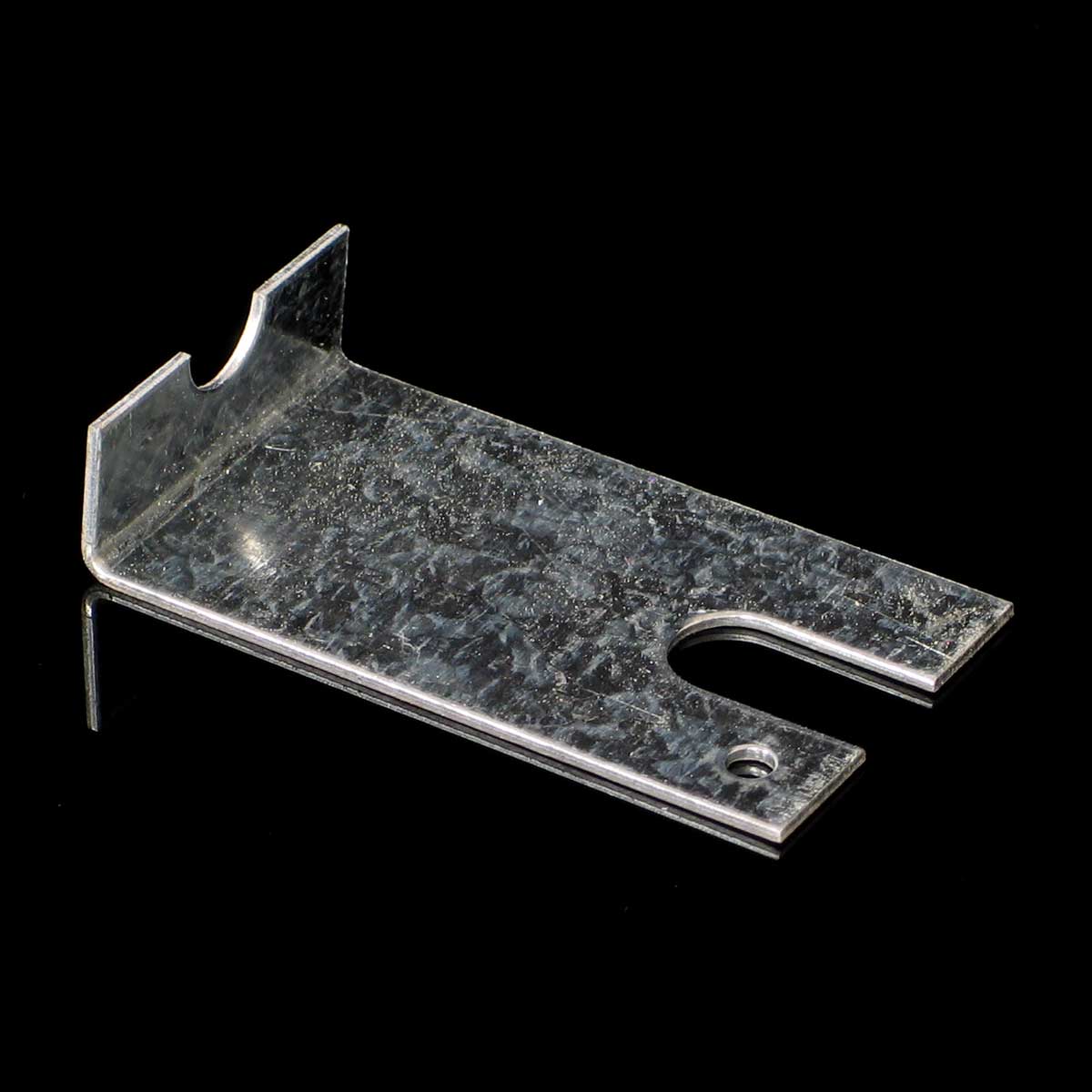

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
NUV_EN
| Cod Ean | 8595057654464 |
| Cod vamal | 73269098 |
| Greutate | 0,01 kg/pcs |
| Acoperire de suprafată | Pre-Galvanized |
| Rezistența la temperatură | -50 - 150 °C |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standarde | ČSN EN 61537 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |

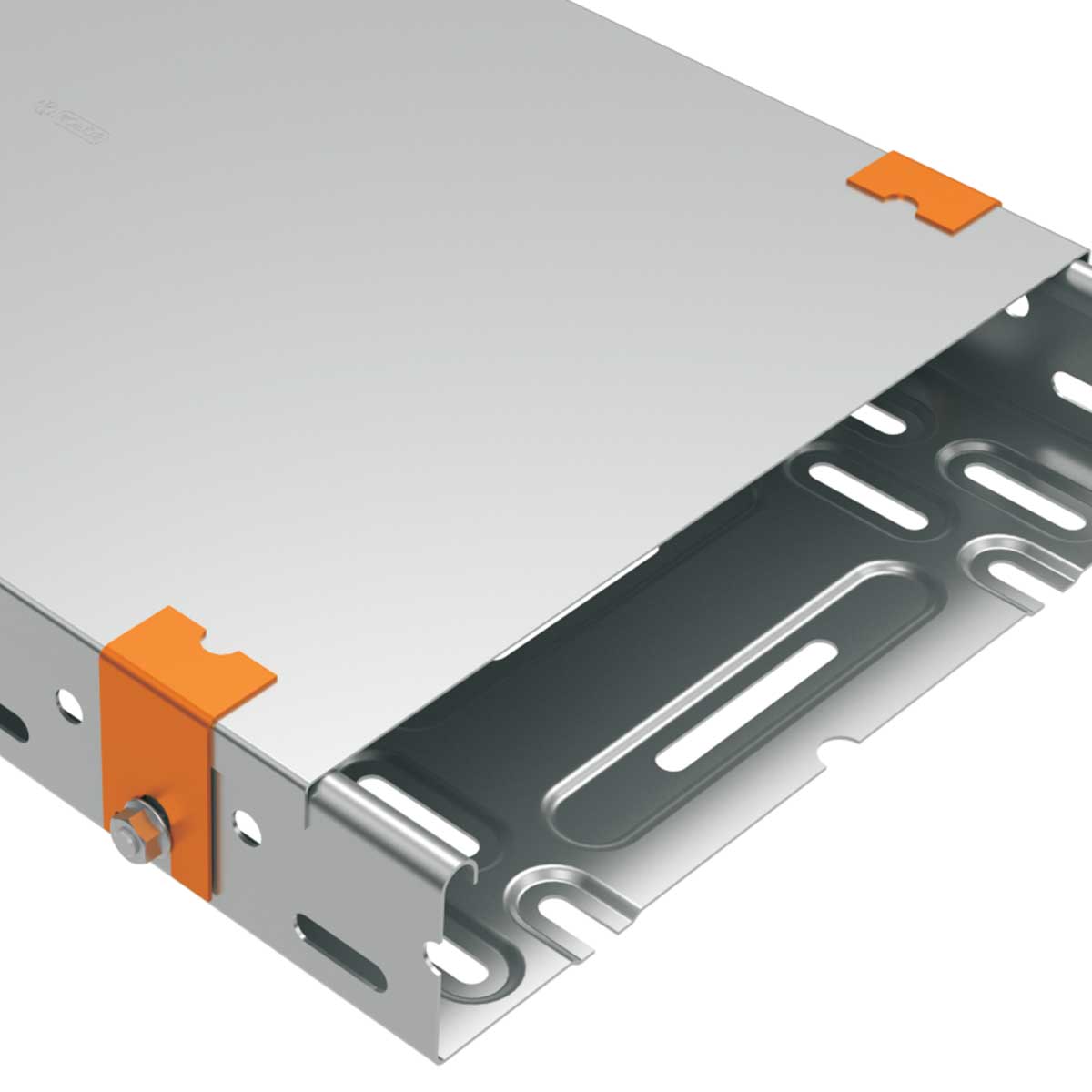

Serves for the attaching of the cover to the tray using a bolt. With NKZIN non-perforated trays the lid must be attached at the point where the tray connects to the accessories. In this case these screws are used. With perforated trays the screws for attaching the anchors along the cable tray can be used. For this type of installation, the NSM 6X10 screws must be ordered separately.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
