NPZ_PO_EN
| Cod Ean | 8595057669574 |
| Cod vamal | 72169180 |
| Greutate | 0,64 kg/m |
| Acoperire de suprafată | Hot Dip Galvanized |
| Rezistența la temperatură | -50 - 150 °C |

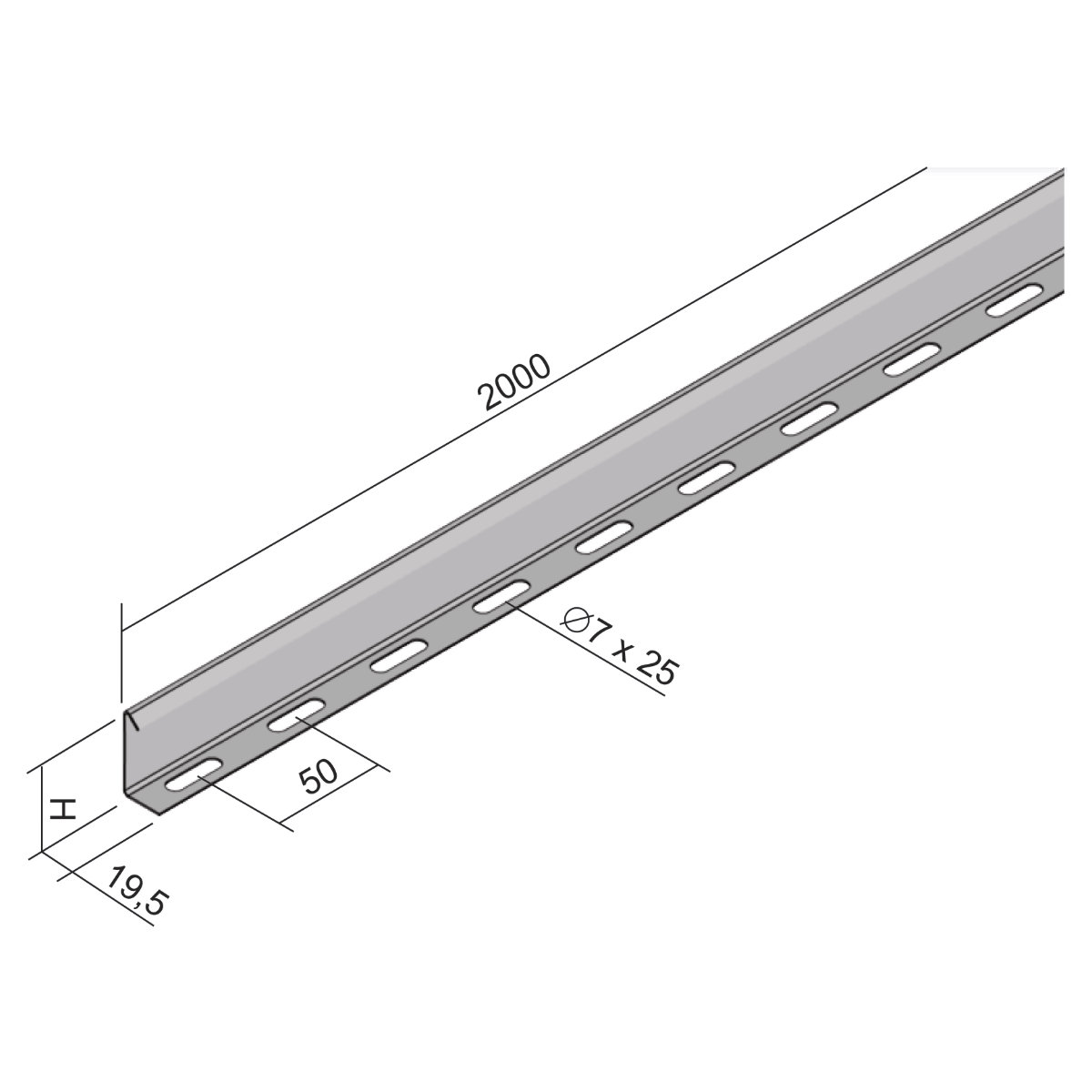

| Lungime | 2000 mm |
| Standarde | ČSN EN 61537 |
| Grosimea foii de tablă | 1 mm |
| Cantitatea de şuruburi pentru instalare | 4 |
| Dimensiunea H | 44 mm |
| Pentru lățimea jgheabului de cabluri | 62 - 125 mm |
| Pentru inălțimea jgheabului de cabluri | 50 mm |

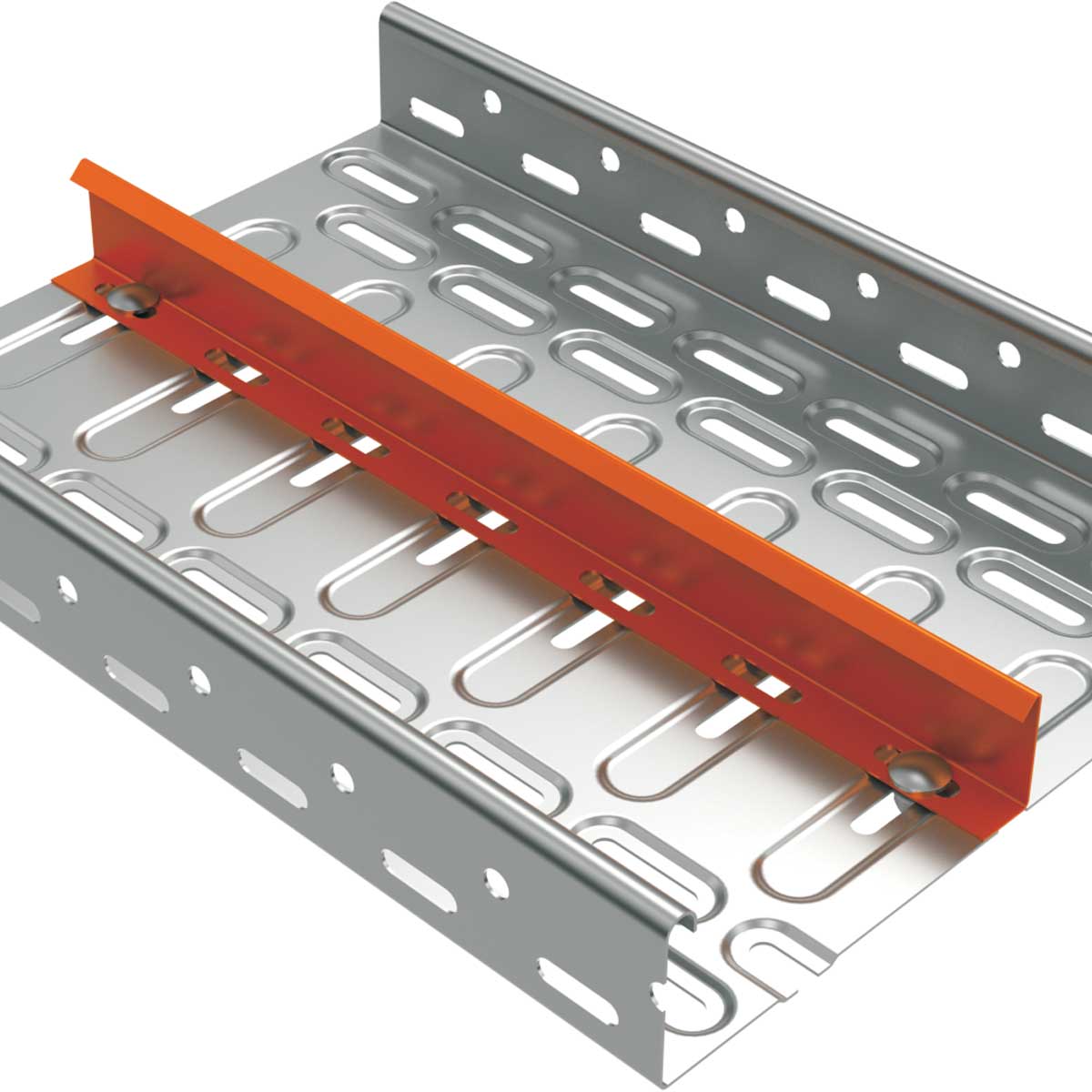

The fixing of the partition is carried out by bolts NSM 6X10. The partition serves to spatial separation of cables and ducting of different networks and functions. As well as it serves to separation of particular kinds of ducting from the viewpoint of electric compatibility. For this purpose there is recommended to use the lid and by this to create the closed shielded space.
