NP_30X15X1.20_EN
| Cod Ean | 8595568930316 |
| Cod vamal | 72169180 |
| Greutate | 1,15 kg/m |
| Acoperire de suprafată | Pre-Galvanized |
| Rezistența la temperatură | -50 - 150 °C |
| Lungime | 2000 mm |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standarde | ČSN EN 61537 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Grosimea foii de tablă | 1,2 mm |

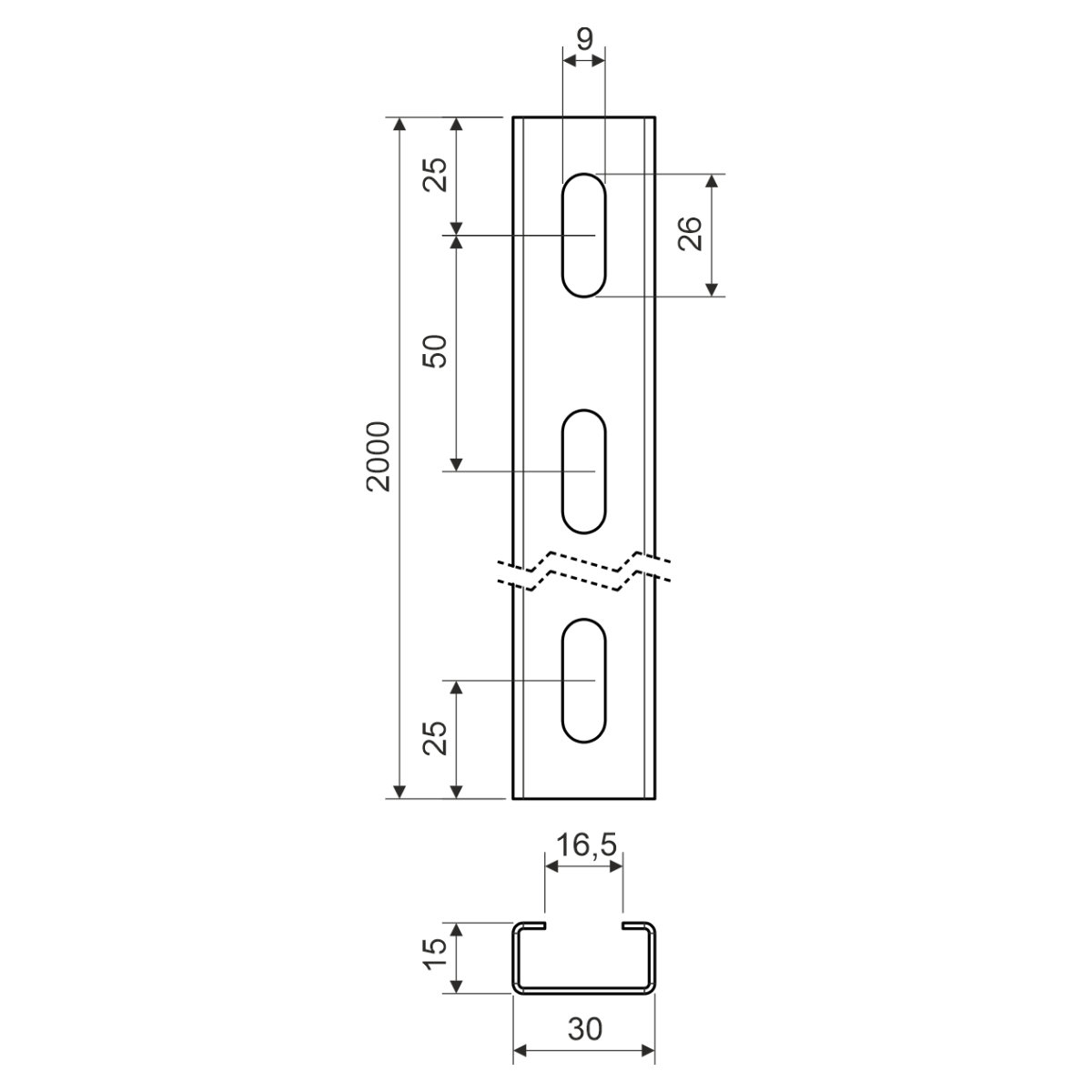

| Dimensiunea A | 2000 mm |
| Dimensiunea B | 30 mm |
| Dimensiunea C | 15 mm |
| Orificii | 9x26 mm |

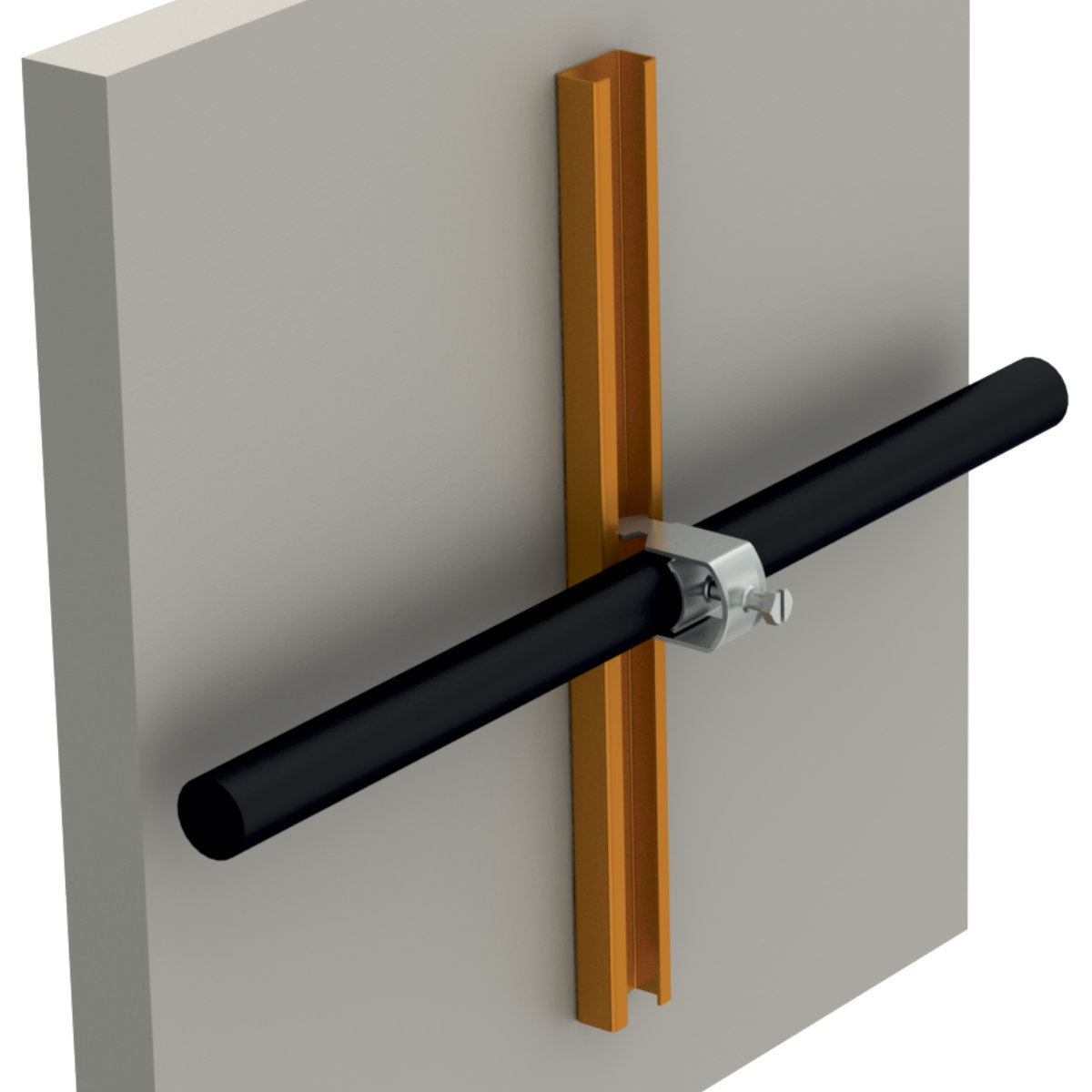

It is used for mounting of cable clamps and thereby for the anchoring of the cables to the ceiling or to the wall.
Note for system with maintained functionality in fire:
Suitable for creating of beam for cable traces to be carried on thread rods. The load bearing profile is fixed by using two threaded rods ZT 8 + nut M 8 + washer PD 8.
You find more information in the catalogue Systems with maintained functionality in fire.
