Cod Ean8595057628434
Cod vamal83024190
Greutate0,65 kg/pcs
Acoperire de suprafatăPre-Galvanized
Funcționalitate în focP90-R, E90, PS90
Standardele cu privire lade rezistența la focČSN 73 0895, DIN 4102-12, STN 92 0205
Încarcatura maximă200 kg

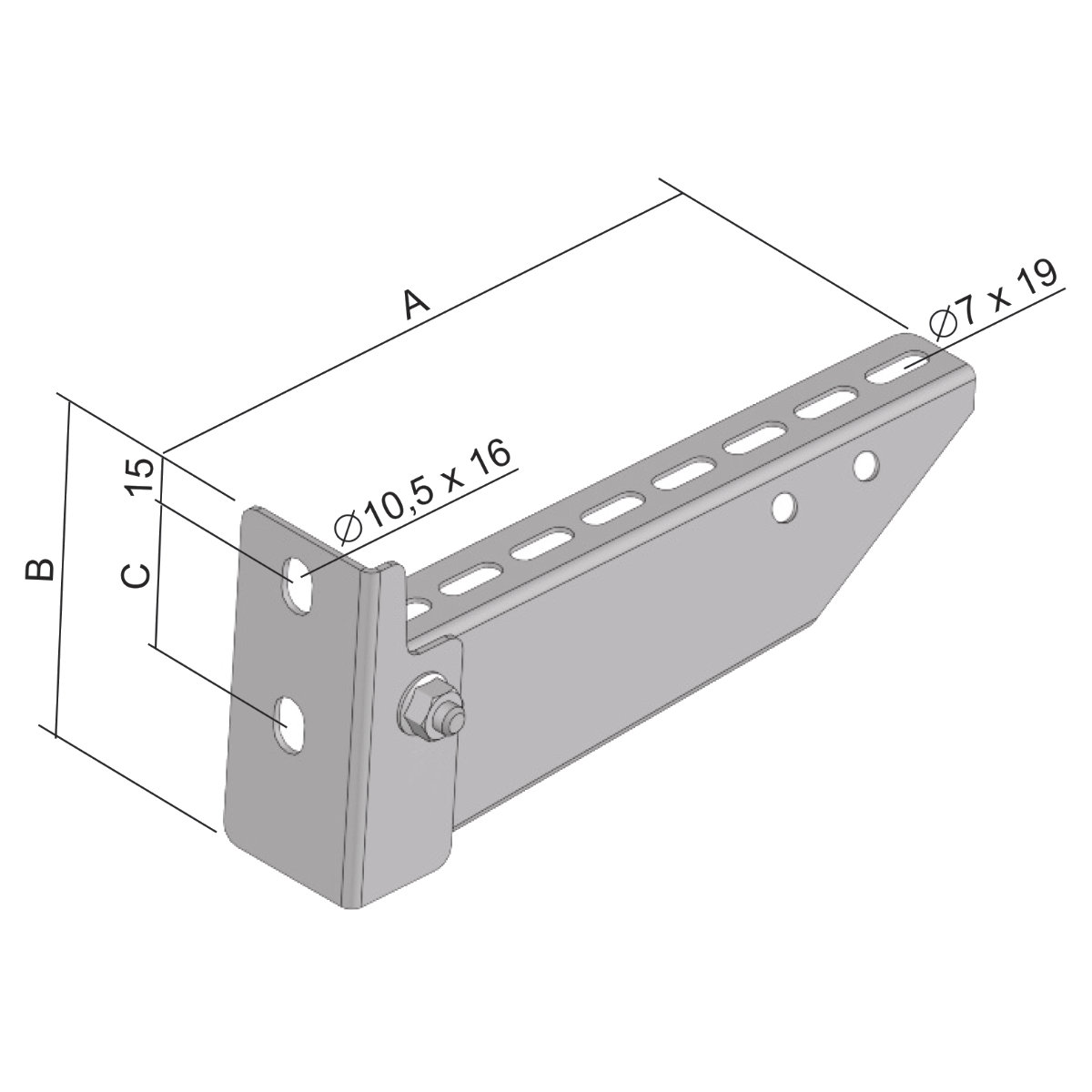

Dimensiunea A318 mm
Dimensiunea B120 mm
Dimensiunea C60 mm
Pentru lățimea jgheabului de cabluri300 mm
Pentru inălțimea jgheabului de cabluri35 - 110 mm

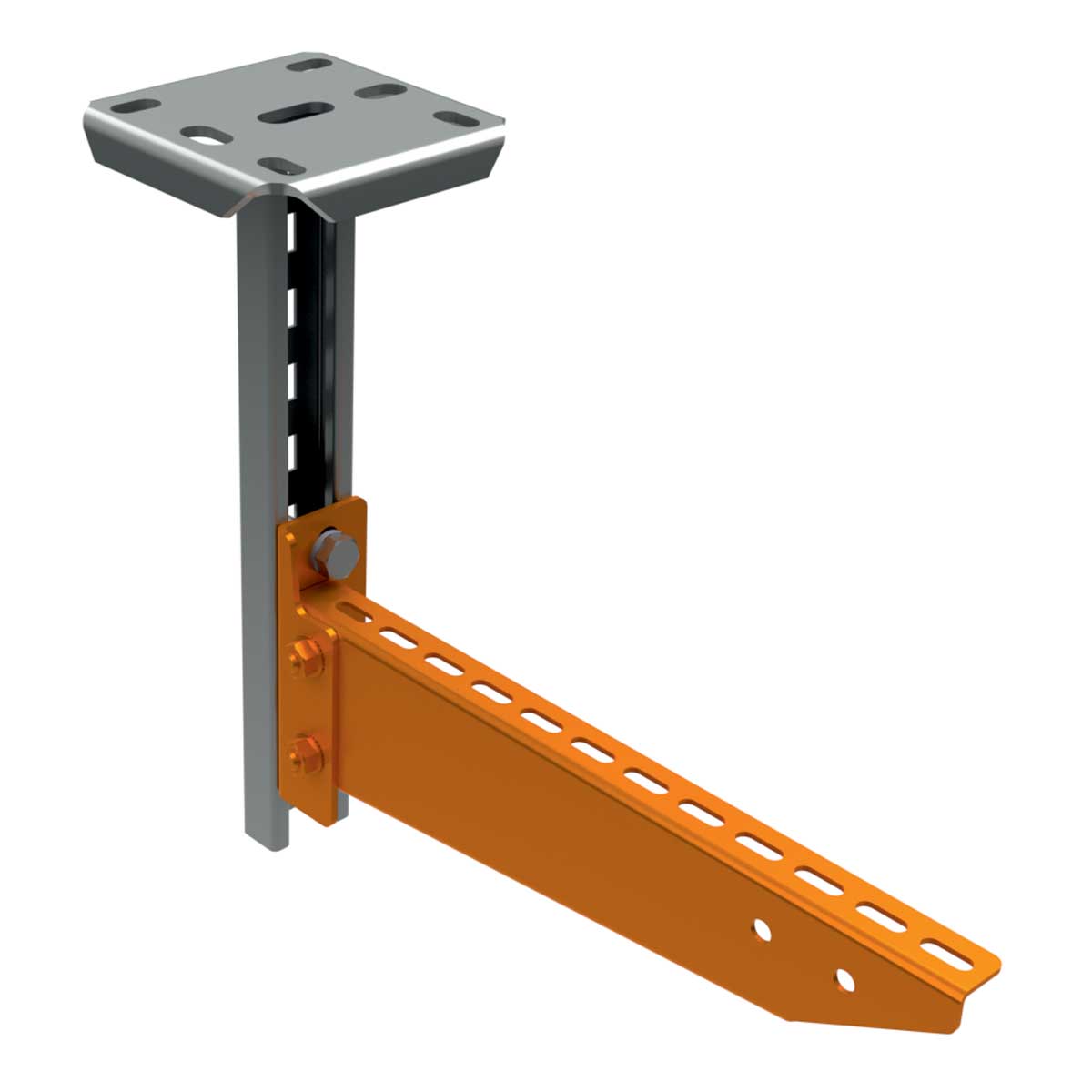

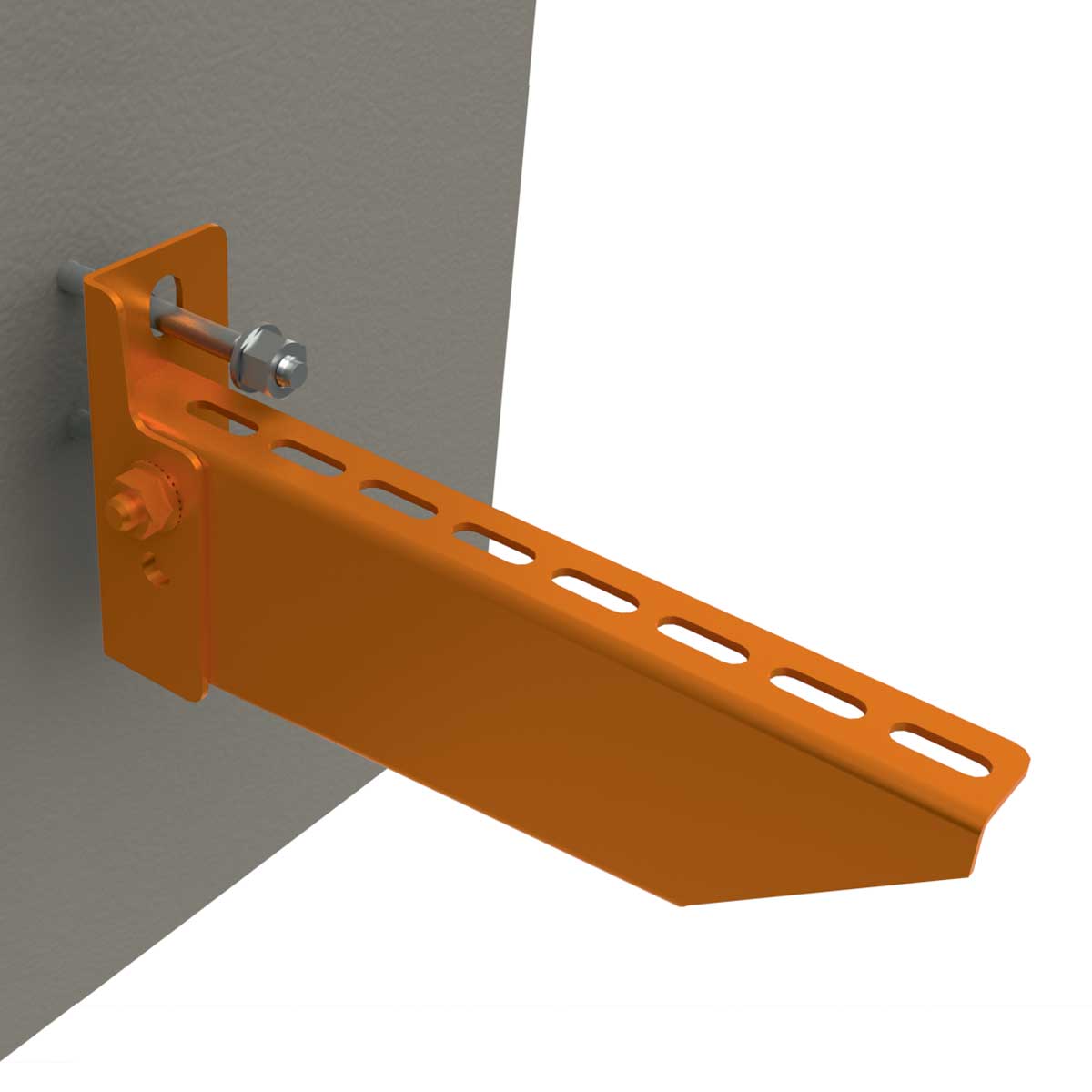

The holder is designed to be mounted on a wall or a ceiling profile. Fix to the wall using 2 Ø 8 mm anchors. For assembly to the ceiling profile SPL and SPS there are used the sliding nuts PM 41 M 10 together with the bolts S 10X20 (2 pcs). Fix to the celling profile SPLN, SPSN or SPU using bolts S 10X20, nuts M 10 and washer PD 10. Cable tray attaching to the bracket DS is carried out by bolts NSM 6X10.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
