Cod Ean8595568904218
Cod vamal73269098
Greutate1,05 kg/pcs
Acoperire de suprafatăPre-Galvanized
Rezistența la temperatură-50 - 150 °C
StandardeČSN EN 61537
Grosimea foii de tablă2 mm
Cantitatea de şuruburi pentru instalare8

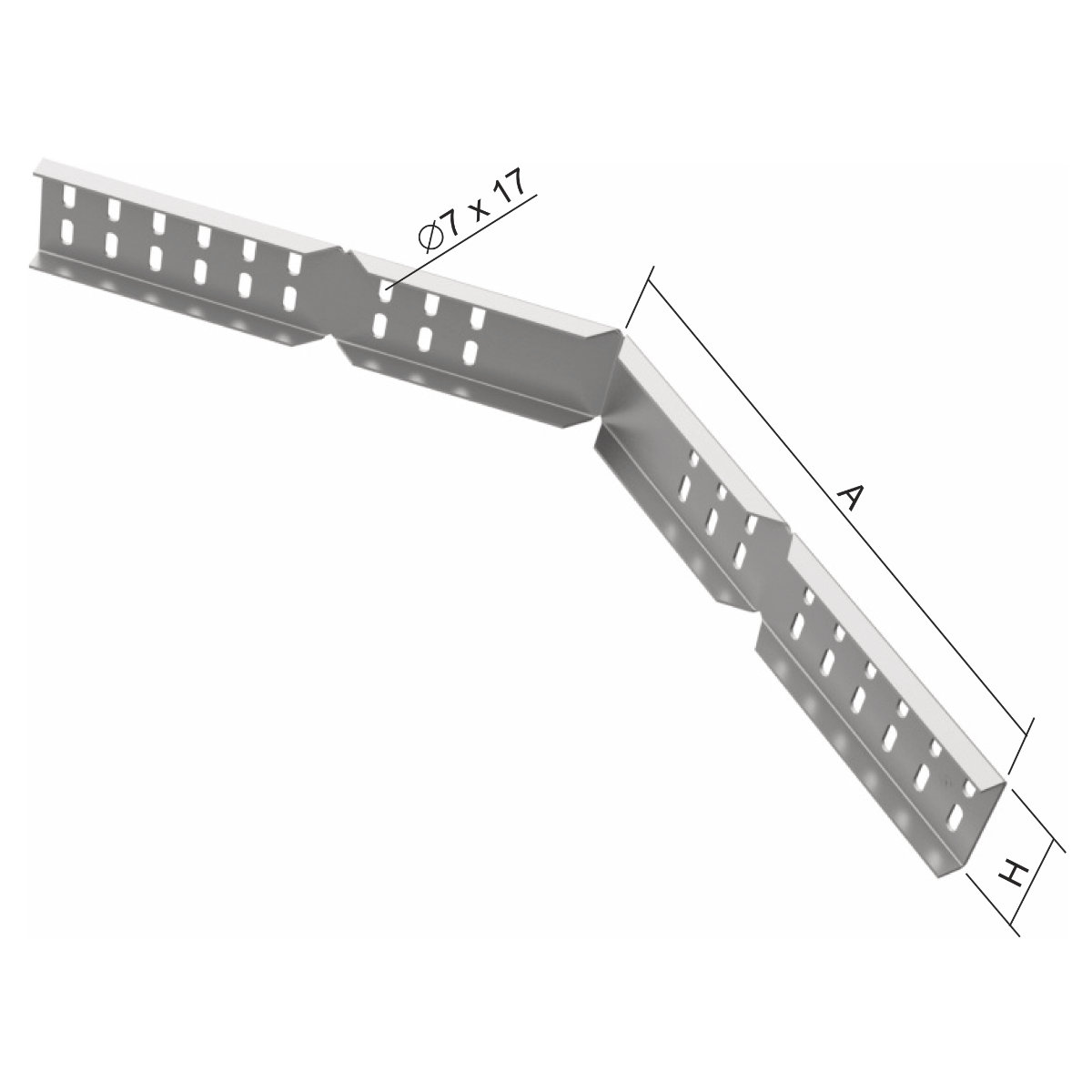

Dimensiunea A315 mm
Dimensiunea H89 mm

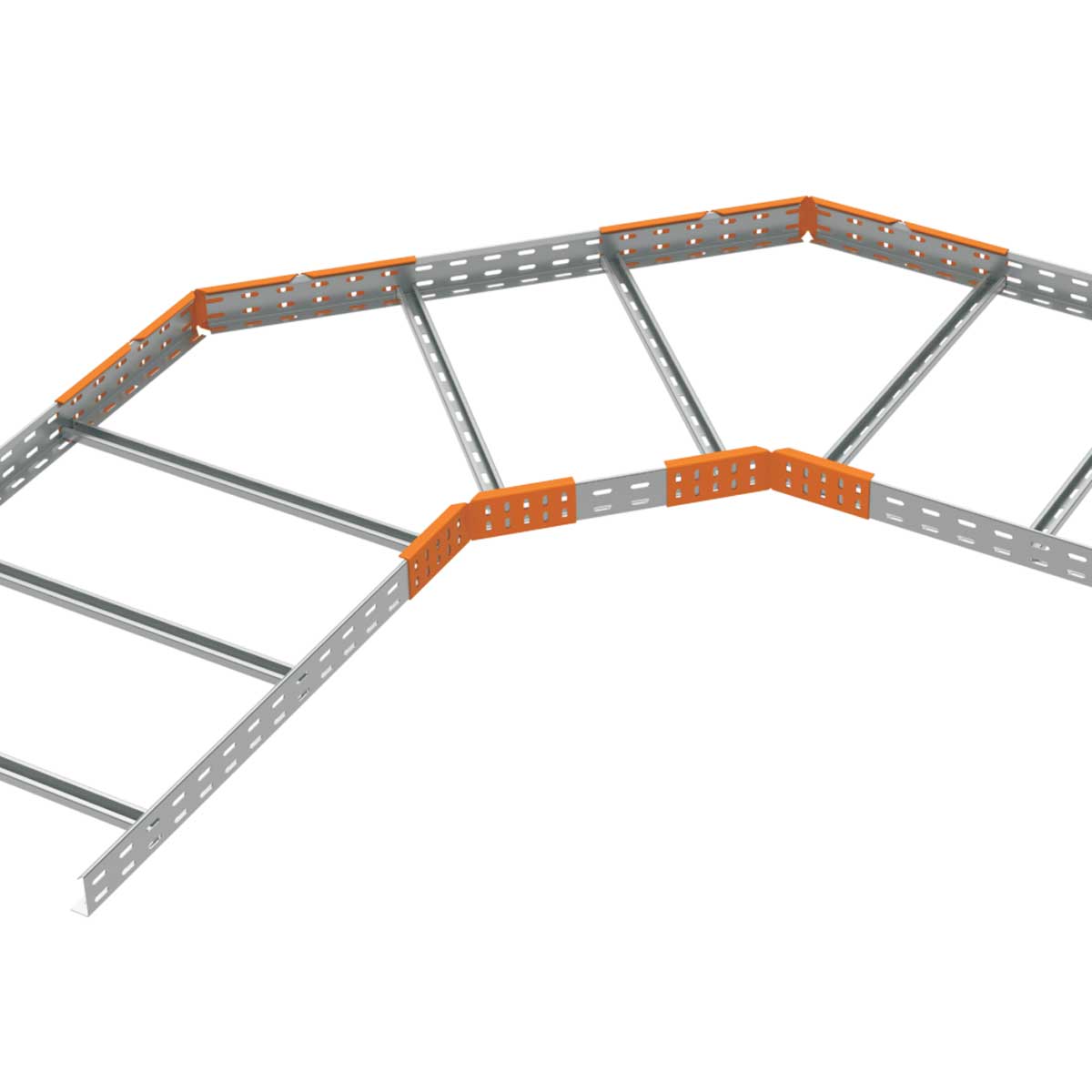

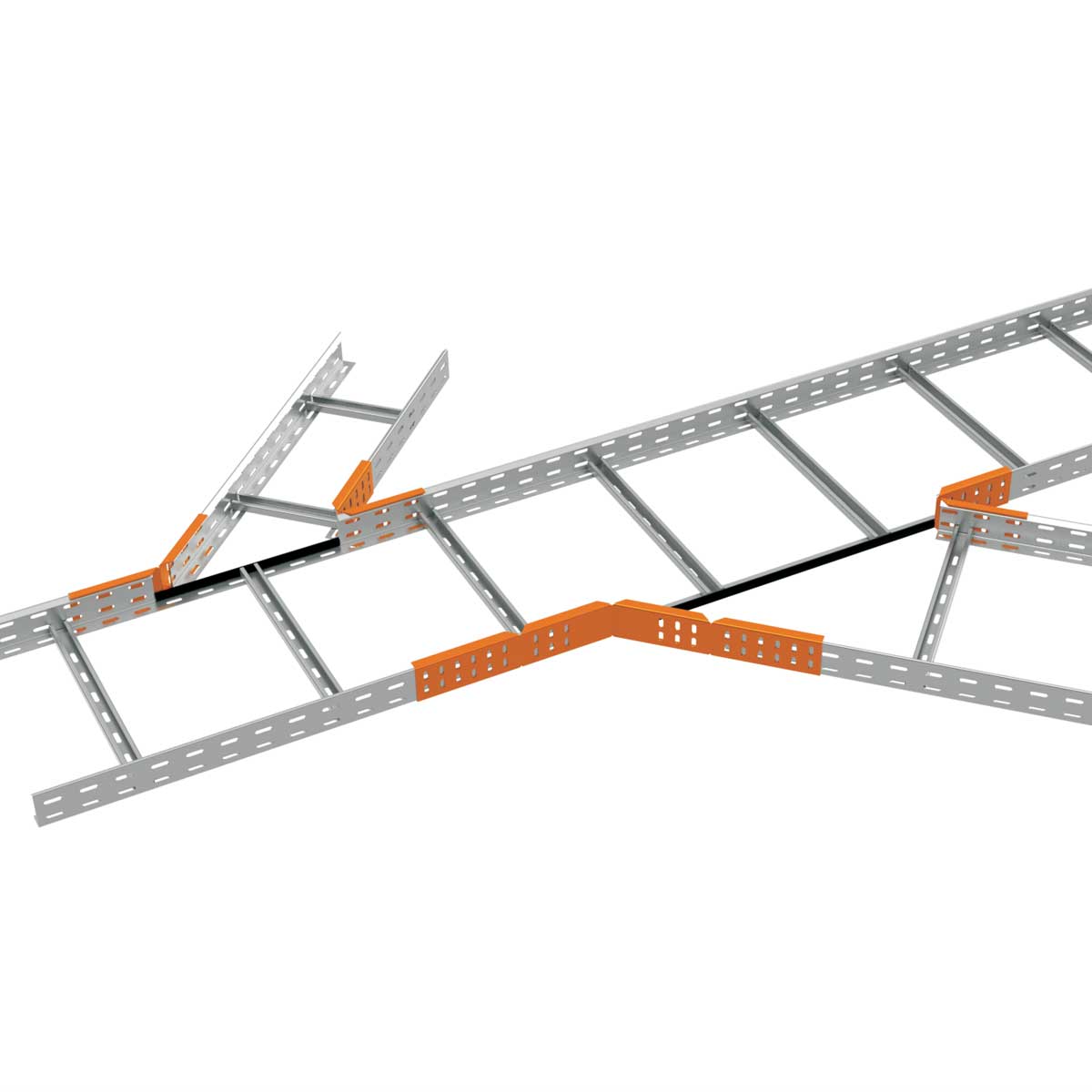

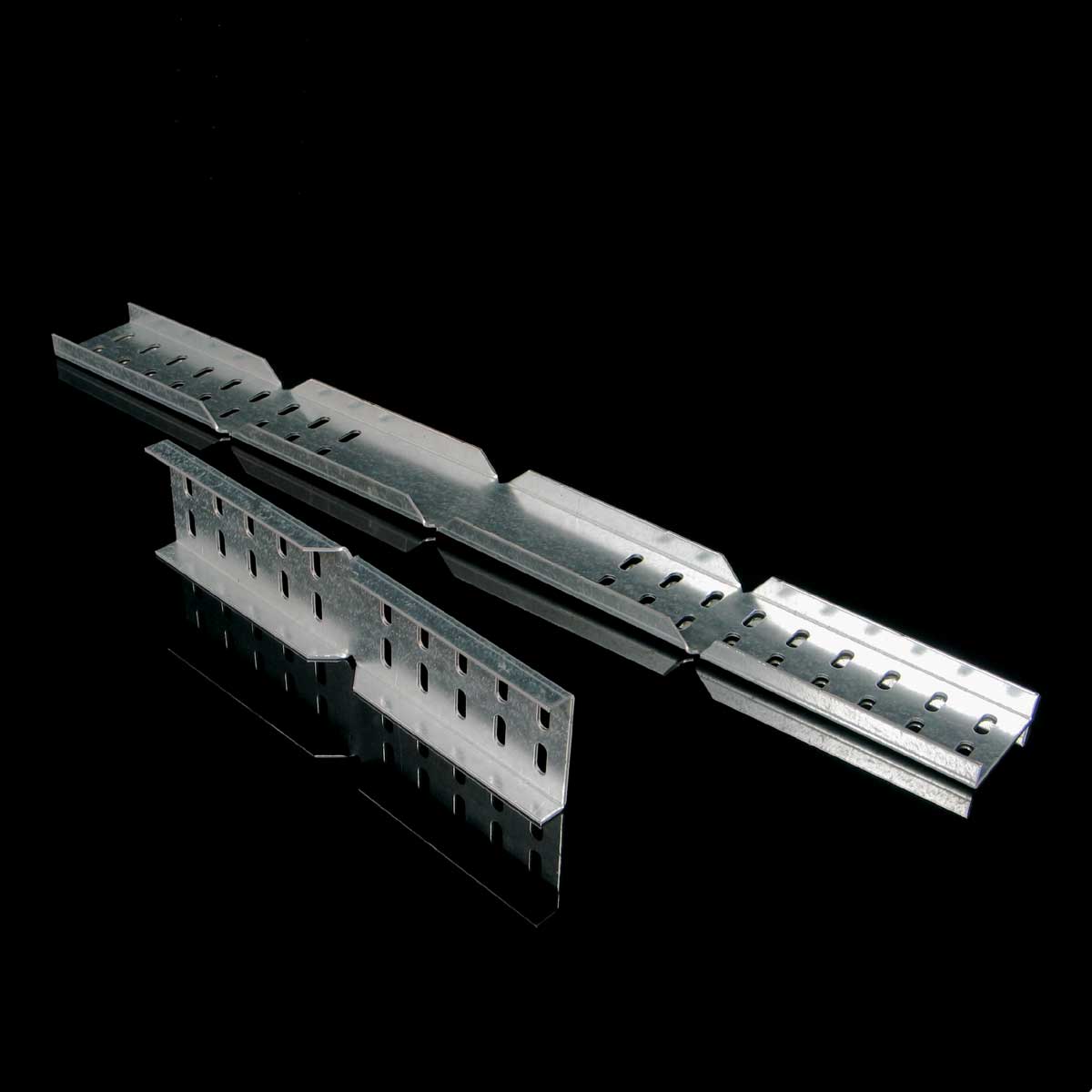

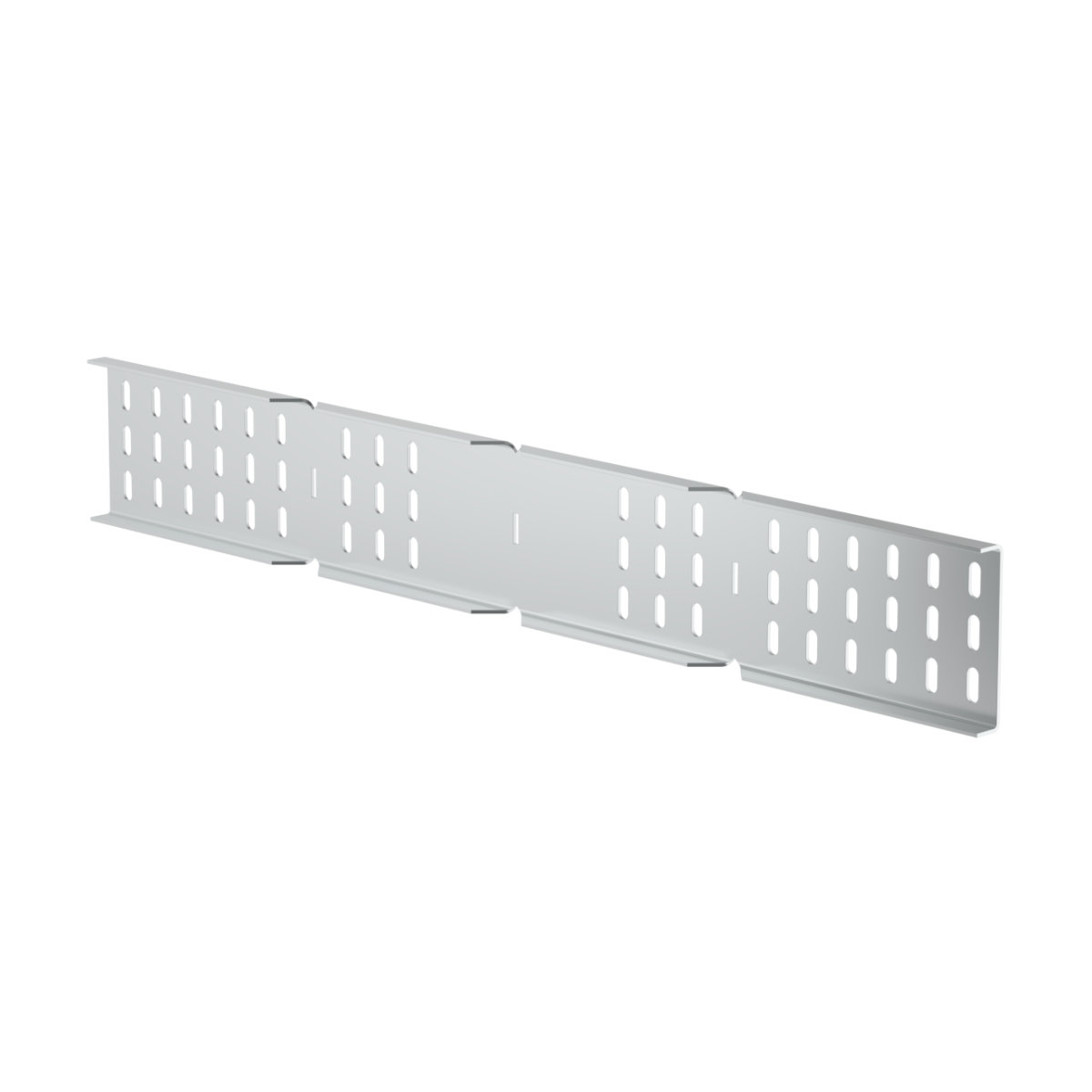

Used to create branches in cable ladder routes or as a substitute for cable ladder fittings or to create a change in a route at different angles and different bending radiuses. Connectors are a cost-effective and versatile way of creating branches in routes in a horizontal direction. Cut the side wall of the cable ladder to bend off c. 15 mm above the bottom – in the bottom perforation axis. It is necessary to use NCH. The fastening of the joint is performed with the bolts NSM 6X10.
