Cod Ean8595057689565
Cod vamal85381000
Greutate0,8650 kg/pcs
MaterialAl
Rezistența la temperatură-25 - 70 °C
Protectie mecanicăIK10
Lătime120 mm
Înăltime120 mm
Adâncime76 mm
Diametrul orificiului de instalare8 mm
Clasa de reacţie la foc a materialului de fondA1 - D
Extinderea reacției la foc a materialelor de bază
Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1
Tipuri de protecțieIP 54
Descriere impachetarethe glands for threaded pipes M25

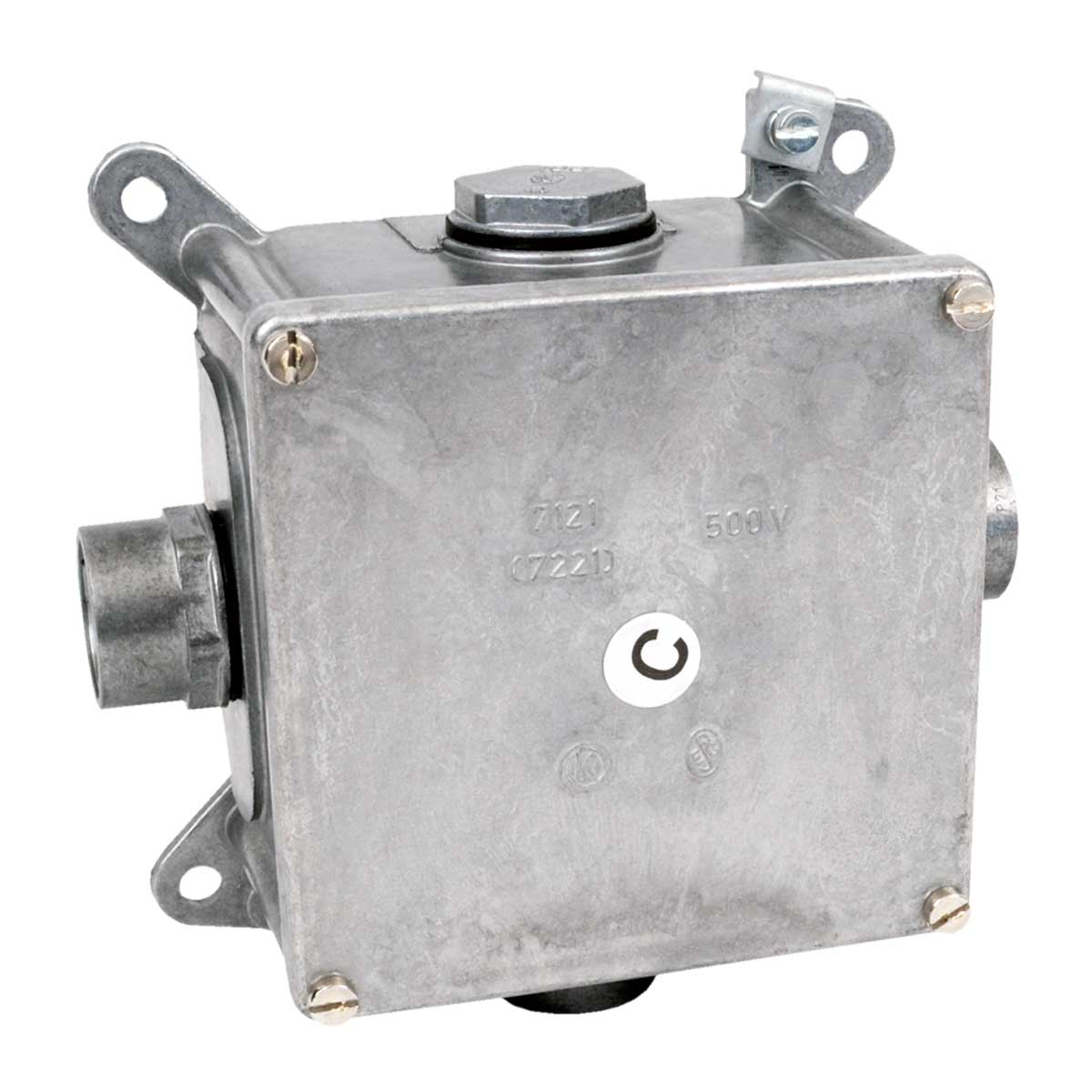

Boxes for piping with steel threaded or metal flexible pipes. Three glands and one plug evenly distributed on the sides of the box. Terminal plate is not included in the box. 7121 B: fitted with a clamp for installation in TNS networks.
