Cod Ean8595057689541
Cod vamal85381000
Greutate0,5750 kg/pcs
MaterialAl
Rezistența la temperatură-25 - 70 °C
Protectie mecanicăIK10
Lătime96 mm
Înăltime96 mm
Adâncime64 mm
Diametrul orificiului de instalare6 mm
Clasa de reacţie la foc a materialului de fondA1 - D
Extinderea reacției la foc a materialelor de bază
Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1
Tipuri de protecțieIP 54
Descriere impachetarethe glands for threaded pipes M20

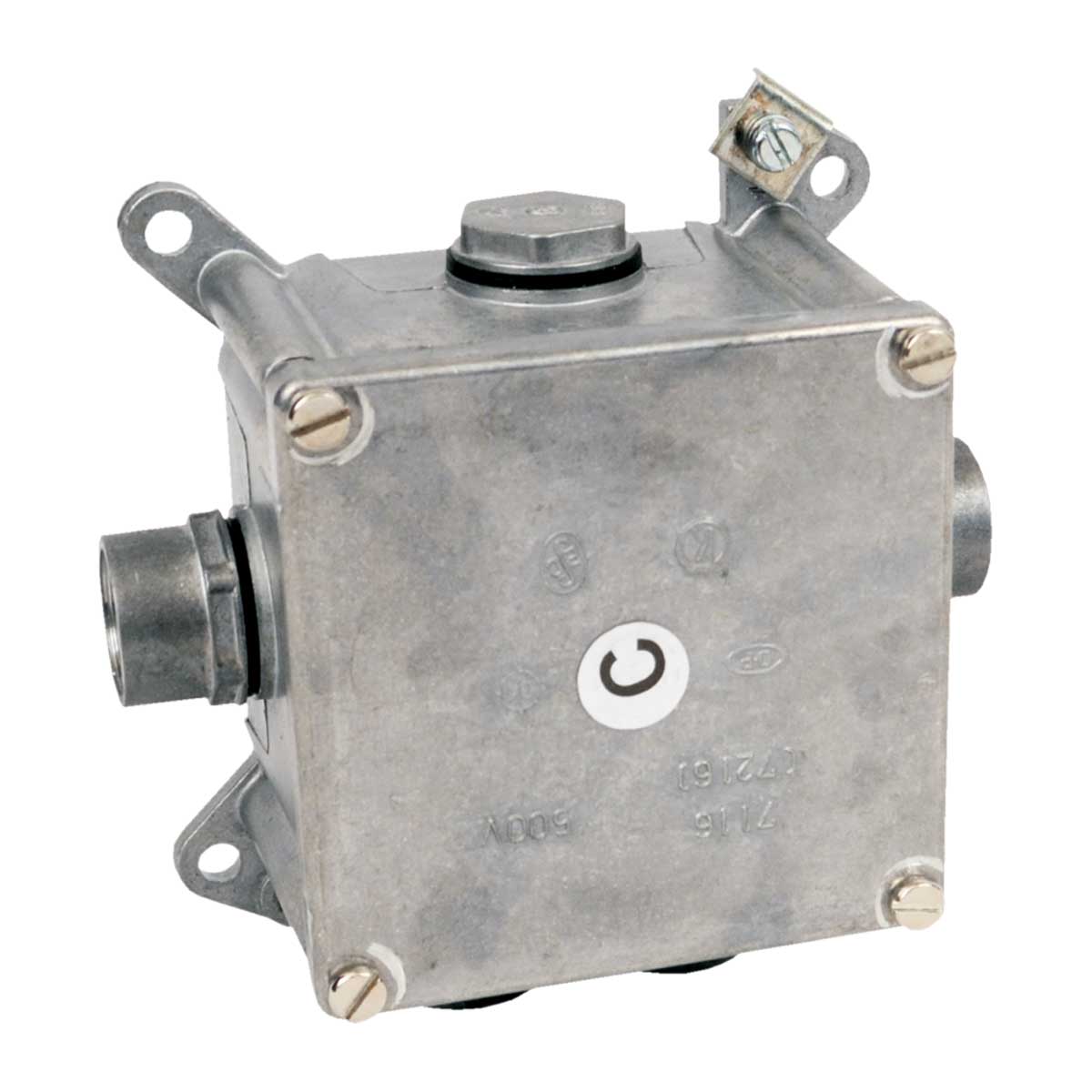

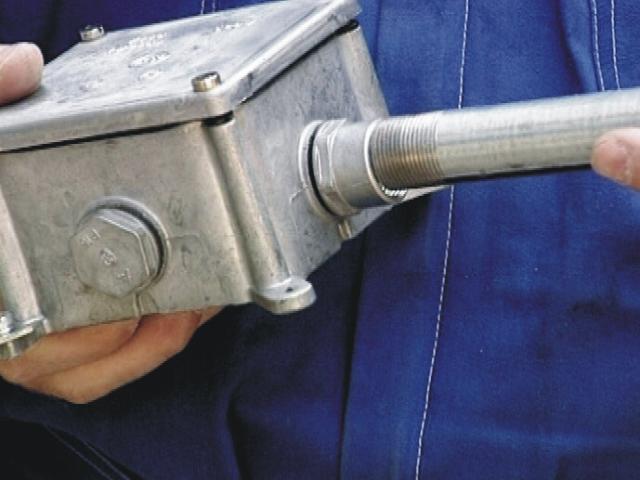

Boxes for piping with steel threaded or metal flexible pipes. Three glands and one plug evenly distributed on the sides of the box. Terminal plate is not included in the box.7216 B: without protective terminal for installation in TNC networks.
