Cod Ean8595057690455
Cod vamal39259020
Greutate0.76 kg/m
Culoarewhite
MaterialPVC
Material fără plumbyes
Cu suto-stingere30 s
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C
Rezistență la impact0,5 J
Lătime80 mm
Înăltime40 mm
Lungime2 m
Zona interioară2430 mm2
Toleranță
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Utilizare
they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use.
Zonă cu pericol de explozie
Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14.
Clasa de reacție la focA1 - F
Tipuri de protecțieIP 40
StandardeČSN EN 50 085-1
Descriere impachetarepackage - cardboard
Cu folie de protecţieyes

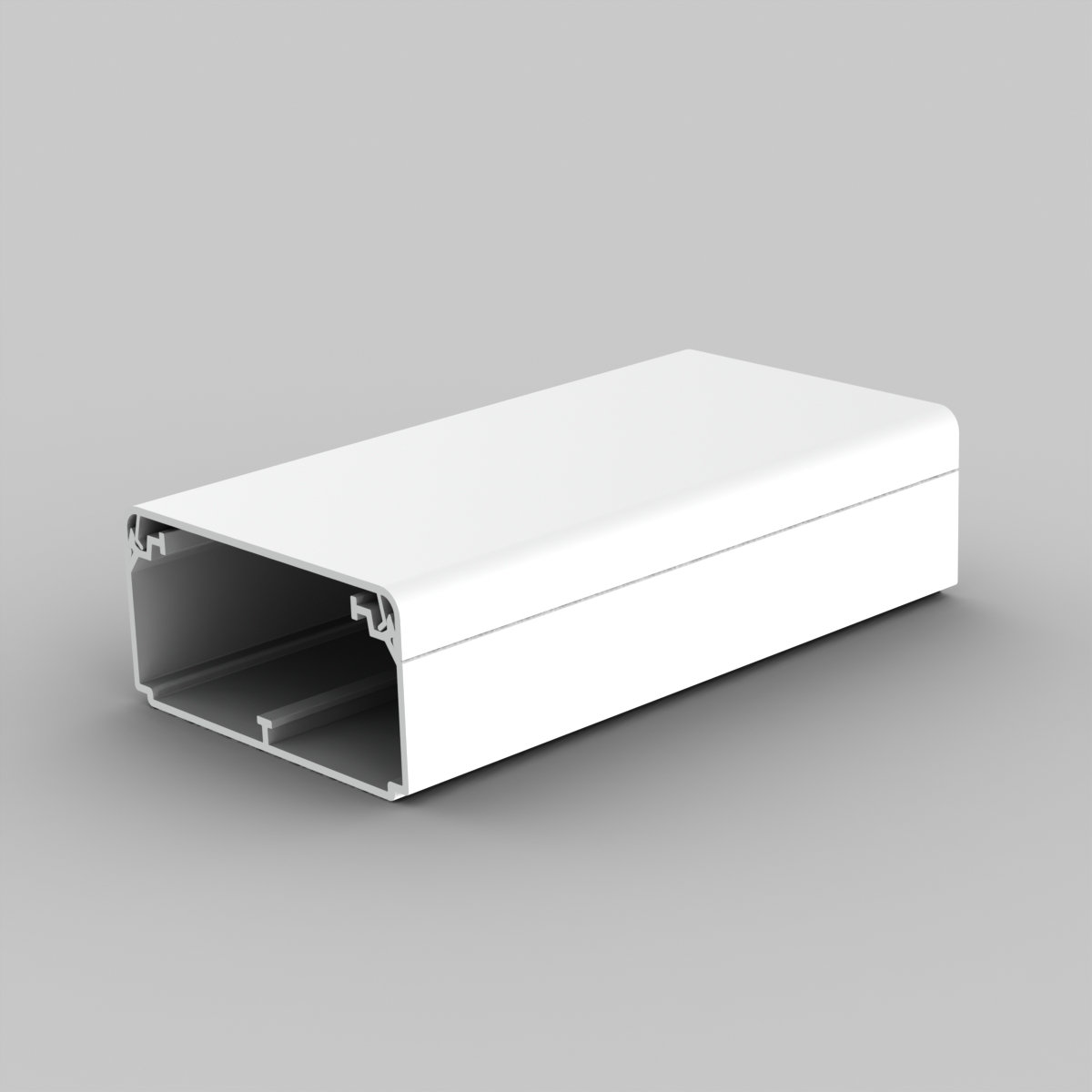

It is designed for inserting multiple cables or cables of larger diameters. Possibility to insert PEKD 40 partition walls. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation. Spacers are included in the package – always 1 pc per 1 m.
