Cod Ean | 8595057667884 |
Cod vamal | 39259020 |
Greutate | 0,25 kg/m |
Culoare | dark oak |
Material | PVC |
Material fără plumb | yes |
Cu suto-stingere | 30 s |
Rezistența la temperatură | -5 - 60 °C |
Testat cu buclă incinsă | 850 °C |
Rezistență la impact | 2 J |
Lătime | 35 mm |
Înăltime | 25 mm |
Lungime | 2 m |
Zona interioară | 350 mm2 |
Toleranță The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
Zonă cu pericol de explozie Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
Clasa de reacţie la foc a materialului de fond | A1 - F |
Tipuri de protecție | IP 40 |
Standarde | ČSN EN 50 085-1 |
Descriere impachetare | package - cardboard |

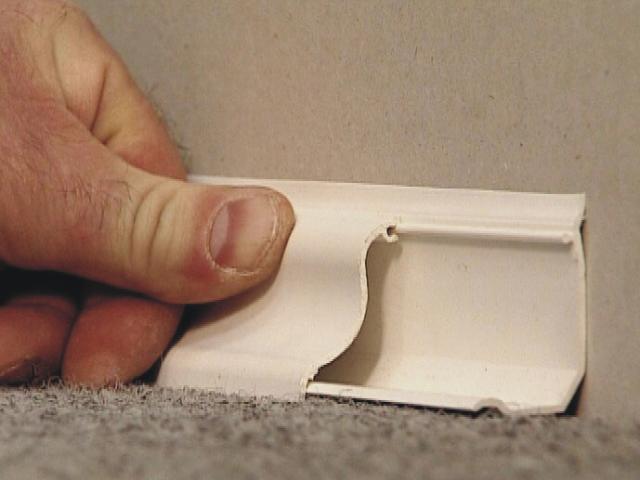

It is designed for installation in the corner between the floor and wall. Edge with softened spray application for better adhesion to the surface. Suitable for use with floating floors.
