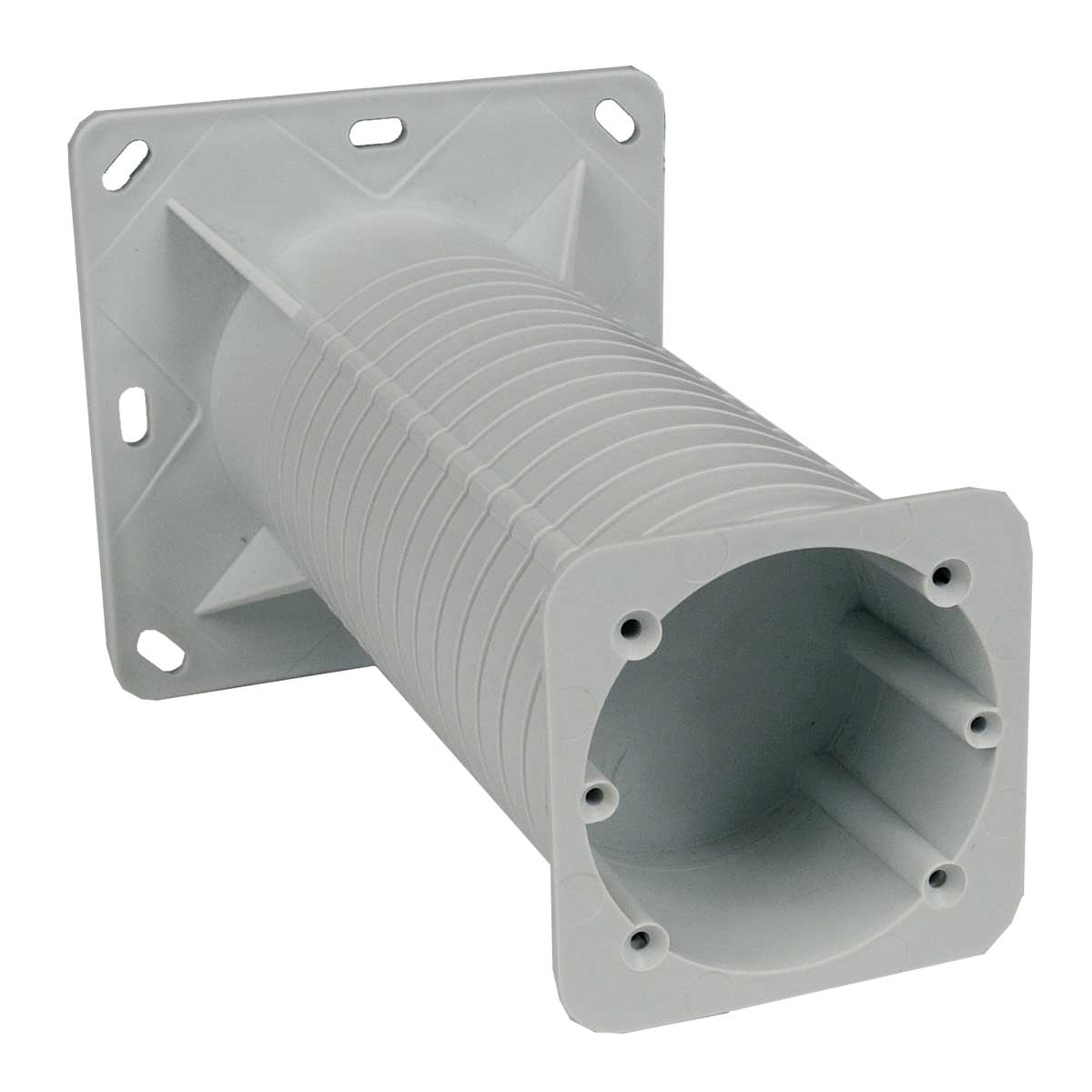

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KEZ_EN
| Cod Ean | 8595057698499 |
| Cod vamal | 39259080 |
| Greutate | 0,40 kg/pcs |
| Material | PP |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -25 - 60 °C |
| Testat cu buclă incinsă | 850 °C |
| Ansamblu There is necessary to cut the carrier including inserted insulation before installation depending on layer thickness insulation. The carrier is fixed to the wall with twists and dowels depending on type of the wall surface. When installing a 400 V socket, it is recommended to fasten the carrier using chemical anchors. The finally installation of box or mounting plate should be done by 4 added screws. | |

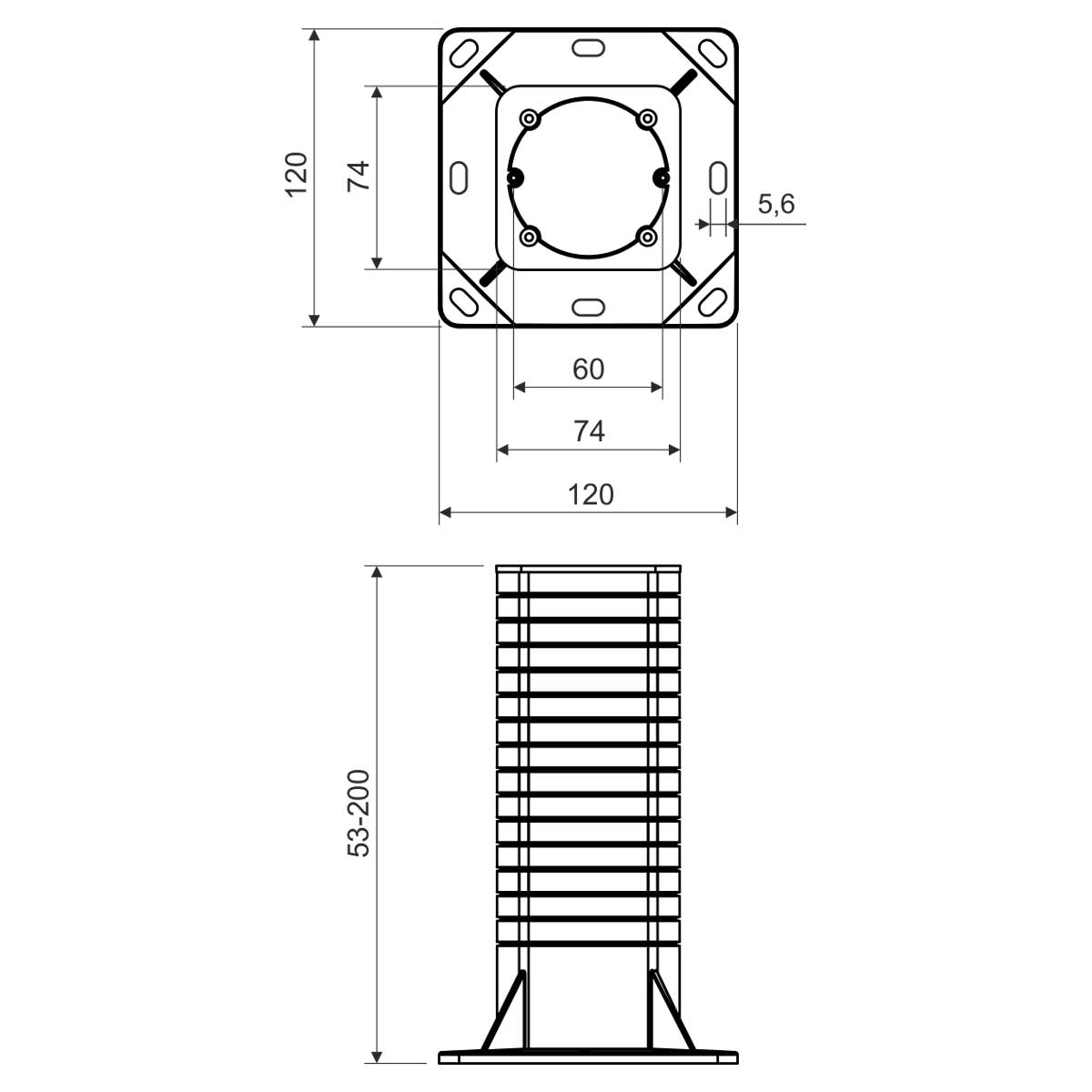

| Lătime | 120 mm |
| Înăltime | 120 mm |
| Adâncime | 200 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Permite instalarea aparatajului dublu | yes |
| Descriere impachetare individual boxes are packed in separate cardboards | |
For device installation in insulated building facades with a thickness from 50 - 200 mm. Eliminates thermal bridging. The package includes a support tube, box, internal and external insulation, quality wall plugs and screws for mounting, when installing on a rough surface, it is recommended to seal the device with silicone. When installing on a rough surface, we recommend to seal the device with silicone. Robust construction.
