Cod Ean | 8595057688445 |
Cod vamal | 85363030 |
Greutate | 0,14 kg/pcs |
Material | PVC |
Material fără plumb | yes |
Cu suto-stingere | 30 s |
Voltaj nominal | <= 400 V |
Curent nominal | <= 16 A |
Rezistența la temperatură | -5 - 60 °C |
Testat cu buclă incinsă | 850 °C |

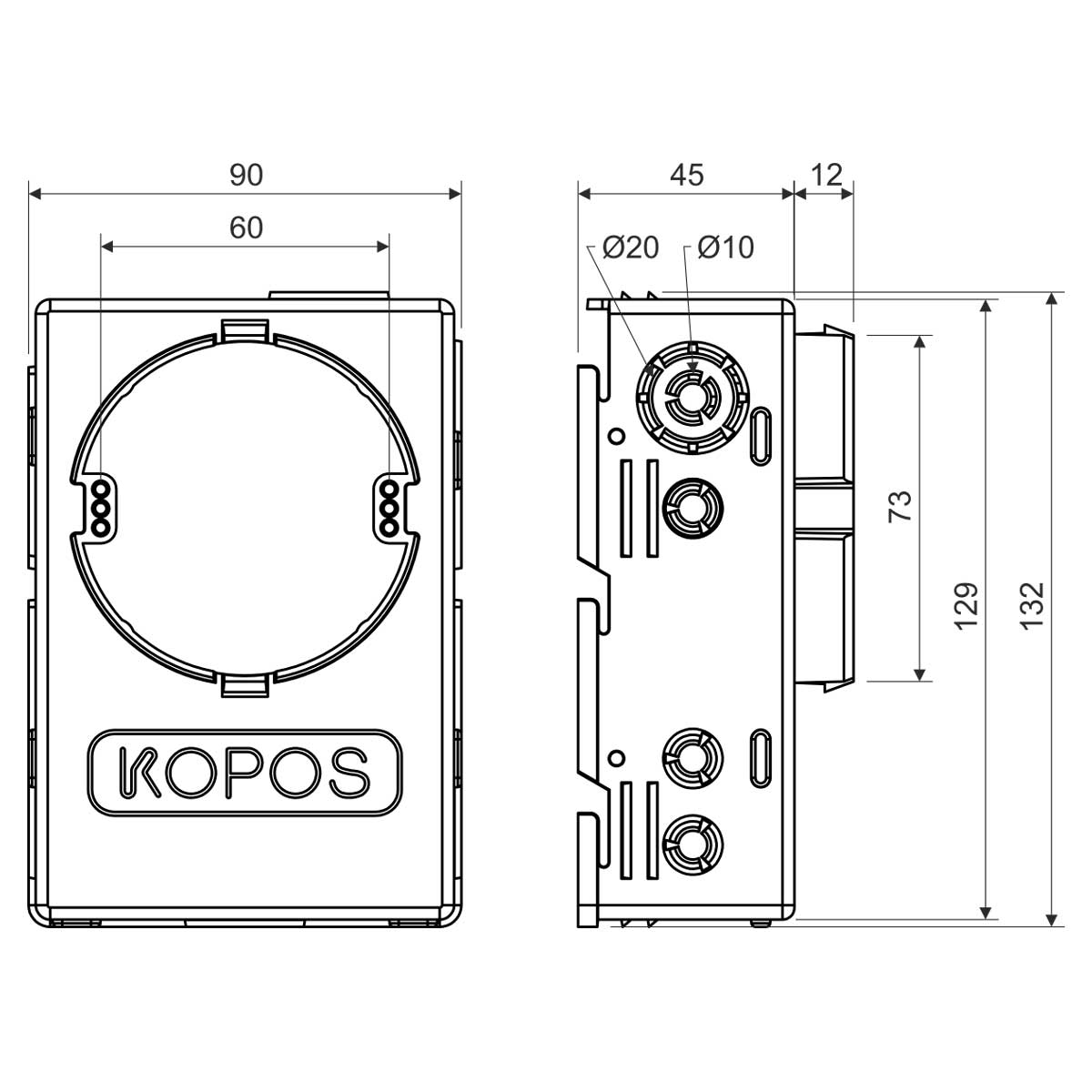

În medie | 73 mm |
Lătime | 90 mm |
Înăltime | 132 mm |
Adâncime | 57 mm |
Clasa de reacție la foc | A1 - D |
Posibilitate de conectare a 2 doze in serie | yes |
Standarde | ČSN EN 60 670-1 |
Descriere impachetare boxes are individually wrapped in a shrink foil, the instrument screws are packed |
More space in the box allows the insertion of active elements under the device. Possibility to insert the terminal S-66 directly under the device. Suitable for modern electrical system with higher space requirements.
