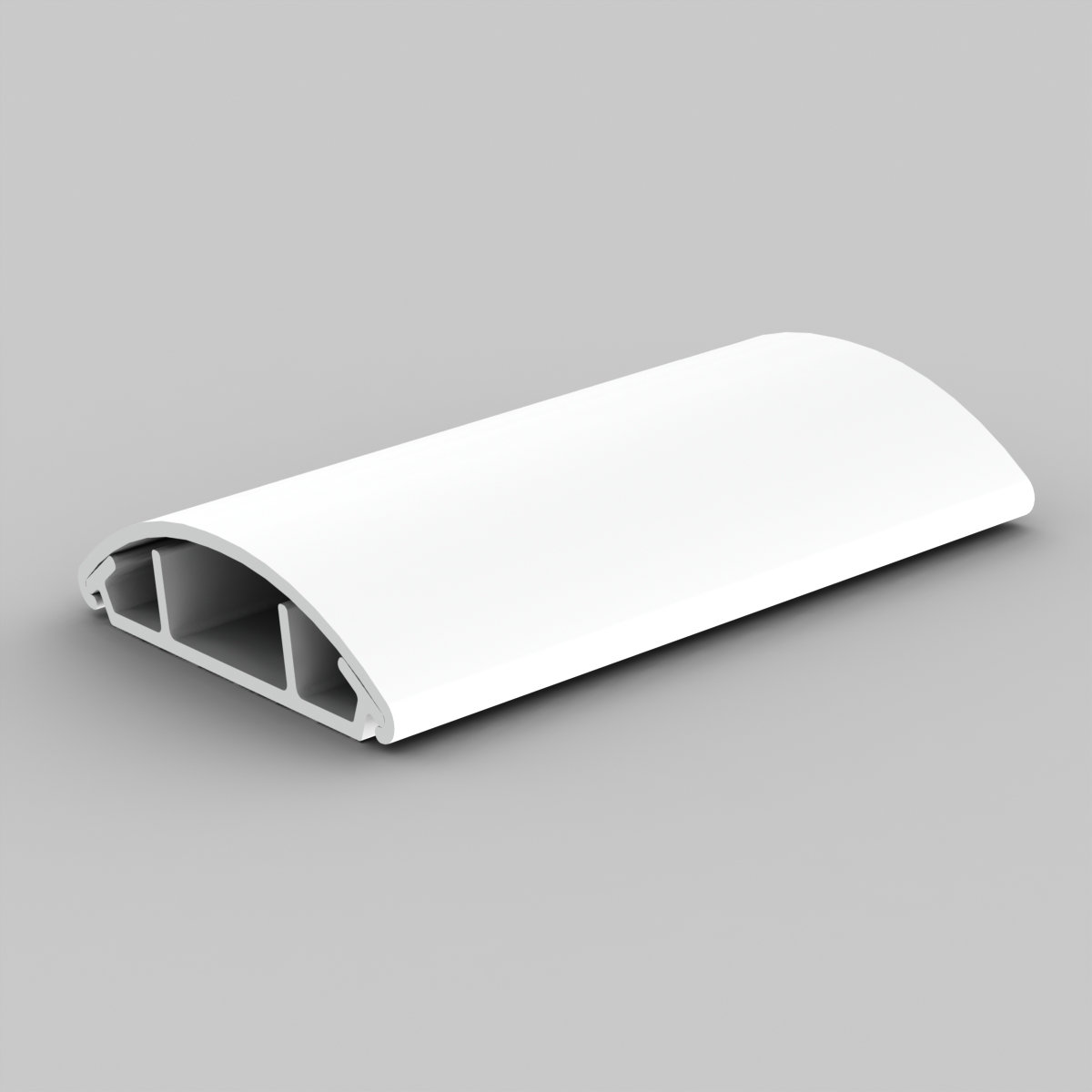

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
LO50_EN
| Cod Ean | 8595057619944 |
| Cod vamal | 39259020 |
| Greutate | 0,2830 kg/m |
| Culoare | white |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |
| Protectie mecanică | IK07 |
| Rezistență la impact | 0,5 J |
| Antibacterial | yes |
| Lătime | 50 mm |
| Înăltime | 11 mm |
| Lungime | 2 m |
| Zona interioară | 60, 180, 60 |
| Toleranță The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Zonă cu pericol de explozie Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 40 |
| Standarde | ČSN EN 50 085-1 |
| Descriere impachetare | package - cardboard |
Designed for mounting on the floor. Designed for load capacity common in apartments and offices.
