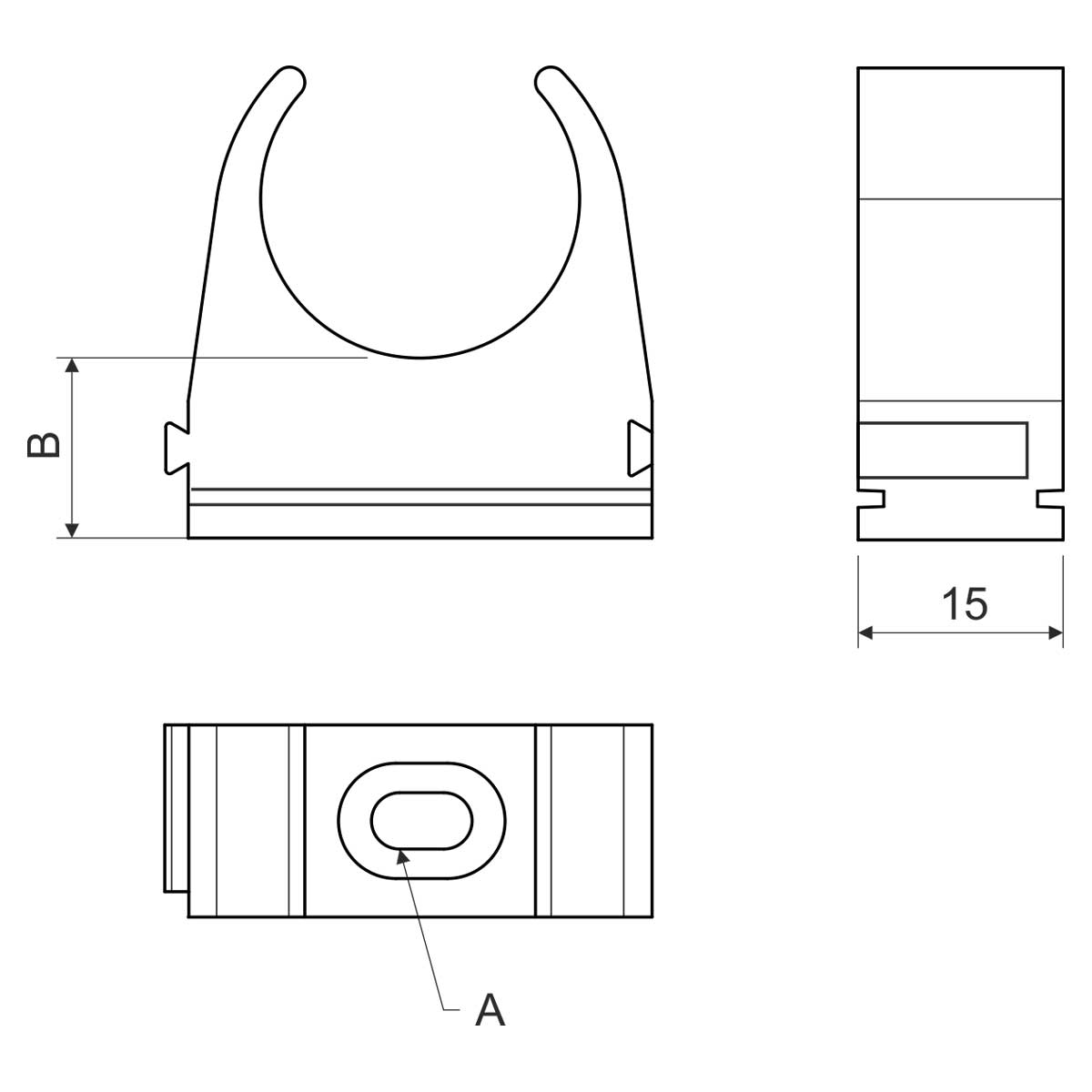

Imagine ilustrativă
5340HF FB - příchytka plastová pro bezhalogenové EN trubky
To download 3D models, please login or create an account and request access.
Cod Ean8595057626560
Cod vamal39174000
Greutate0,02 kg/pcs
Culoareblack
MaterialPC-ABS
Material fără halogeniyes
Stabil la UV/Material stabil la UVyes
Cu suto-stingere30 s
Rezistența la temperatură-45 - 90 °C
Protectie mecanicăIK09
Diametrul exterior al tubului40 mm
Diametrul orificiului de instalare5,4x10 mm
Zonă cu pericol de explozie
Can be installed in a zone with the danger of explosion of flammable gases and vapors of zone 2 and into the zone of danger of explosion of flammable dusts of zone 22.
Clasa de reacţie la foc a materialului de fondA1 - F
Cod se sortareKód triedenia2452410
StandardeČSN EN 61386-1 ed.2

The clamps are intended to fix the pipes to the underlying material. Pipes are installed by pushing between the clamp jaws. The clamps are equipped with elements for placing next to each other to create a continuous series of tubes, and also grooves for installation in supporting trunkings of 5820/...
