| Cod Ean | 8595057604124 |
| Cod vamal | 85381000 |
| Greutate | 0,5750 kg/buc |
| Material | Al |
| Rezistența la temperatură | -25 - +70 °C |
| Protectie mecanică | IK10 |
| Lătime | 96 mm |
| Înăltime | 96 mm |
| Adâncime | 64 mm |
| Diametrul orificiului de instalare | 6 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Extinderea reacției la foc a materialelor de bază Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 | |
| Tipuri de protecție | IP 54 |
| Descriere impachetare | the glands for threaded pipes P16 |

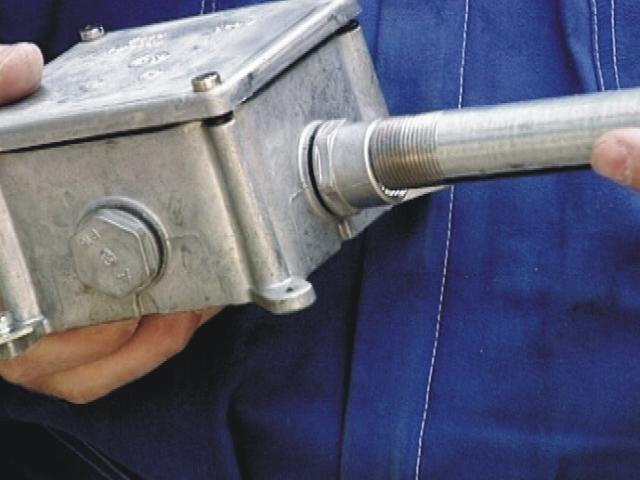

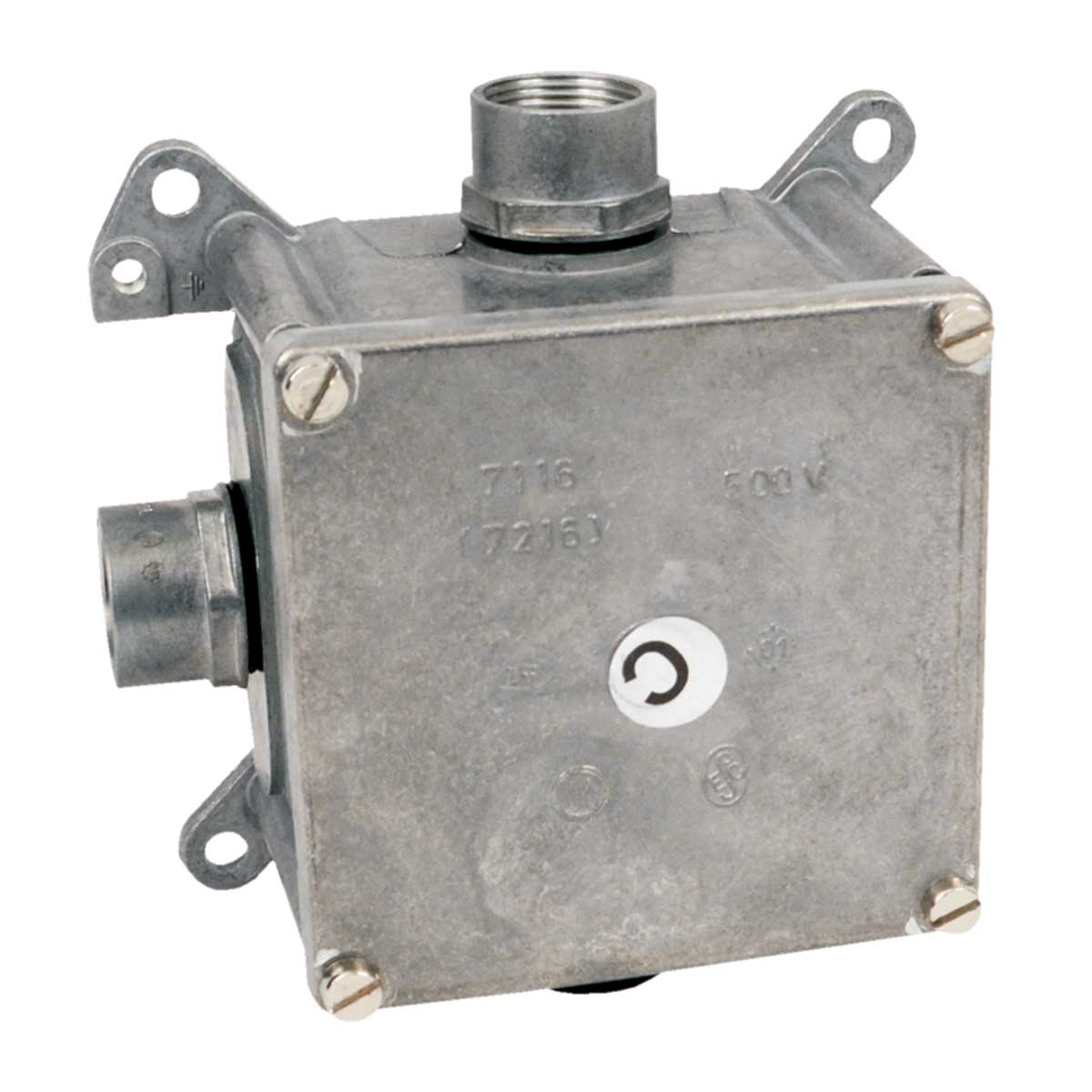

Boxes for piping with steel threaded or metal flexible pipes. Three glands and one plug evenly distributed on the sides of the box. Terminal plate is not included in the box. 7116 B: fitted with a clamp for installation in TNS networks.
7116B_EN
