Cod Ean8595057603332
Cod vamal39259080
Greutate0,10 kg/pcs
Culoaredark grey RAL 7012
MaterialPVC
Material fără plumbyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

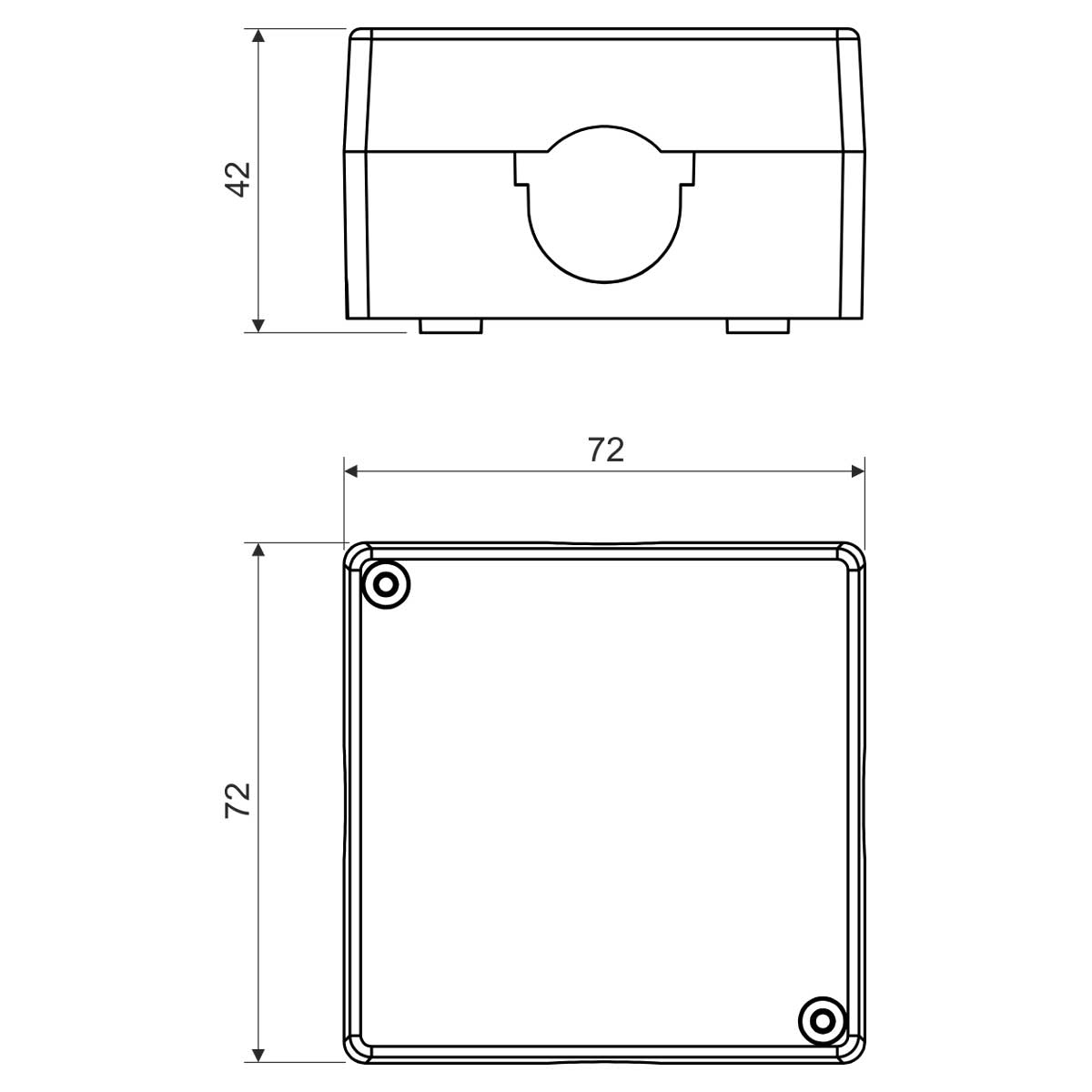

Lătime72 mm
Înăltime72 mm
Adâncime42 mm
Clasa de reacţie la foc a materialului de fondA1 - D
Extinderea reacției la foc a materialelor de bază
Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 - F
Tipuri de protecțieIP 40
StandardeČSN EN 60 670-1
Descriere impachetare

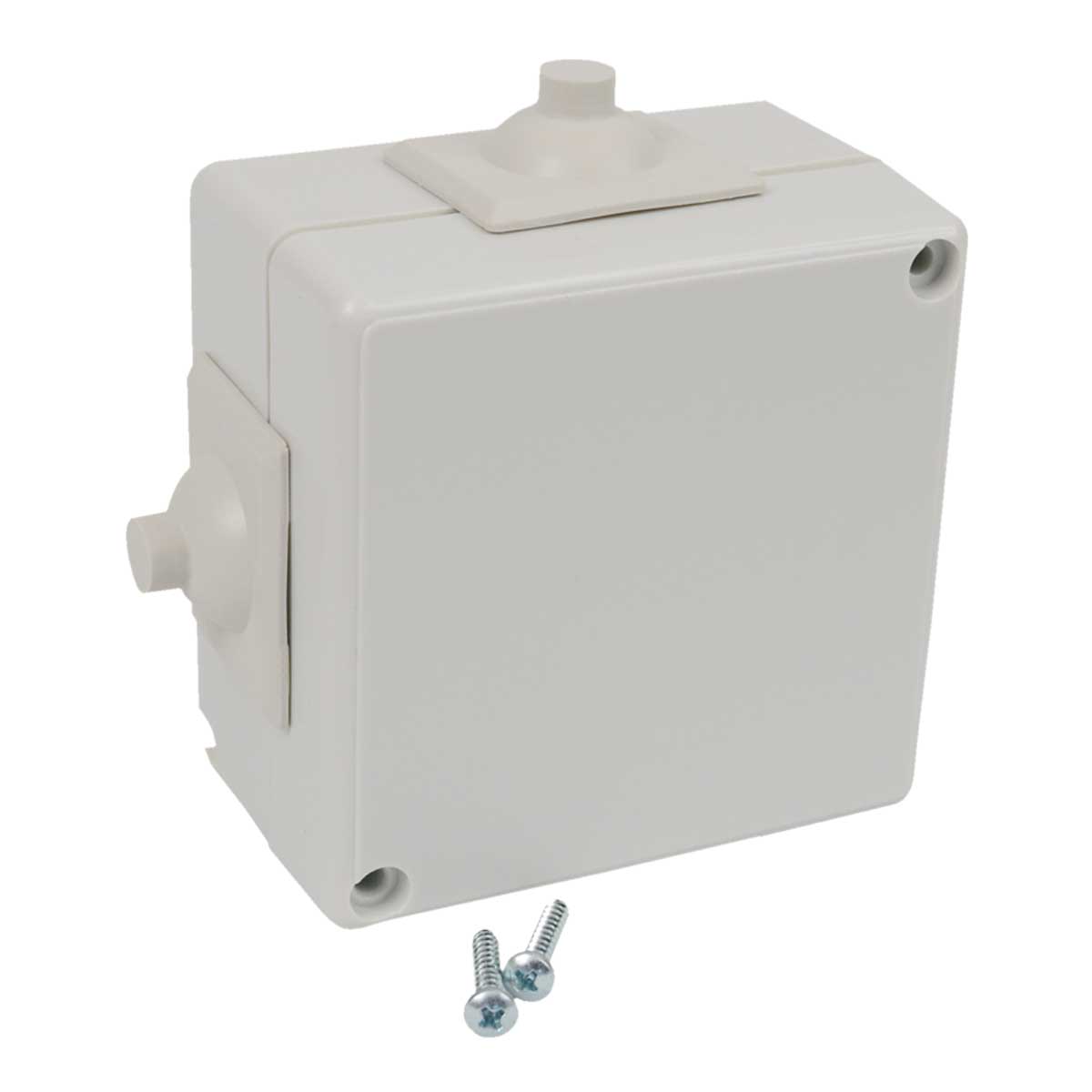

the grommets and screws for mounting lid inserted in the box, each box is packed in a shrink foil and labeled

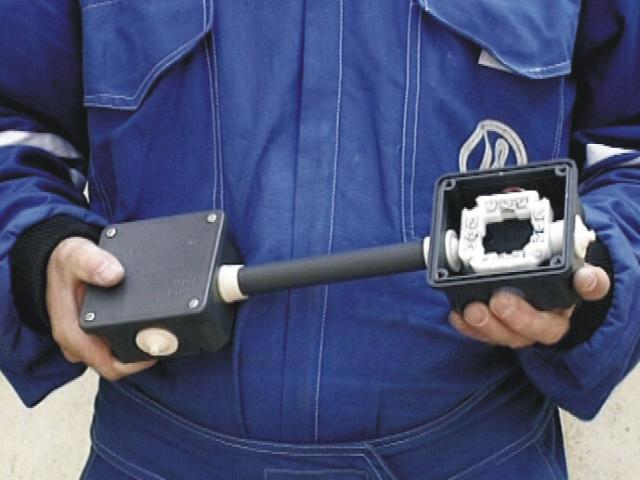

For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Universal grommets for cables and pipes, grommets can be ordered separately. To install on materials with fire classes E or F, use thermally insulating pad.
