Cod Ean8595057618725
Cod vamal73063041
Greutate0,71 kg/m
Materialsteel
Acoperire de suprafată
ZN: after steel welding hot-dip galvanized using immersion, zinc layer min. 35 micrometers, high corrosion resistance - Group 4
Rezistența la temperatură-60 - 250 °C
Rezistență mecanică1250 N/5cm
Protectie mecanicăIK10
Lungime3 m
Diametru exterior22,5 mm
Diametru interior (min.)20,3 mm
Funcționalitate în focP90-R, E90, PS90
Tip cu filetP16
Cod se sortareKód triedenia44561
StandardeČSN EN 61386-1 ed.2
Standardele cu privire lade rezistența la focČSN 73 0895, DIN 4102-12, STN 92 0205
Încărcătură maximă pentru rezistența la foc10 kg

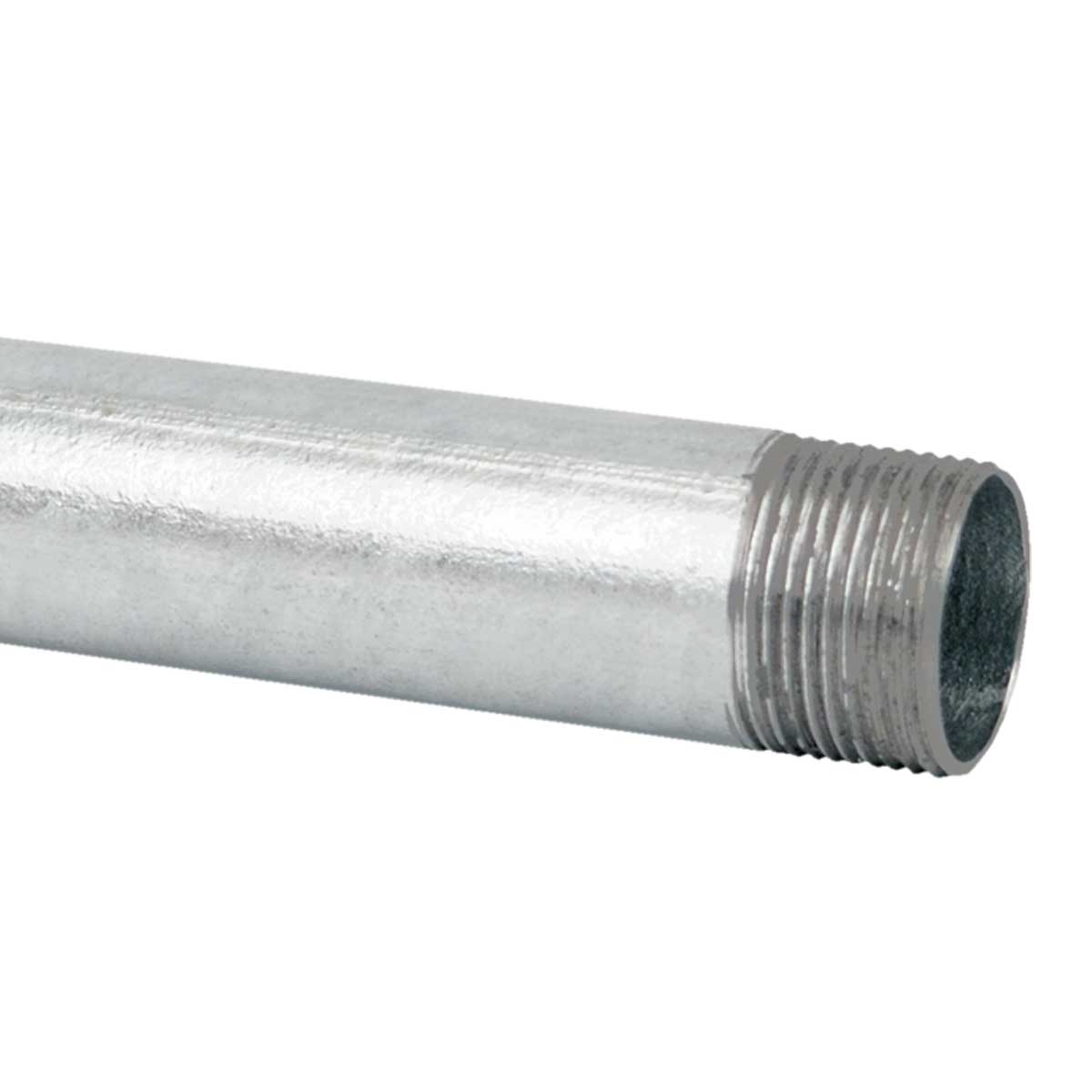

The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.

Note for system with maintained functionality in fire:
max. 1 piece of cable in the pipe
You find more information in the catalogue Systems with maintained functionality in fire.
