Imagine ilustrativă
To download 3D models, please login or create an account and request access.
Certificate ESČ
| Cod Ean | 8595057610569 |
| Cod vamal | 39259080 |
| Greutate | 0,09 kg/pcs |
| Culoare | white |
| Material | PVC |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Lătime | 133 mm |
| Înăltime | 91 mm |
| Adâncime | 28 mm |
| Utilizare | for trunkings LV 40X15 |
| Clasa de reacţie la foc a materialului de fond | A1 - D |

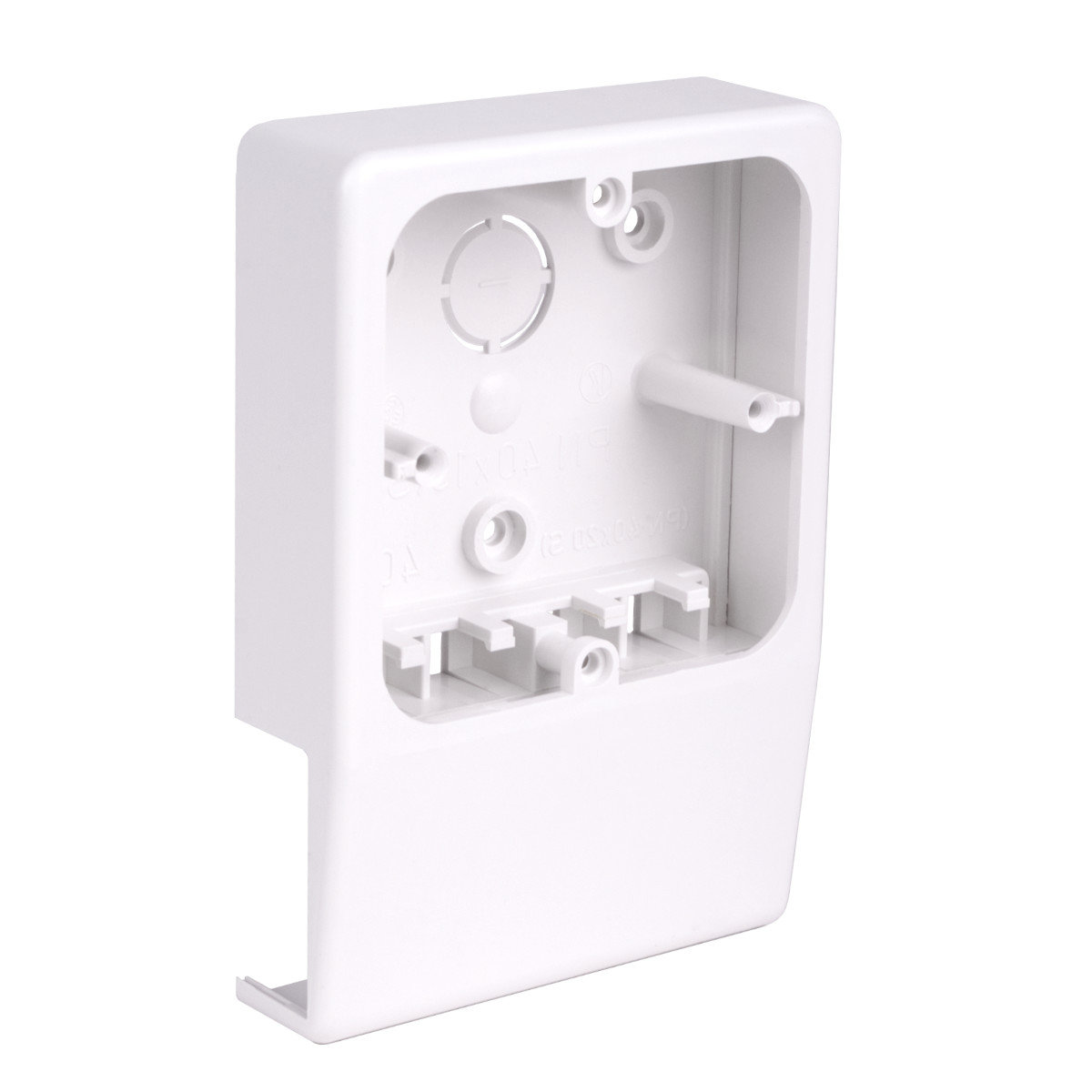

It consists of two parts - the carrier and cover. The instrument carrier includes 1 pcs of blinding pieces. Suitable for the following instruments: Classic, Tango, Swing, Time and others with a max. width of 83 mm.
