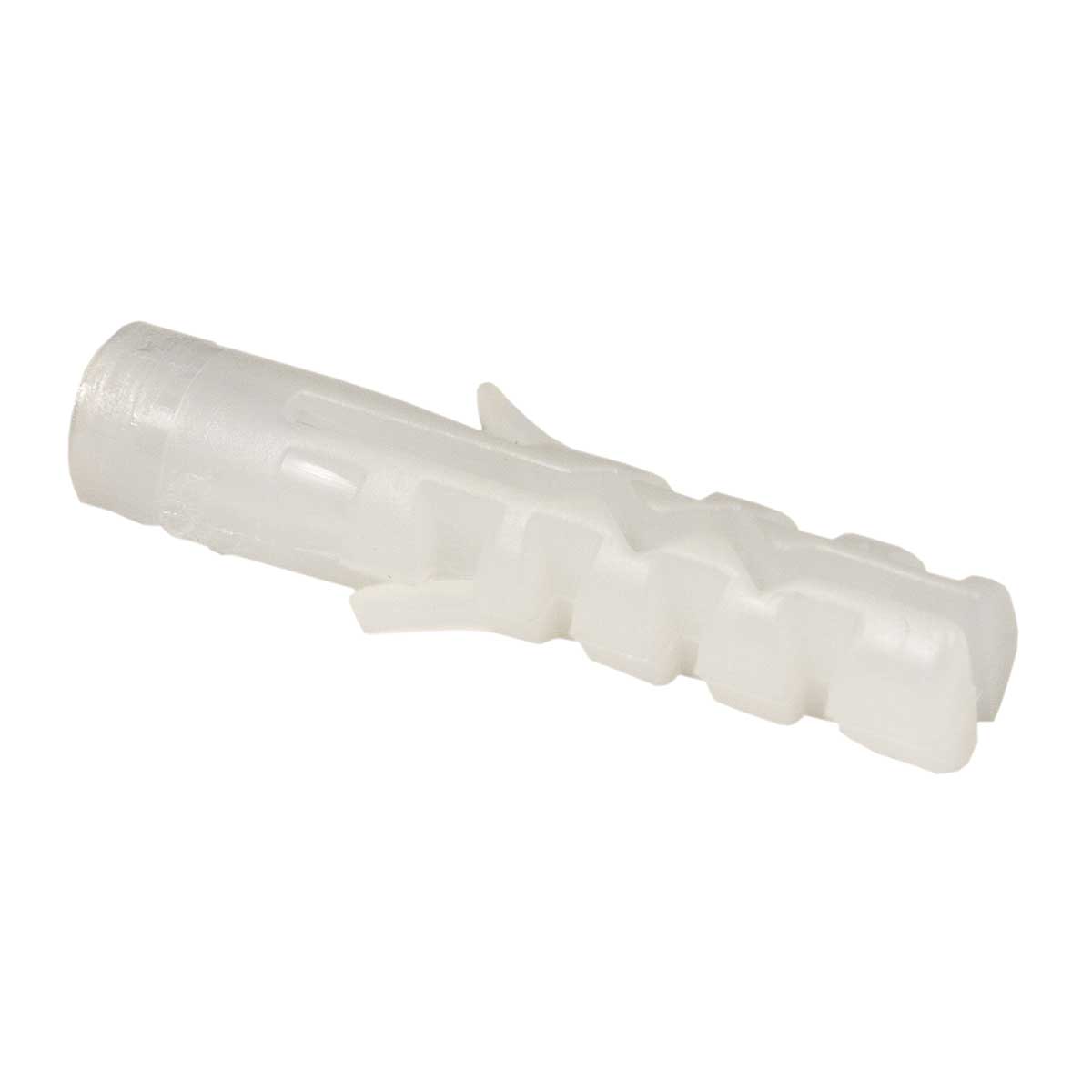

HM 12 XX - hmoždinka
To download 3D models, please login or create an account and request access.
Cod Ean8595057605190
Cod vamal39259080
Greutate0,0047 kg/pcs
MaterialPA
Material fără halogeniyes
Rezistența la temperatură-30 - 80 °C
Lungime60 mm
Diametru exterior12 mm
Diametrul şurubului6 - 8 mm
Recomandările producătorului
dowels should be installed immediately after unpacking from a sealed bag. This will avoid unnecessary lowering of the PA moisture level, which would result in a reduction in the quality of the dowel
Adancime de forare65 mm

Designed for light anchoring – fixing of non-structural building components and building equipment to brickwork, concrete and other building materials. For connection, use a screw fitted to full length of the wall plug; it is also necessary to allow for the thickness of material to be fastened. For more information, see installation instructions.
