Cod Ean8595057607538
Cod vamal73063041
Greutate1,7300 kg/m
Materialsteel
Acoperire de suprafată
Unvarnished: without surface finsh, without corrosion resistant, mainly for structural purposes
Rezistența la temperatură-60 - 250 °C
Rezistență mecanică1250 N/5cm
Protectie mecanicăIK10
Lungime3 m
Diametru exterior47 mm
Diametru interior (min.)44 mm
Funcționalitate în focE 90
Tip cu filetP36
Cod se sortareKód triedenia44561
StandardeČSN EN 61386-1 ed.2

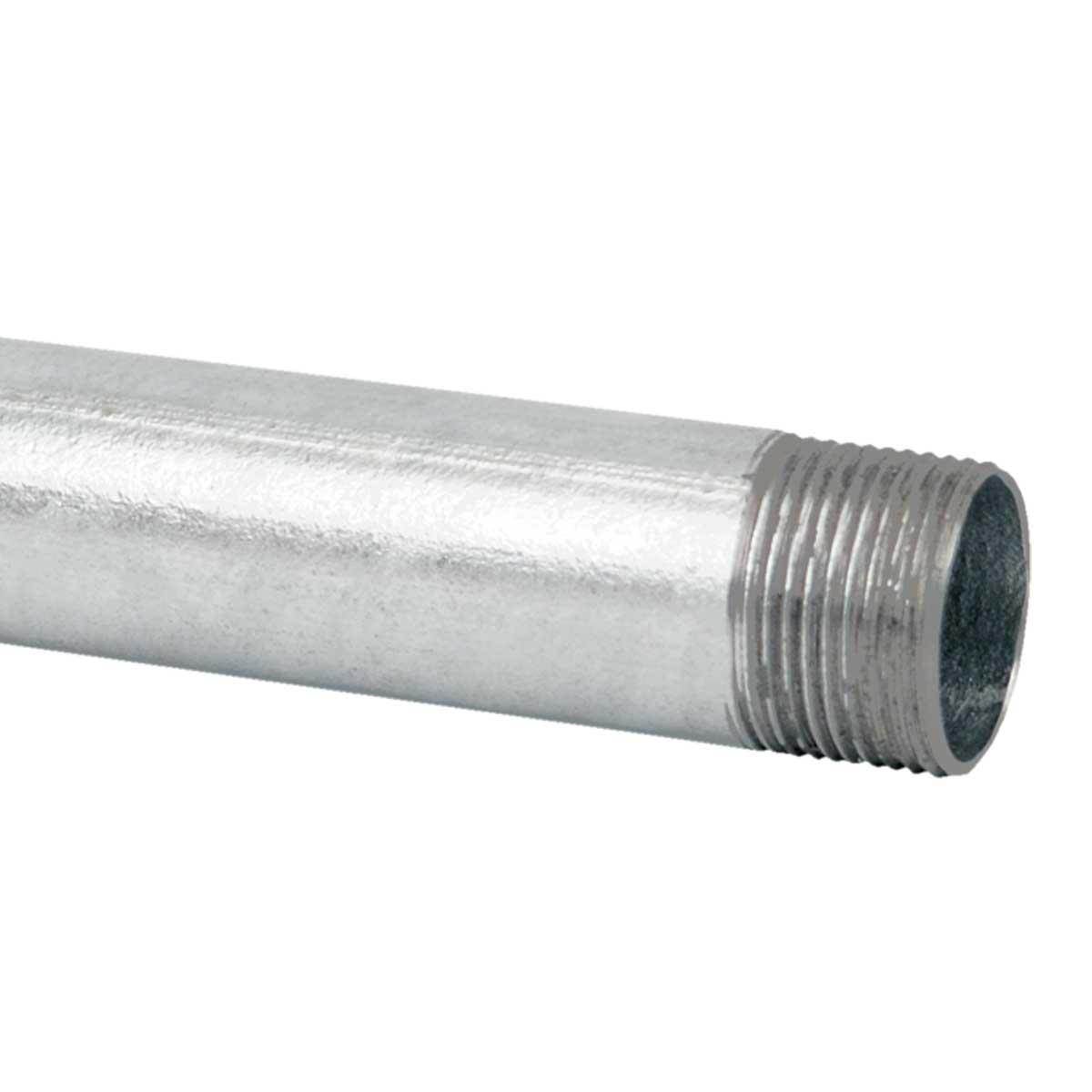

The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.
