Imagine ilustrativă
To download 3D models, please login or create an account and request access.
| Cod Ean | 8595057617780 |
| Cod vamal | 39174000 |
| Greutate | 0,0114 kg/buc |
| Culoare | dark grey |
| Material | PVC |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -25 - +60 °C |
| Protectie mecanică | IK09 |
| Diametrul exterior al tubului | 16 mm |
| Unghi incovoiere | 55 mm |
| Zonă cu pericol de explozie Can be installed in a zone with the danger of explosion of flammable gases and vapors of zone 2 and into the zone of danger of explosion of flammable dusts of zone 22. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Standarde | ČSN EN 61386-1 ed.2 |

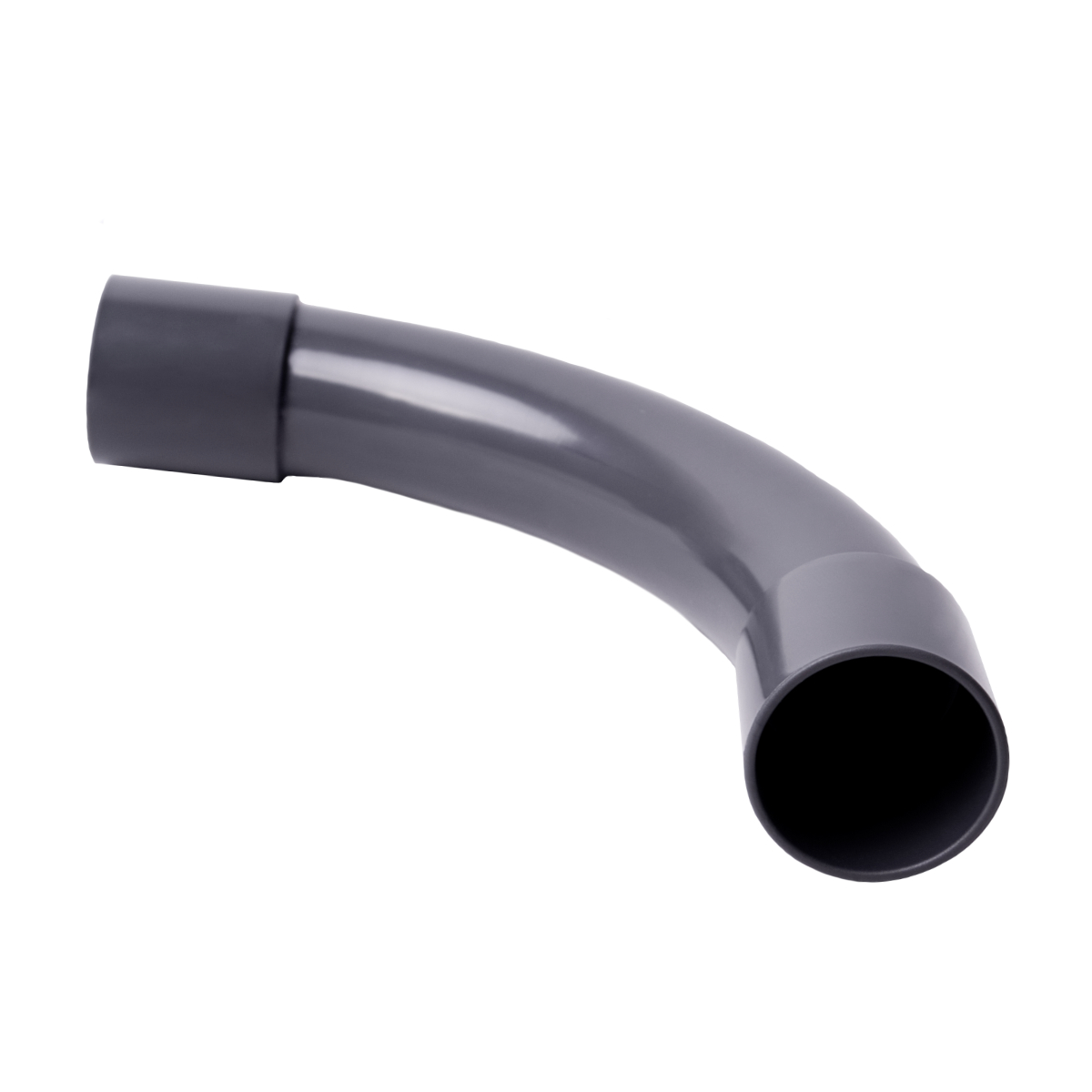

The elbows with double-sided necks are intended for 90° bends. Bending radius ensures smooth transition and allows easy retraction of wires and cables. Rigid and flexible pipes can be connected using accessories for rigid pipe. If a bend other than 90° is required, it is possible to replace the elbow with a flexible pipe and connecting parts.
kolena_PVC_EN_EN
