Imagine ilustrativă
Datový list
Cod Ean8595568940148
Cod vamal73269098
Greutate0,2090 kg/pcs
Acoperire de suprafatăPre-Galvanized
Lătime83 mm
Înăltime125 mm
StandardeČSN EN 61537
Grosimea foii de tablă2 mm
Pentru lățimea jgheabului de cabluri60 mm

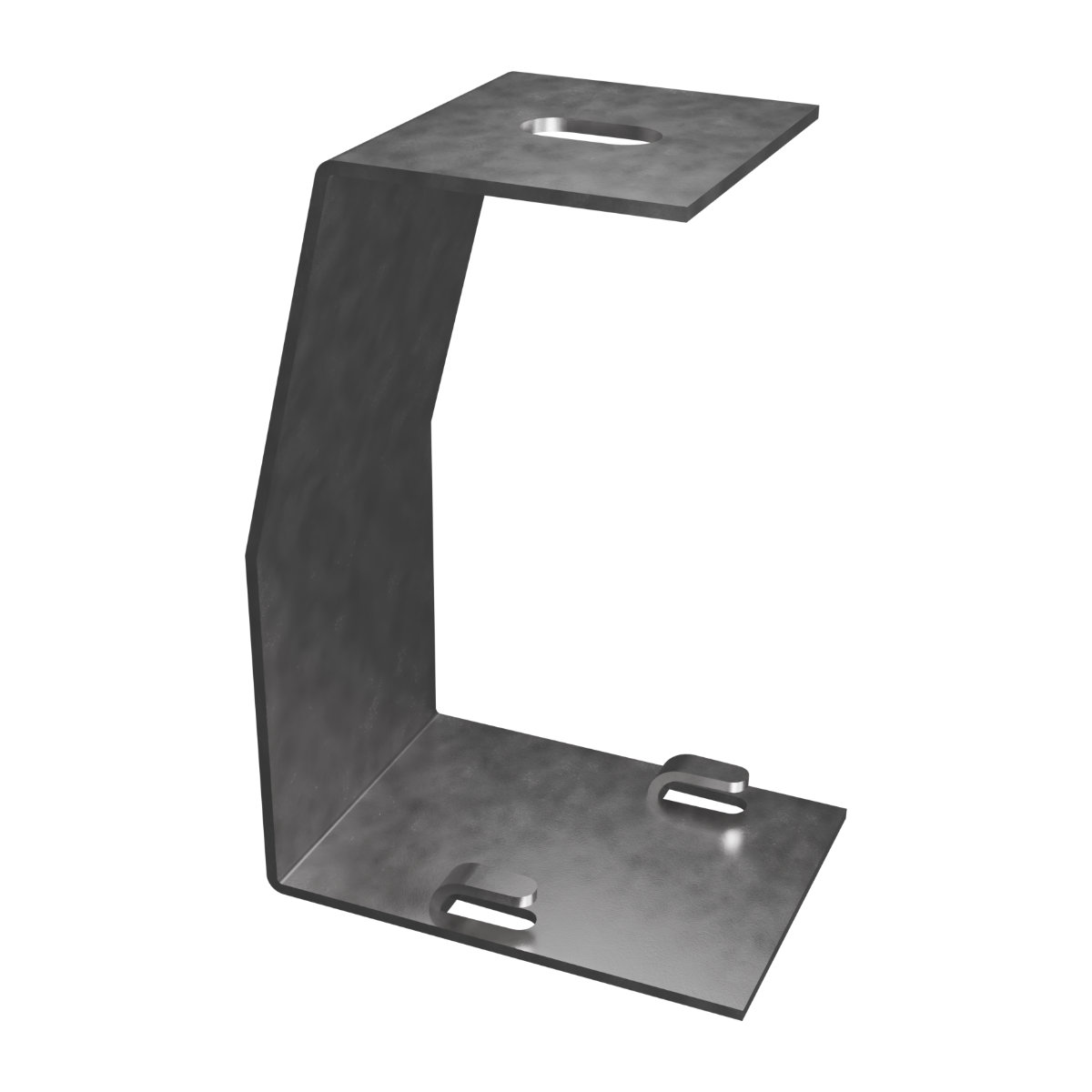

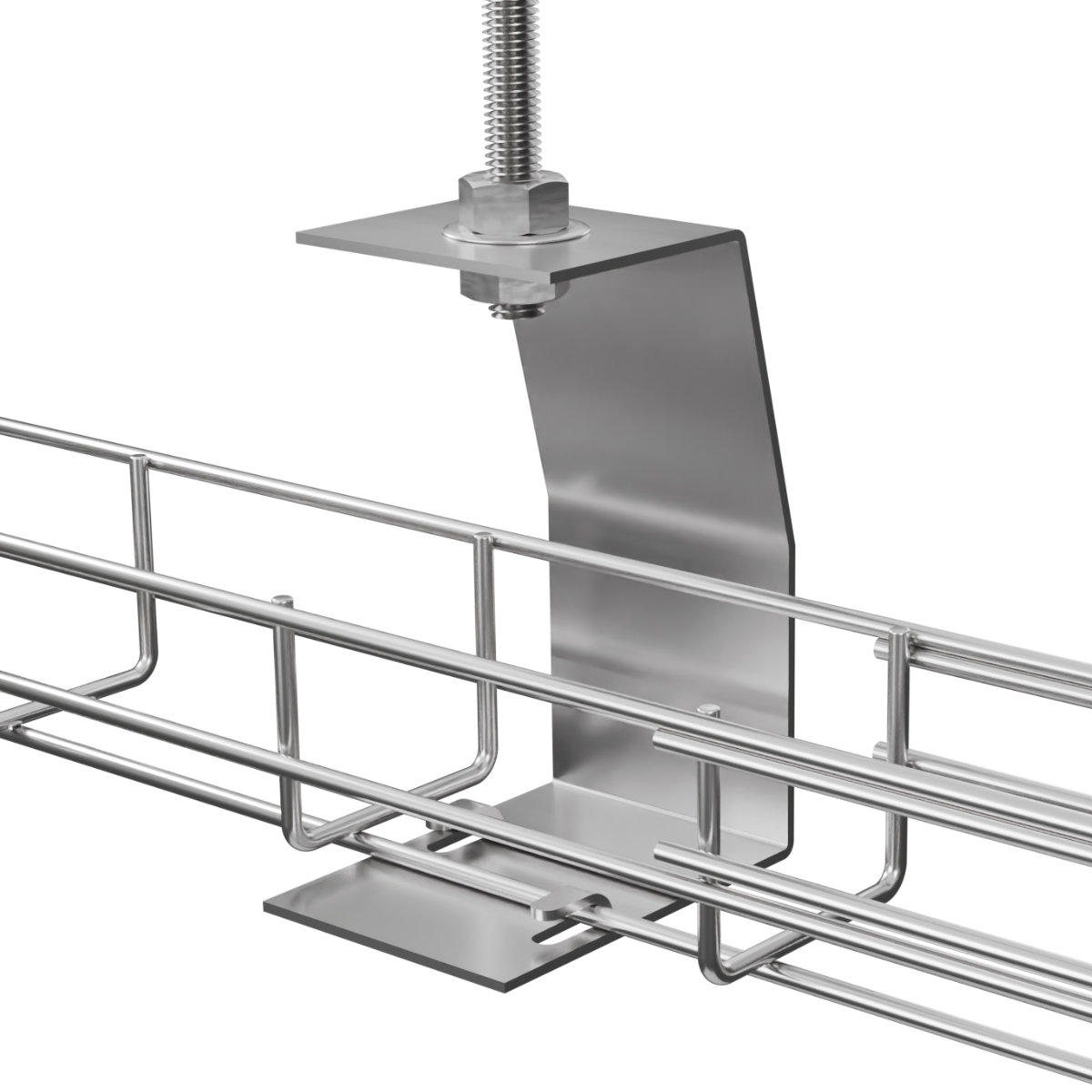

The central hanger is designed for fastening of the wire trays from ceiling together with a threaded rod Ø 8 mm and 2 nuts M 8. The cable tray is inserted into the prepared tabs, the ends of the tabs are squeezed and the tray is attached to the hanger.
