Imagine ilustrativă
DZNP_V_EN
| Cod Ean | 8595568940032 |
| Cod vamal | 72169180 |
| Greutate | 0,2510 kg/pcs |
| Acoperire de suprafată | Pre-Galvanized |
| Lătime | 52 mm |
| Înăltime | 20 mm |
| Lungime | 300 mm |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Grosimea foii de tablă | 2 mm |

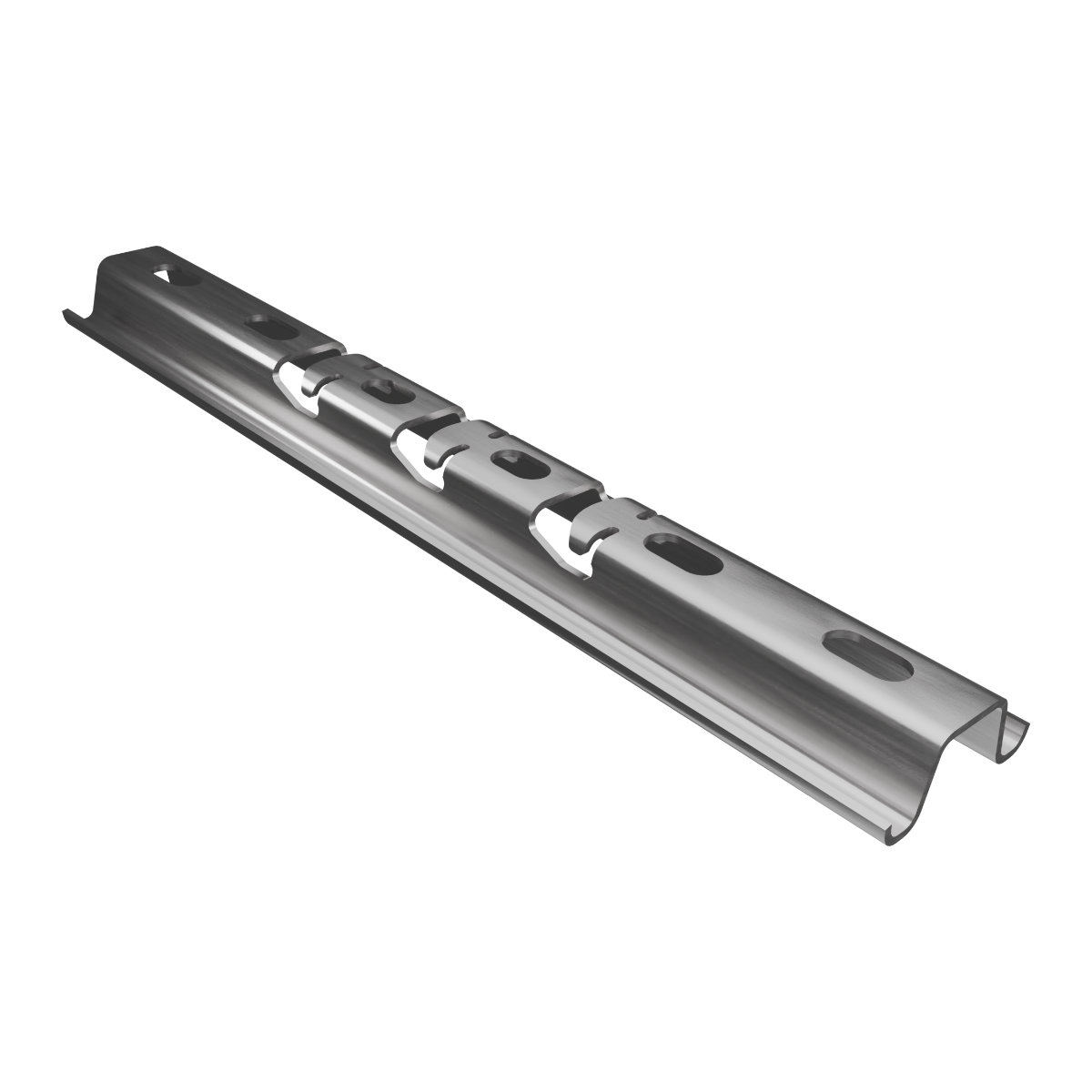

The supporting profile is used to assemble the ascending route using wire trays. The profile can be placed on the wall, ceiling or used as a hinge on threaded rods.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
