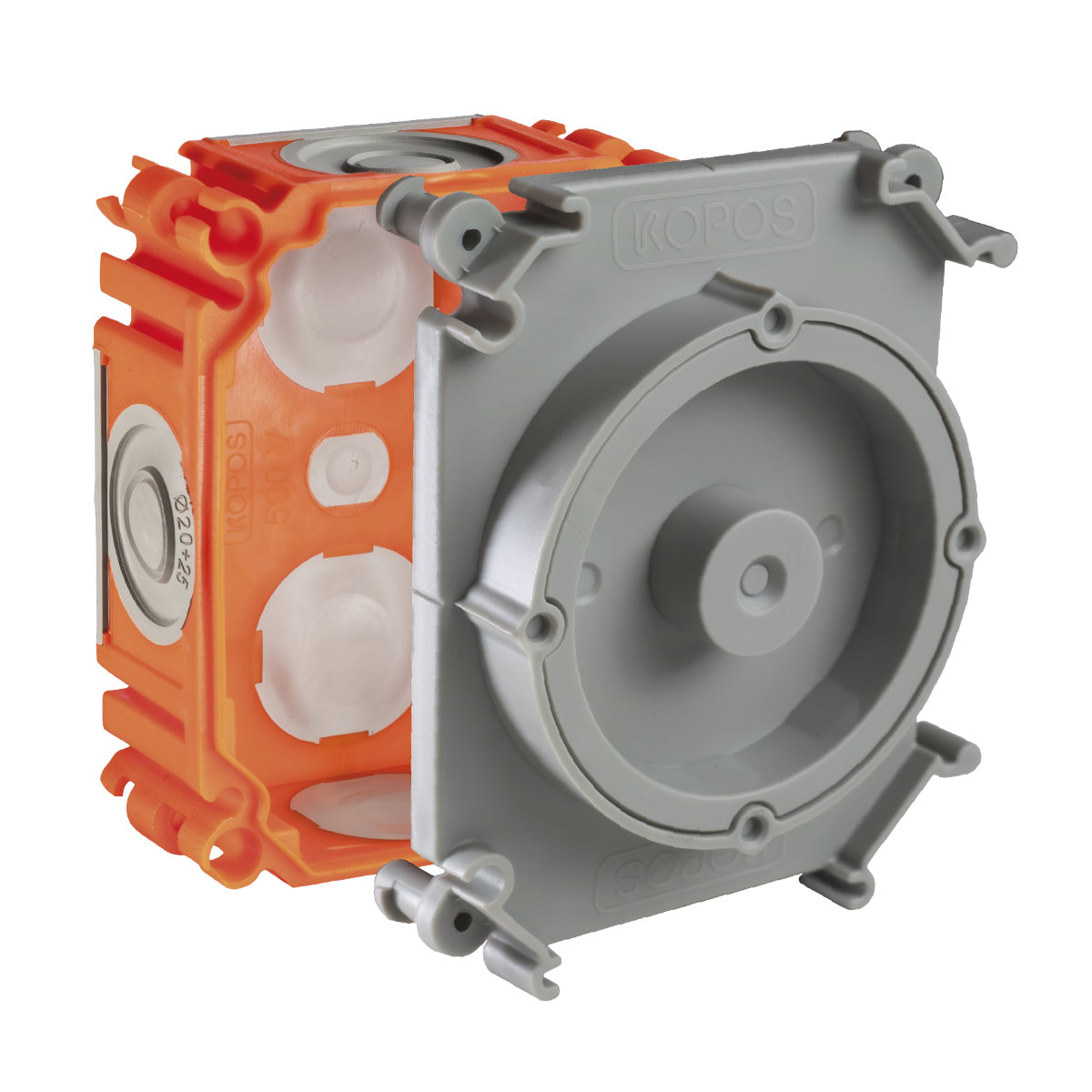

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
Cod Ean8595568938602
Cod vamal39259080
Greutate0,0437 kg/pcs
Culoareorange + gray
MaterialPP
Material fără halogeniyes
Material fără plumbyes
Voltaj nominal400 V
Rezistența la temperatură-25 - 60 °C
Rezistență la temperatură pe termen scurt90 °C
Testat cu buclă incinsă650 °C

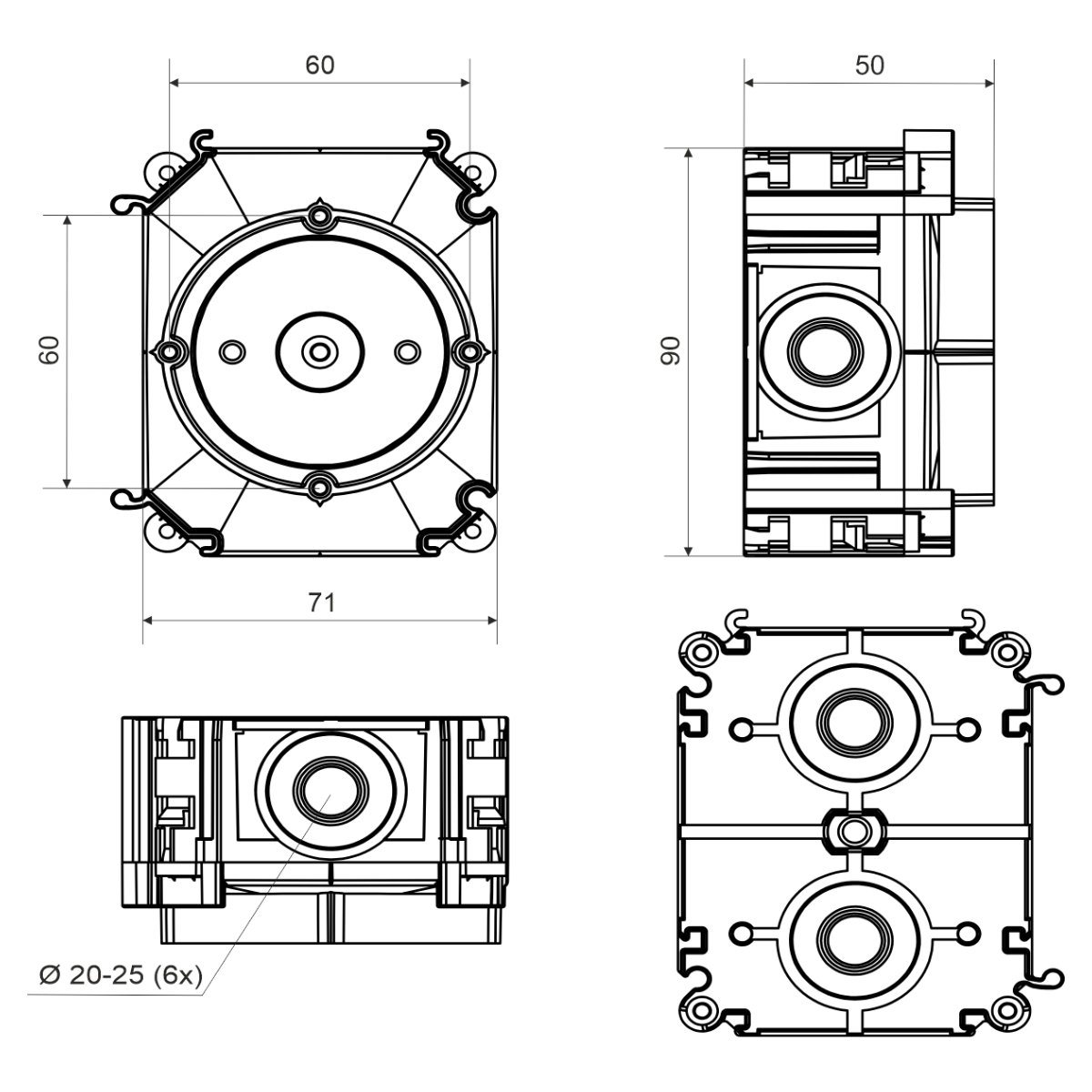

În medie60 mm
Lătime71 mm
Înăltime90 mm
Adâncime50 mm
Clasa de reacţie la foc a materialului de fondA1
Distanța dintre 2 doze71/90 mm
Descriere impachetarebox with shrink wrap lid

Instrument box for cast concrete - installation depth 50 mm. The lid of the box adapted to insert the holding magnet SB-M1 for fixing the box to the metal formwork.  The possibility of fixing the lid of the box with nails or screws to the wooden formwork. Sealed connection of the lid with the box. Pipe inlets fitted with a sealing membrane to prevent the concrete penetration. Possibility of fixed connection of boxes with a pitch of 71 mm and 90 mm. The possibility of fixing the box to the reinforcement (metal armature) using SB-MK 1 mounting wings (not included in the delivery). The possibility of using a box for double-sided assembly - mutual fixation using steel rods 6 mm KBP-8 (not included in the package).
