Cod Ean8595568937414
Cod vamal39173300
Greutate0,5850 kg/m
Material fără halogeniyes
Stabil la UV/Material stabil la UVyes
Temperatura de instalare-25 - 90 °C
Temperatura de lucru-55 - 90 °C
Rezistență mecanică450 N/20 cm
Diametru exterior125 mm
Diametru interior108 mm
Toleranțălength ± 0,5 m
Raza minimă de încovoiere500 mm
Recomandările producătorului
The producer recommends the installation of plastic pipes at temperatures above 0 ° C.
Clasa de reacţie la foc a materialului de fondA1
Tipuri de protecțieIP 40, if IP 67 sealing ring is used
StandardeČSN EN 61386-24
În stocstandard

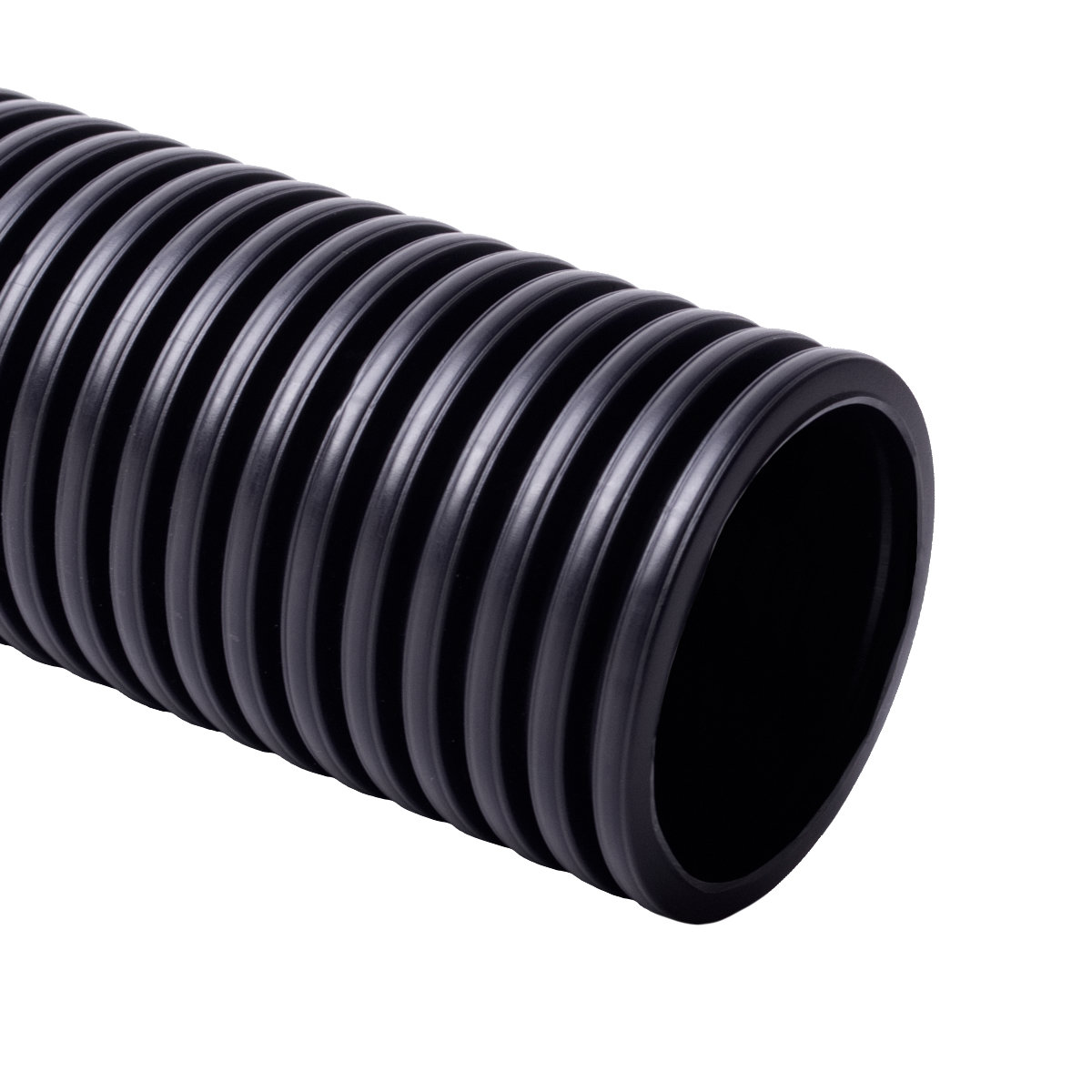

Halogen-free flexible double-coated pipe designed for mechanical protection of all kinds of power and data wiring. The pipes are made in compliance with ČSN EN 61386-24. Each coil is equipped with a pull-through string or wire that ensures easy cable insertion and a coupling on one end. When using a sealing ring, the protection class is IP 67. In case of mechanical compaction of layers above the protector, take care not to exceed the value of the load capacity of the protector - see catalogue PIPE PROTECTORS. The product may have common surface mechanical damage (crumpling, scratches, deformations of the ribs) to the outer wall of the pipe caused by production or transport technology, which does not affect the functionality of the product.
