Imagine ilustrativă
MDFZ 80_EN
| Cod Ean | 8595568936301 |
| Cod vamal | 39259080 |
| Greutate | 0,10 kg/pcs |
| Material | PP |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -25 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

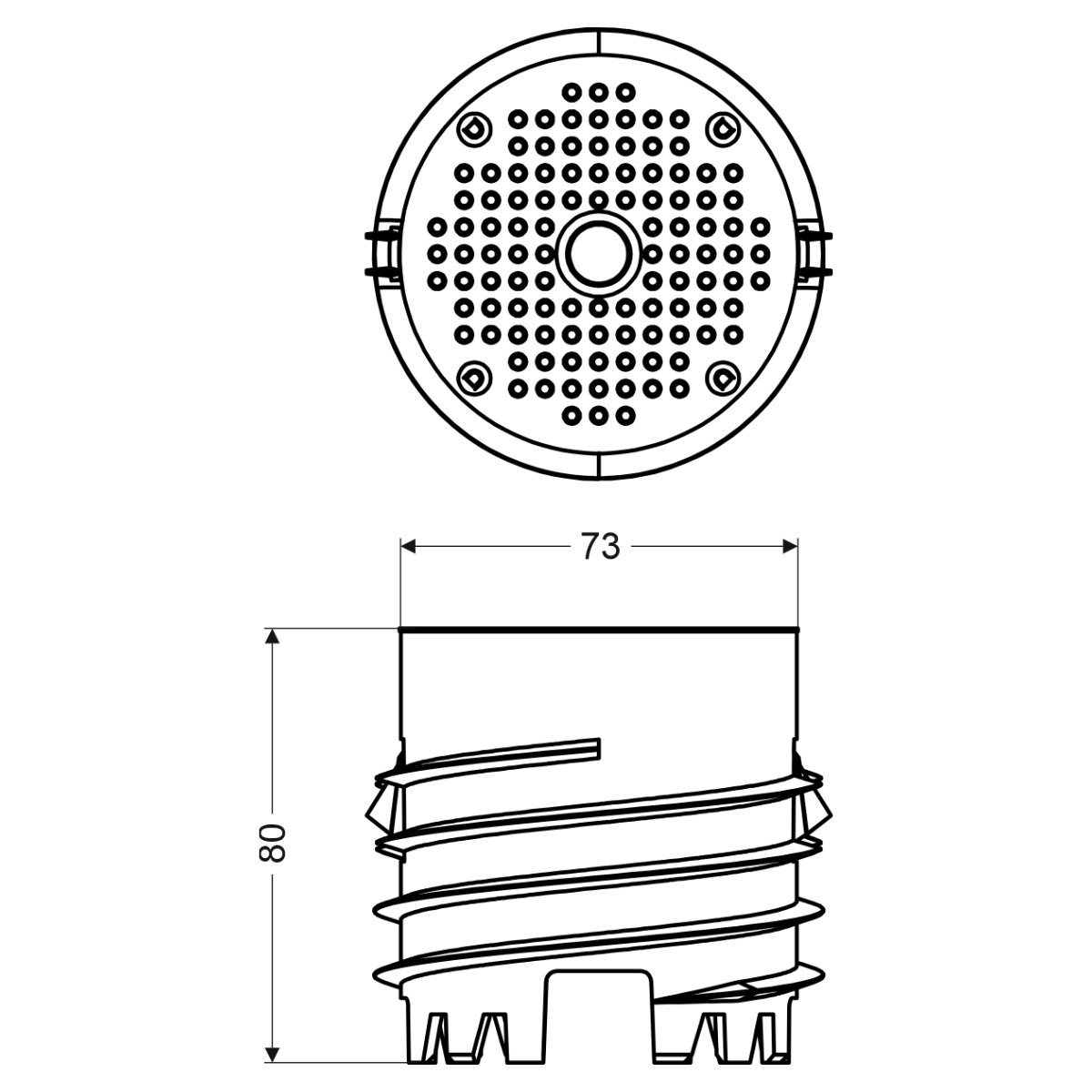

| În medie | 73 mm |
| Adâncime | 80 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Descriere impachetare individual mounting desk are packed in separate cardboards | |

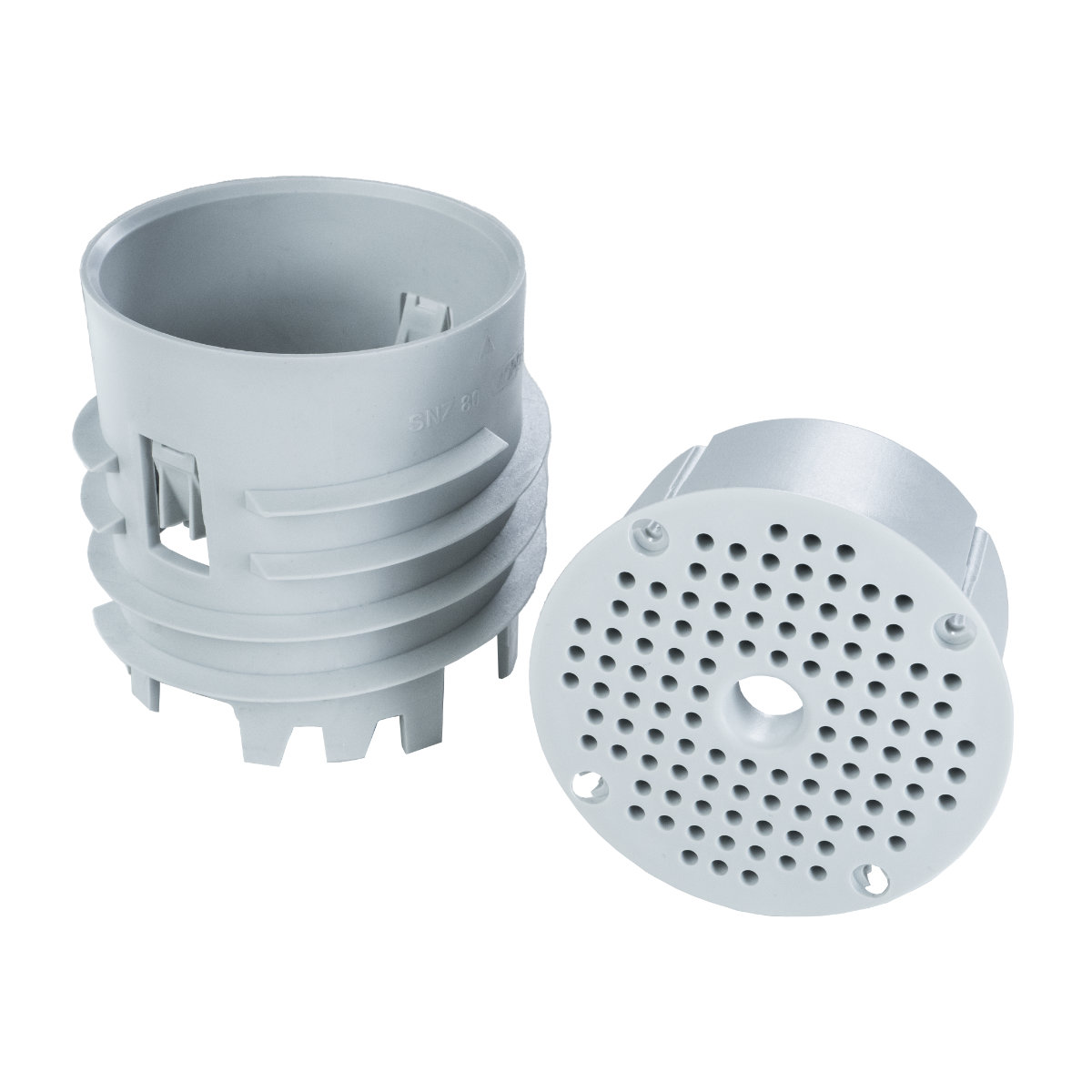

For the installation of smaller electrical devices (motion sensors, cameras, etc.) on insulated building facades with an insulation layer thickness of min. 80 mm. The mounting plate is suitable for facade polystyrenes and mineral wool. The box can also be mounted in finally made insulated facades. Maximum load 15N. The package includes a mounting plate carrier, mounting plate, assembly instructions and appropriate screws. For the first installation, it is necessary to buy the MDFZ 80/VDZ set, which also contains a manual drilling set. Robust construction.
