Cod Ean8595057632462
Cod vamal39259080
Greutate0.04 kg/pcs
Culoareorange
MaterialPP
Material fără halogeniyes
Voltaj nominal<= 400 V
Rezistența la temperatură-5 - 60 °C
Rezistență la temperatură pe termen scurt90 °C
Testat cu buclă incinsă650 °C

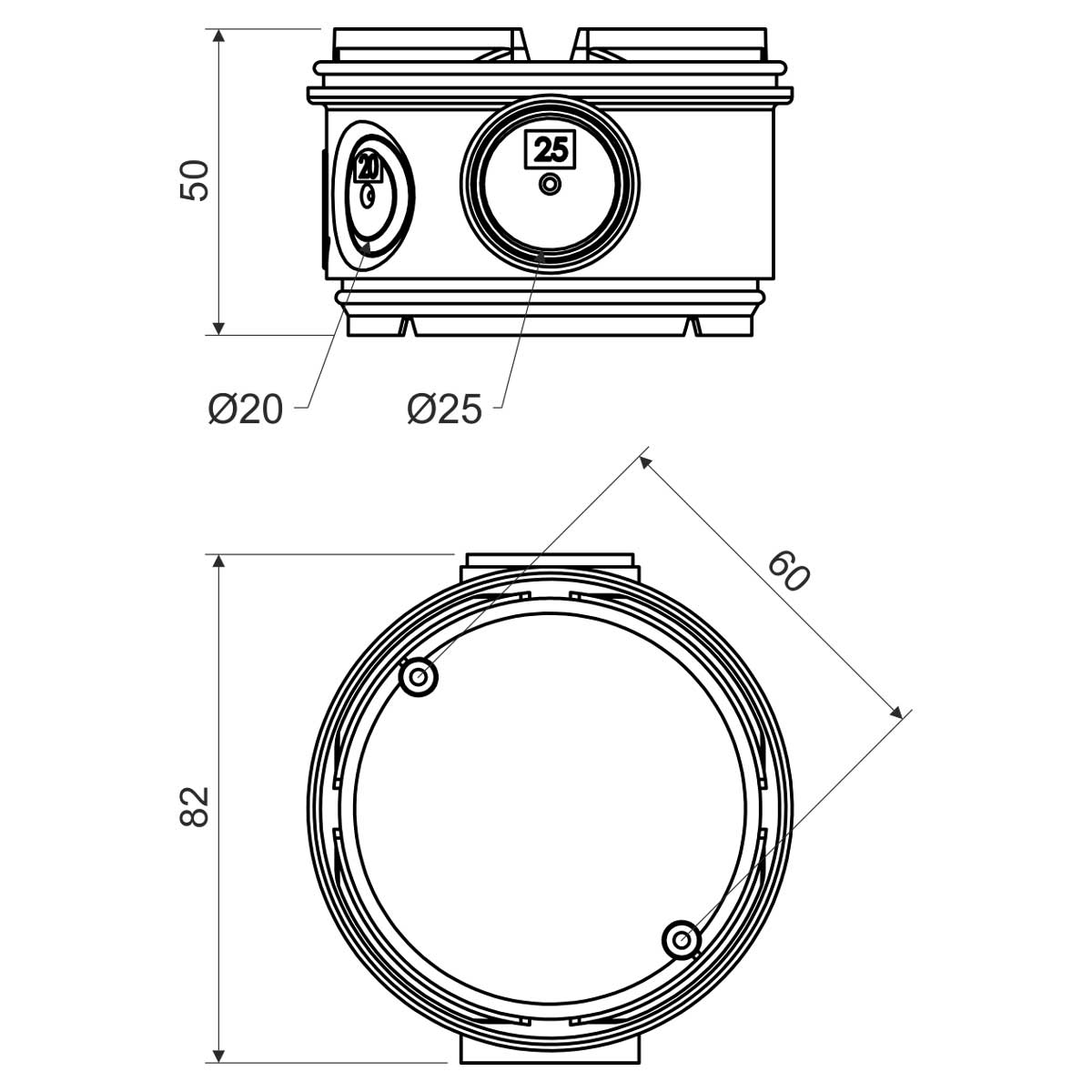

În medie78 mm
Adâncime49 mm
Clasa de reacție la focA1
Posibilitate de conectare a 2 doze in serieyes
StandardeČSN EN 60 670-1
Descriere impachetarepacked in shrink foil

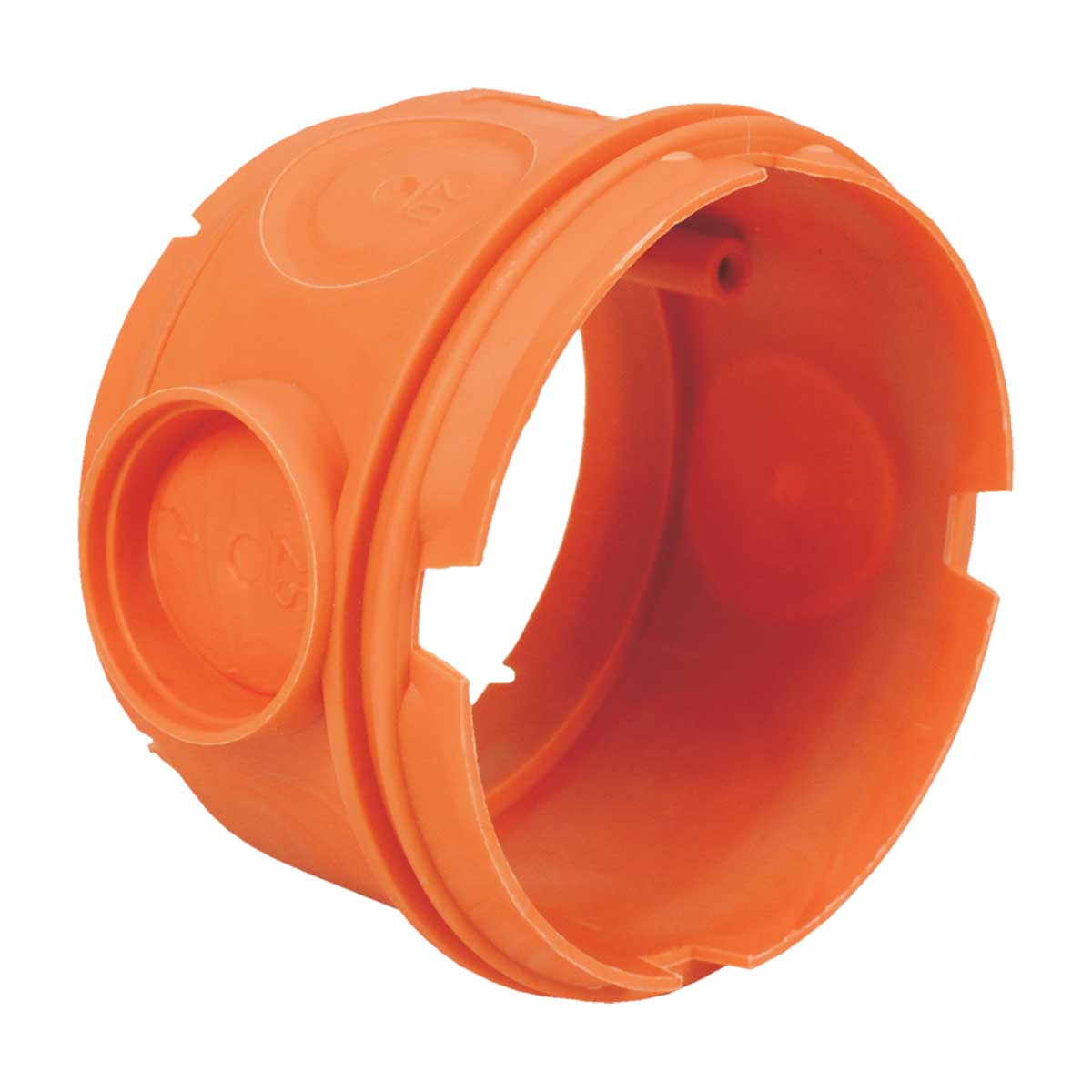

The body of the box is provided with a fixture for connection to the lid KBV and bottom KBS. The perimeter of the box body contains pre-marked holes to drill inlets for pipes of EN 20 and 25, inlets can easily be made in the desired locations using a drill and the respective drilling blade. The box can be fitted with terminal plate S-66, we recommend its mounting to the box body before assembly. For the double-socket the KBV-1 lid is necessary.
