| Cod Ean | 8595057629448 |
| Cod vamal | 73269098 |
| Greutate | 0,0041 kg/buc |
| Acoperire de suprafată | Non electrolytic plating Geomet |
| Rezistența la temperatură | -50 - +150 °C |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standarde | ČSN EN 61537 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |

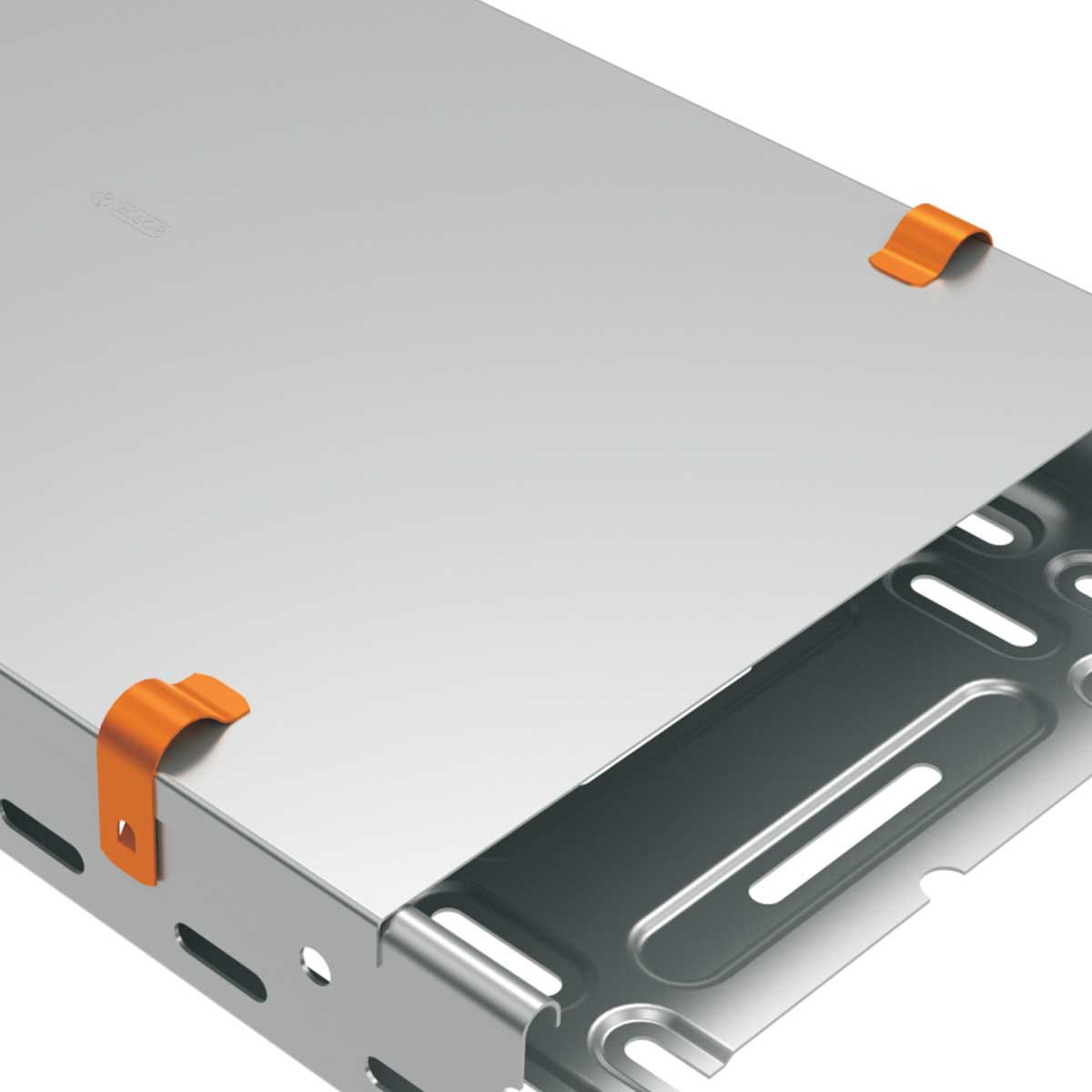

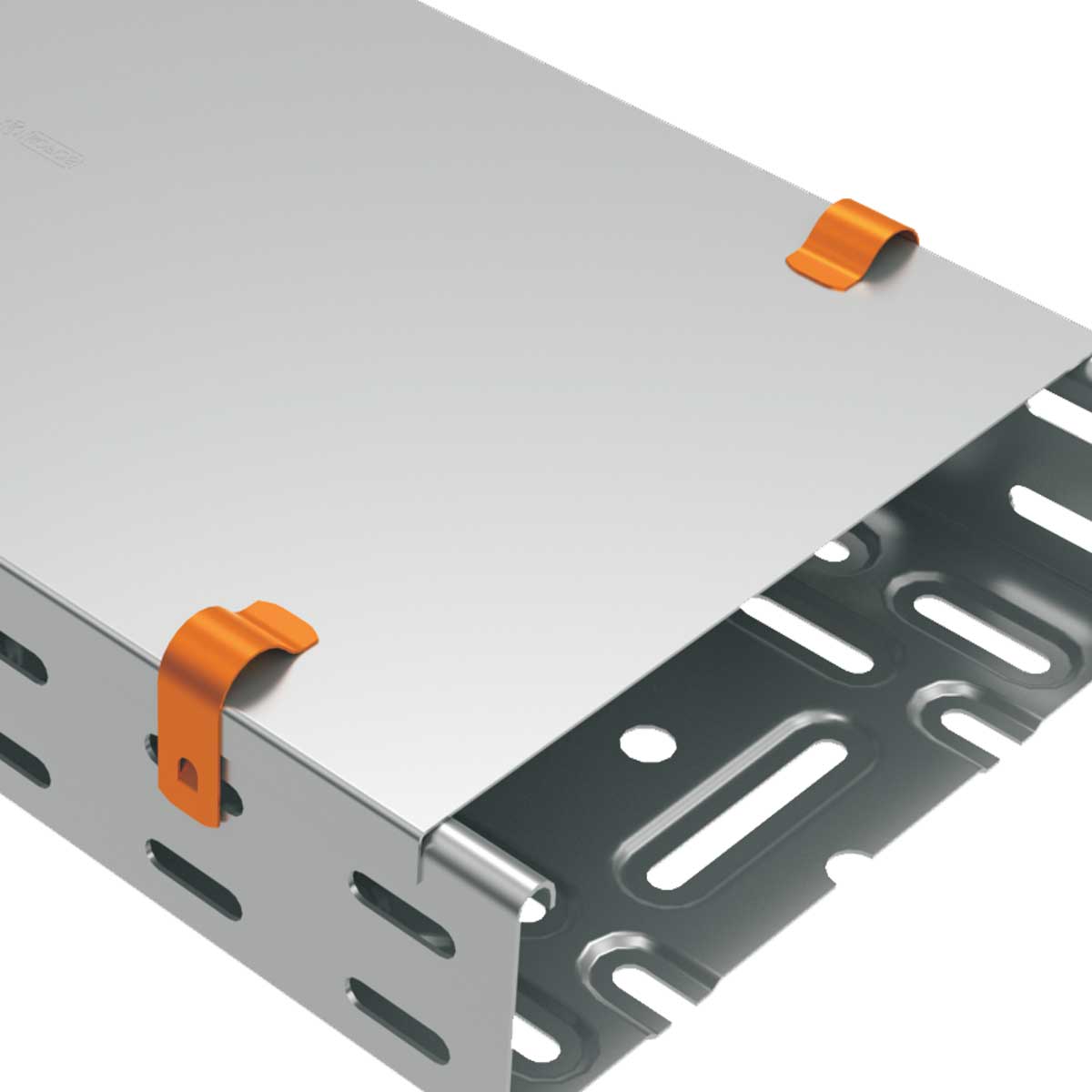

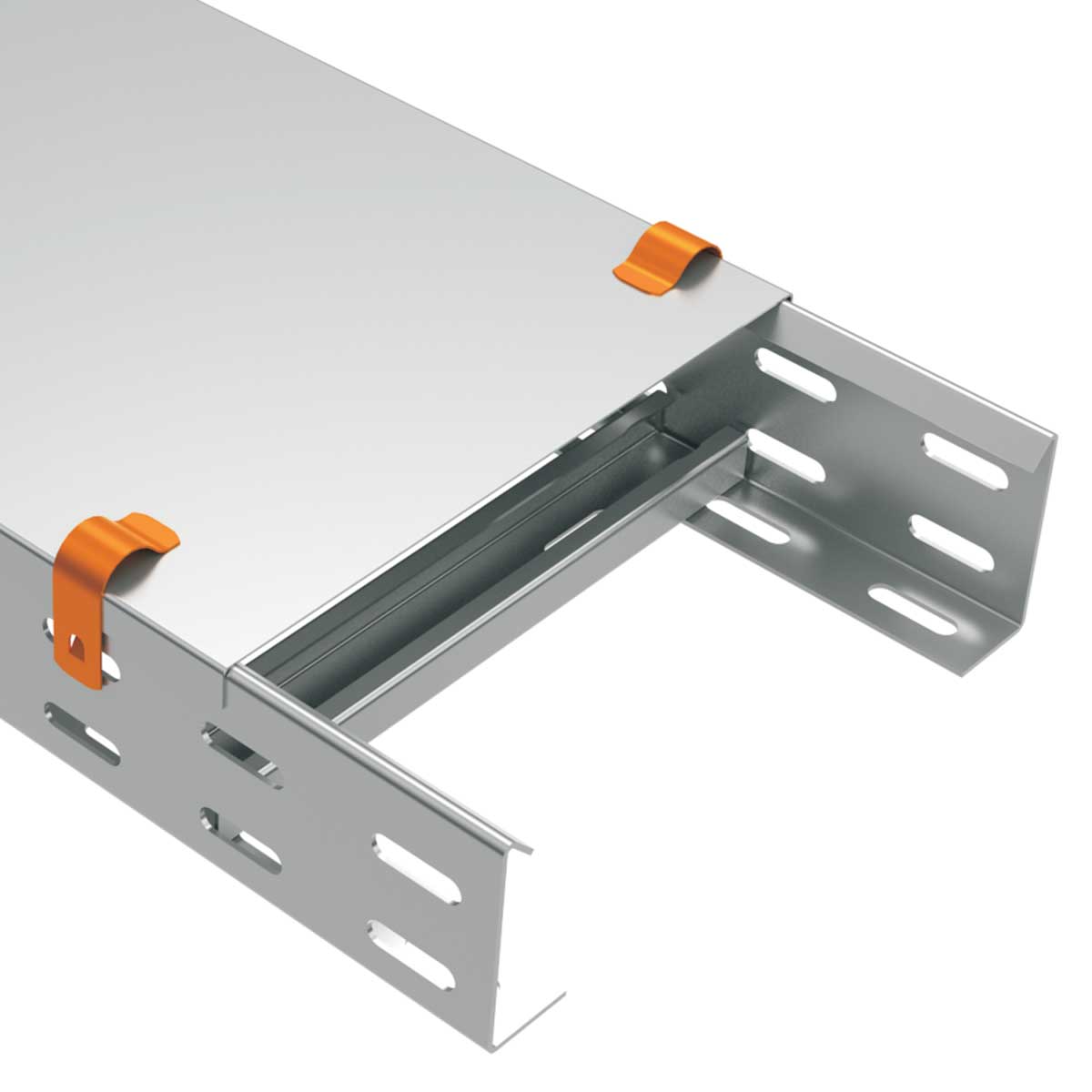

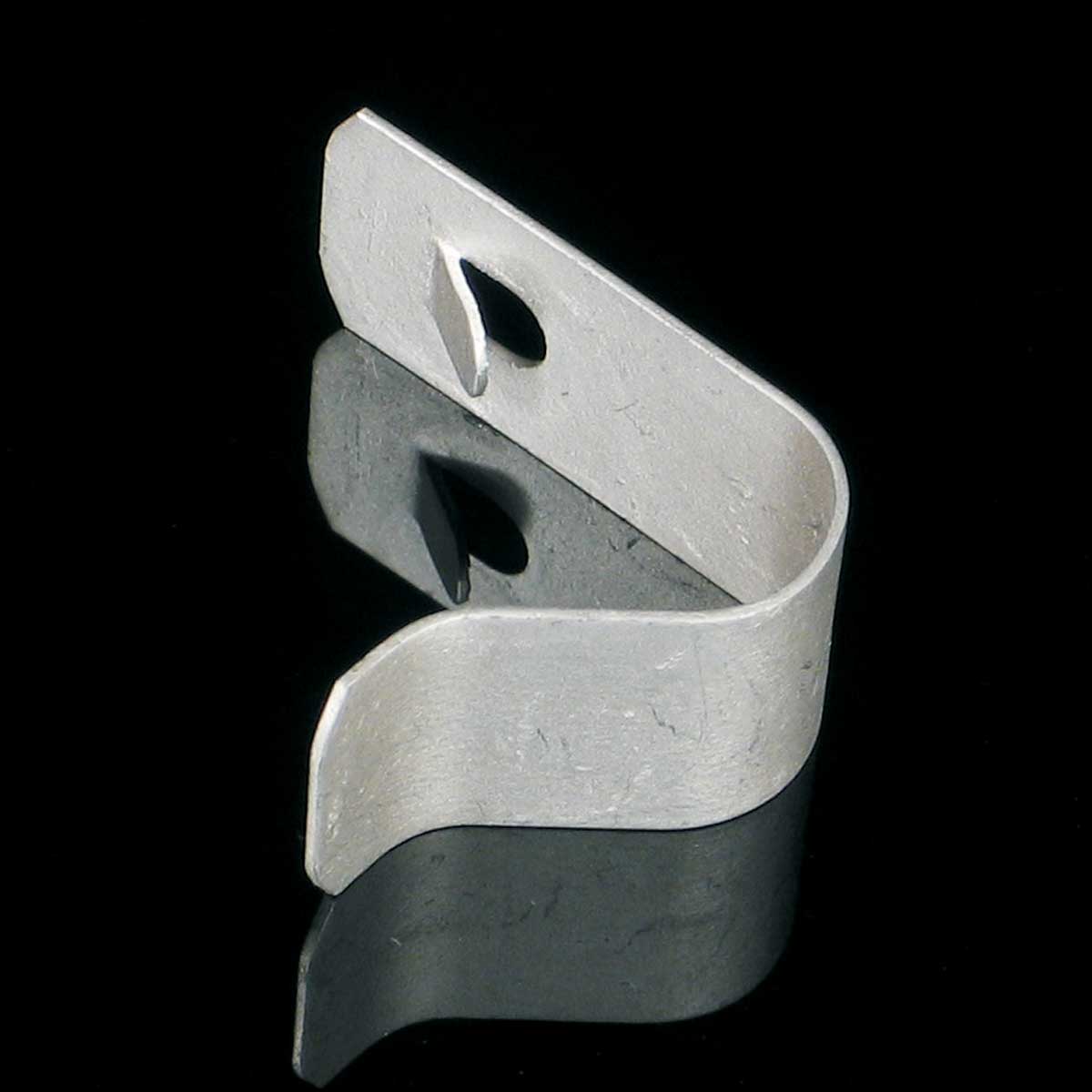

Is used for a bolt free attachment of the cover to the tray and to the accessories. The cover fixture is placed to the cover and the sidewall in the place of the opening and it is slightly pressed so that the fixture lock slides into the opening. Used for perforated and non-perforated trays; non-perforated trays have holes specially designed for these anchors.
Note for system with maintained functionality in fire:
You find more information in the catalogue Cable management systems - Fire resistant systems.
