Imagine ilustrativă
To download 3D models, please login or create an account and request access.
| Cod Ean | 8595057639690 |
| Cod vamal | 83024190 |
| Greutate | 0,3400 kg/buc |
| Acoperire de suprafată | Pre-Galvanized |
| Încarcatura maximă | 150 kg |

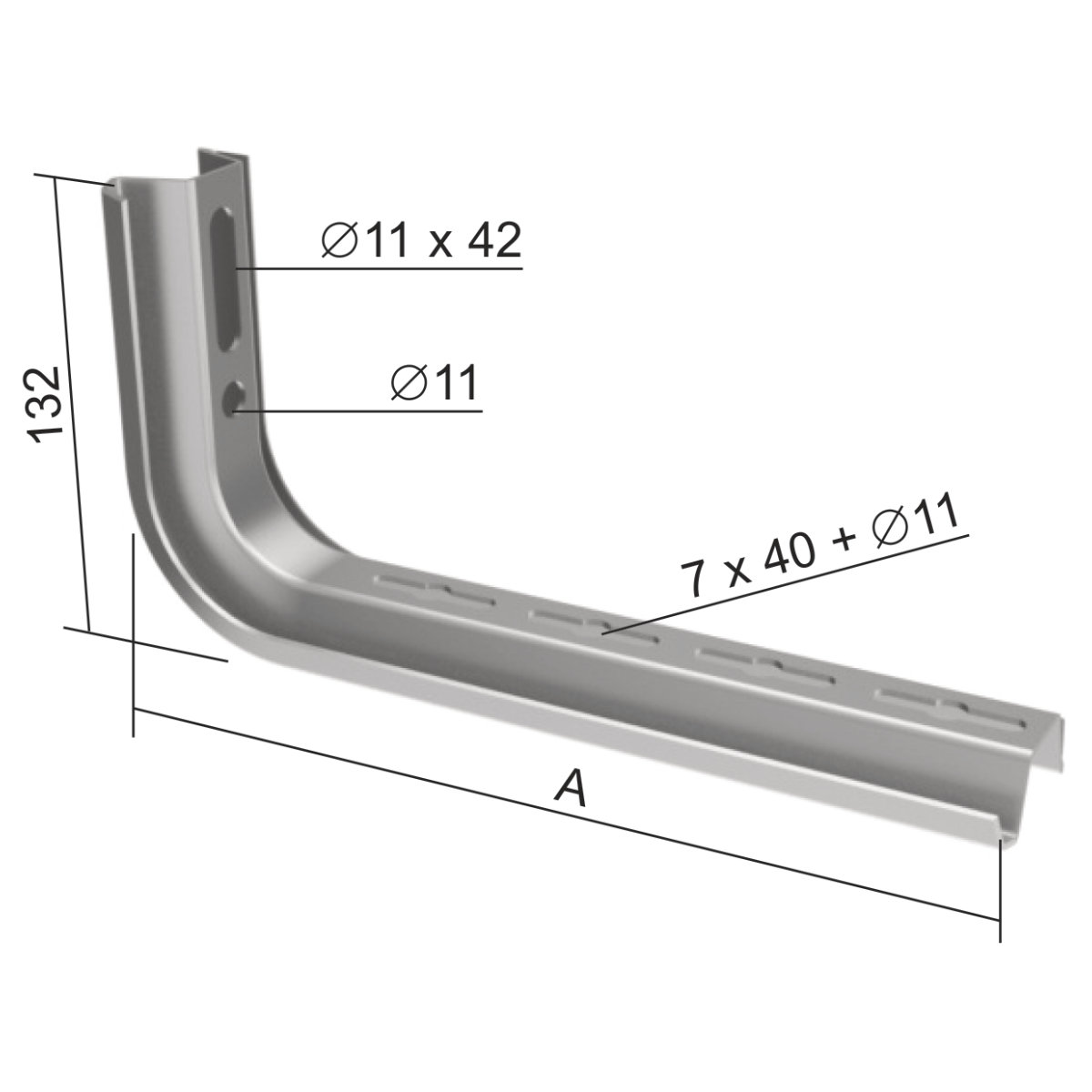

| Dimensiunea A | 163 mm |
| Pentru lățimea jgheabului de cabluri | 100 mm |

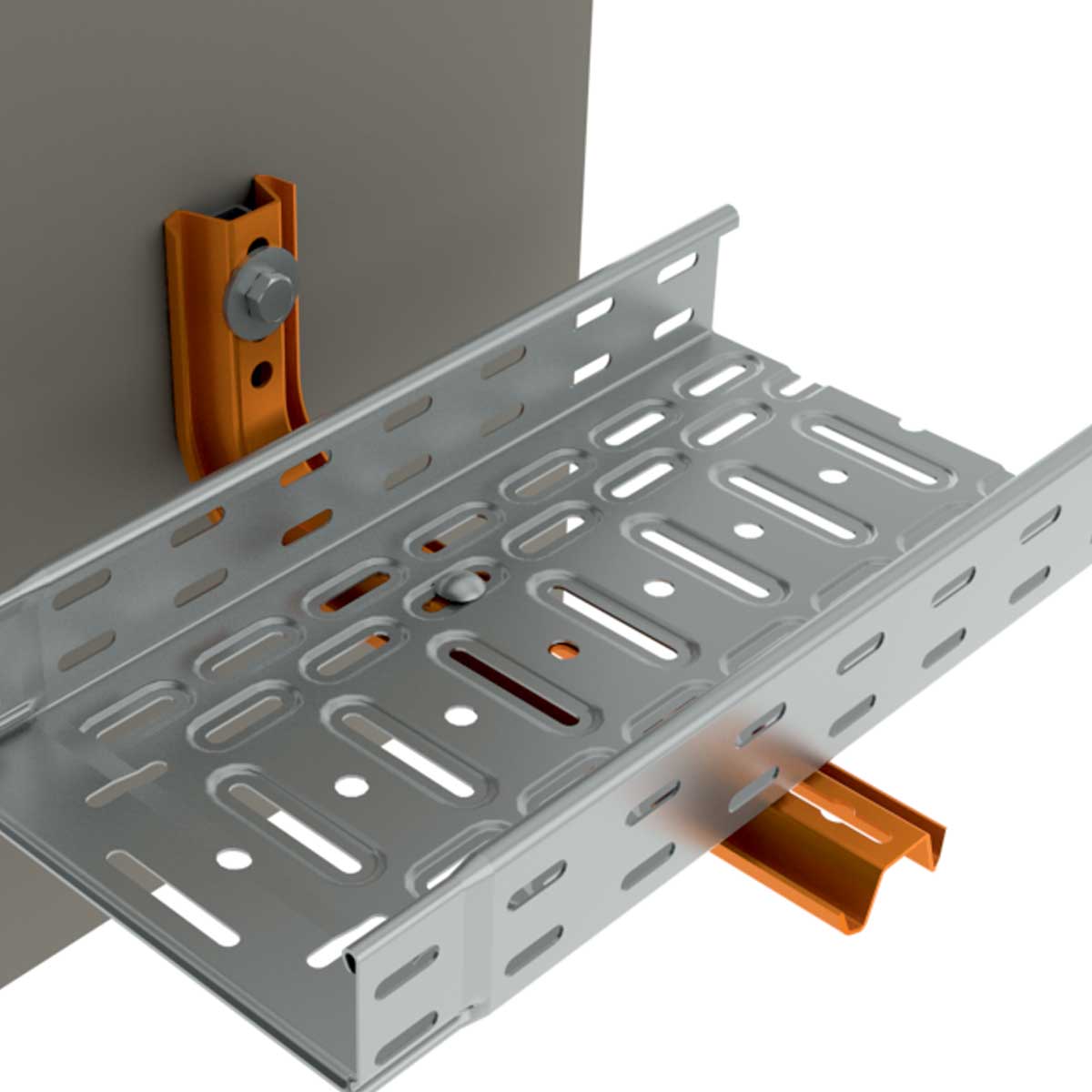

Holders are used on the wall or on the ceiling profile. To eliminate deformation during assembly the STS reinforcement is designated. The cable tray is fixed by using the bolts NSM 6X10. The installation is done by the anchors KPO 10X95 or KKZ 10, screws S 10X40 and washers PD 10.
