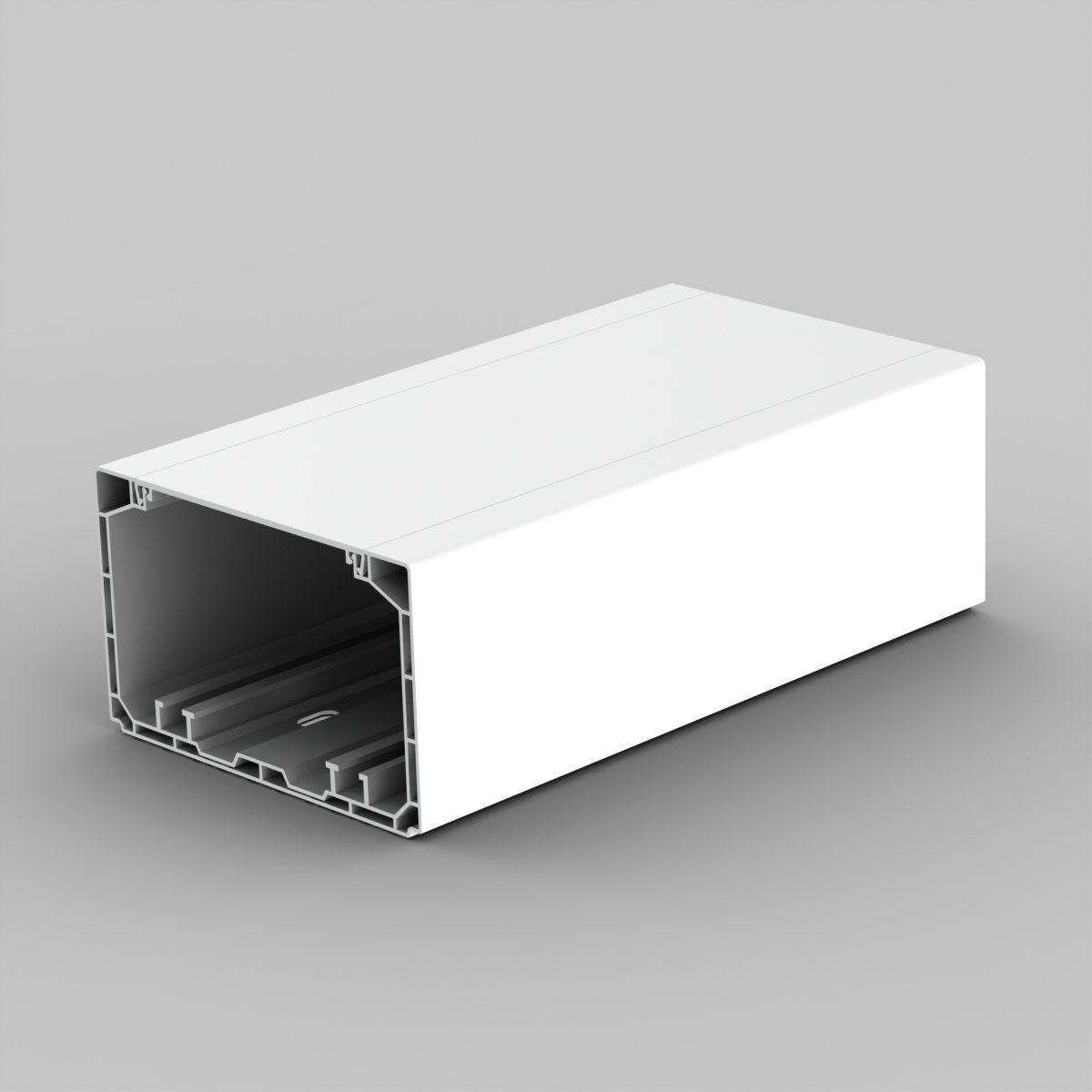

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
PK110X65D_EN
| Cod Ean | 8595568924636 |
| Cod vamal | 39259020 |
| Greutate | 1,2000 kg/m |
| Culoare | white |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |
| Ansamblu Quick lid instalation is done by pressing it in the middle. | |
| Protectie mecanică | IK07 |
| Rezistență la impact | 1 J |
| Antibacterial | yes |

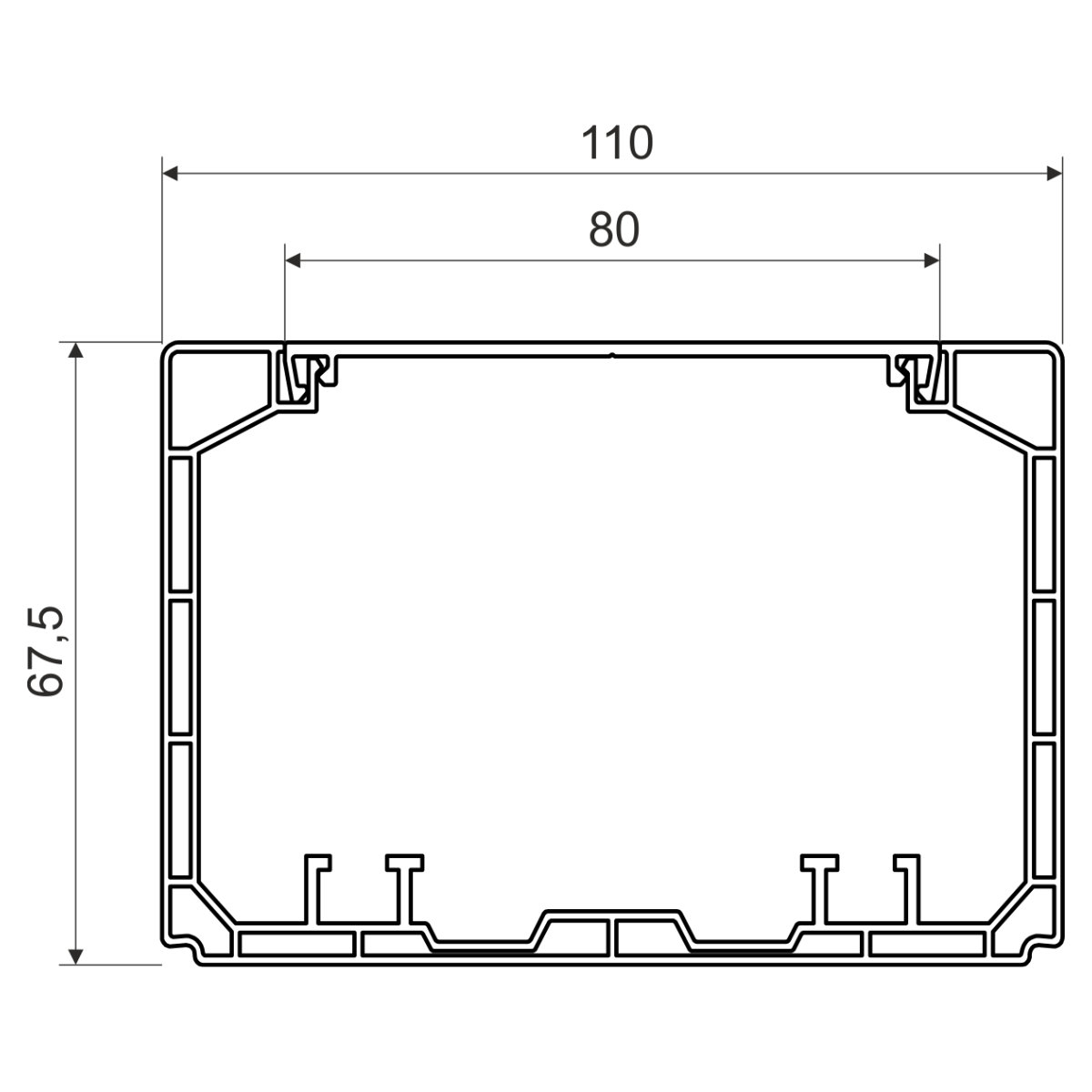

| Lătime | 110 mm |
| Înăltime | 67,5 mm |
| Lungime | 2 m |
| Zona interioară | 5500 mm2 |
| Toleranță The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Utilizare they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use. | |
| Recomandările producătorului When mounting SK 40X33 into trunking, you cannot use devices with a greater mounting depth, e.g. with a surge protection device. The producer recommends checking the depth of a particular device before installating. To install devices with very round corners, KOPOS recommends using of the KP PK instrument box and drilling the hole in the lid using the VPT 64 drill. | |
| Zonă cu pericol de explozie Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 40 |
| Standarde | ČSN EN 50 085-1 |
| Descriere impachetare | package - cardboard |
| Cu folie de protecţie | yes |

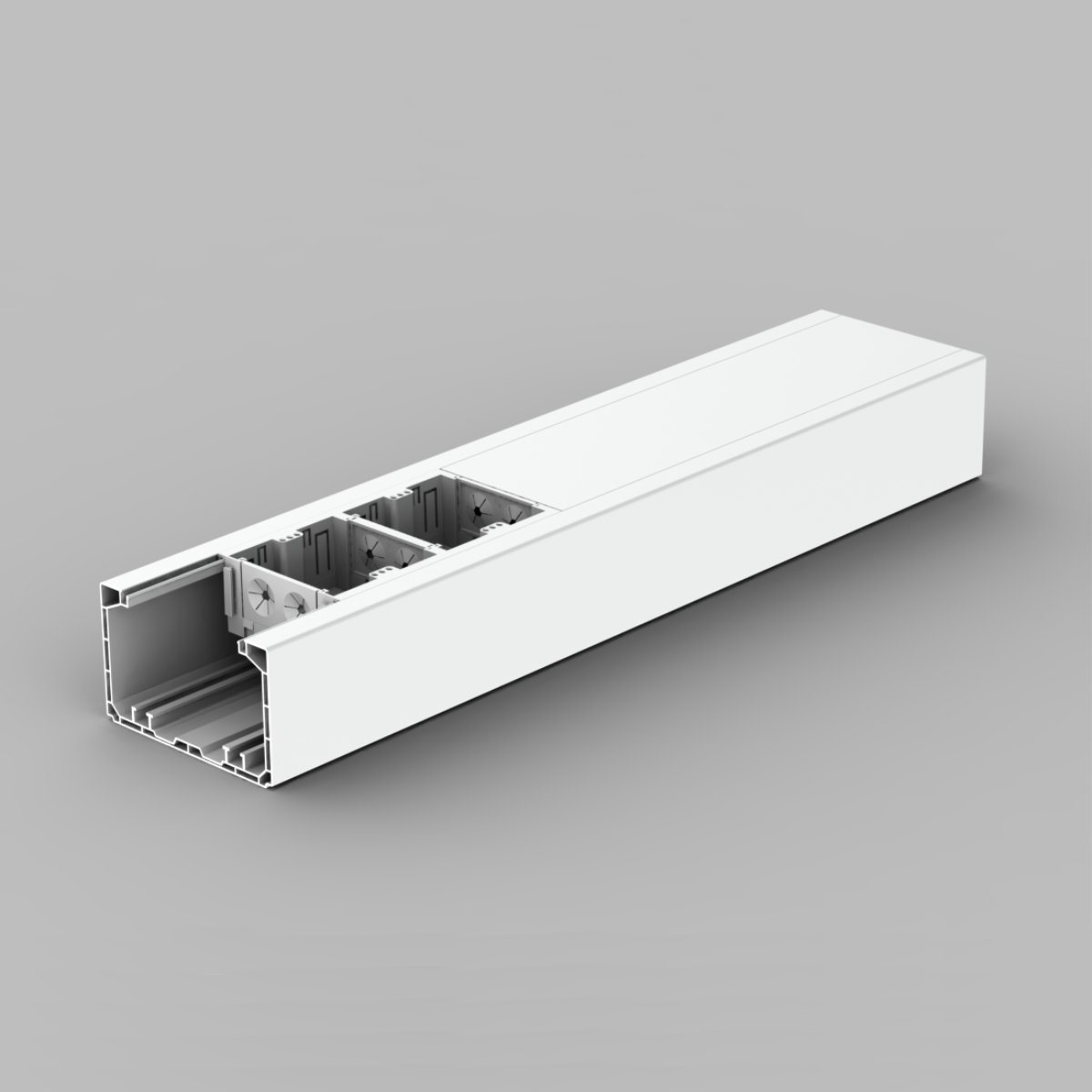

Designed for inserting power and communication circuits, security lines and other lines. Individual lines can be electromagnetically shielded by inserting a shielding canal, which is fixed to the trunking by clamps PSK 1. For classical instruments that are installed in a closed instrument box KP 80 PK clicked in the body of the canal or into an open instrument box KP PK installed in the bottom of the parapet trunkings. With using KOPOBOX MINI P, modular devices can be installed. There is no need to use any covers for the final installation of instrument. The lid is cut to the desired length and inserted next to the instrument.
