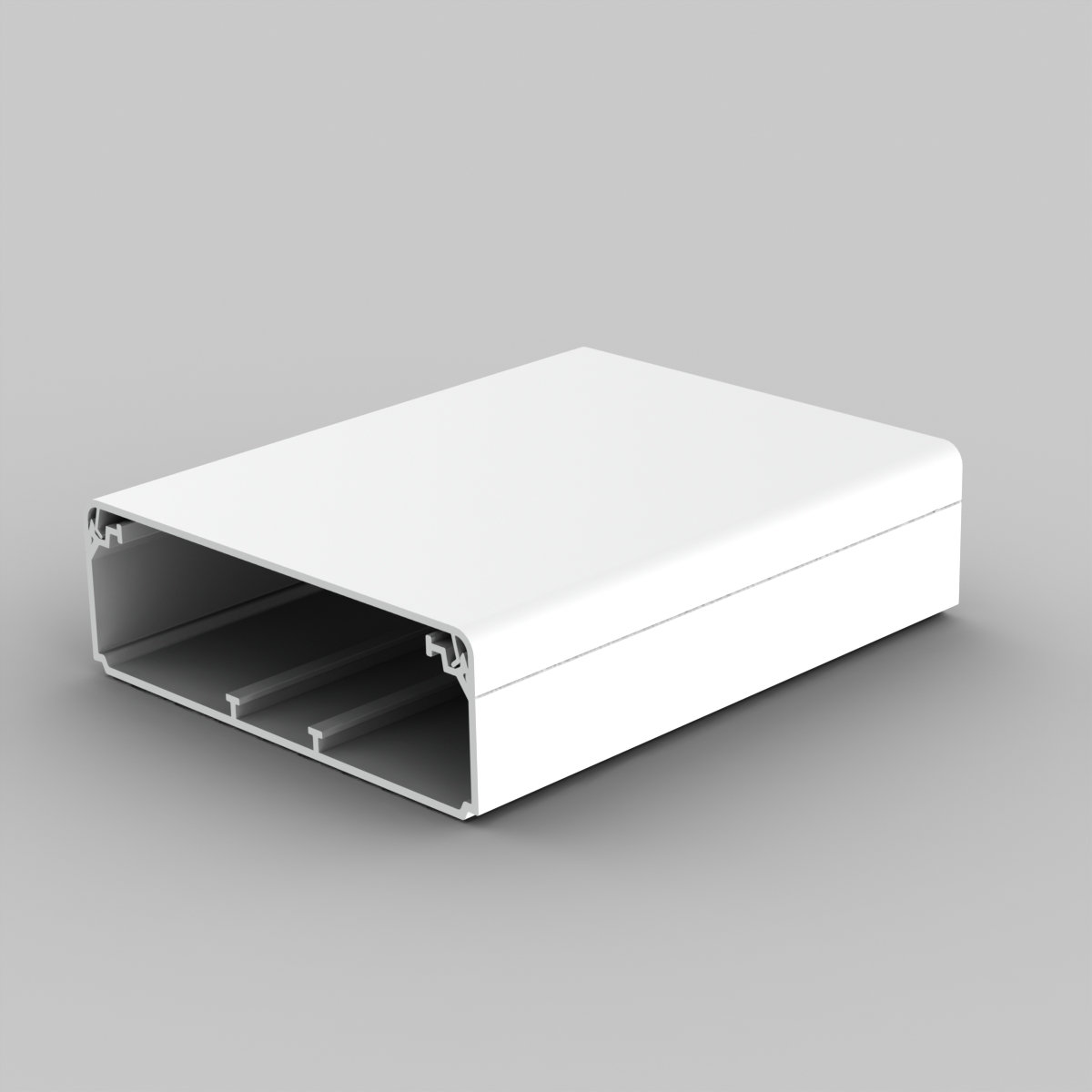

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
EKD120X40_EN
| Cod Ean | 8595057699328 |
| Cod vamal | 39259020 |
| Greutate | 1,0400 kg/m |
| Culoare | white |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |
| Rezistență la impact | 0,5 J |
| Antibacterial | yes |

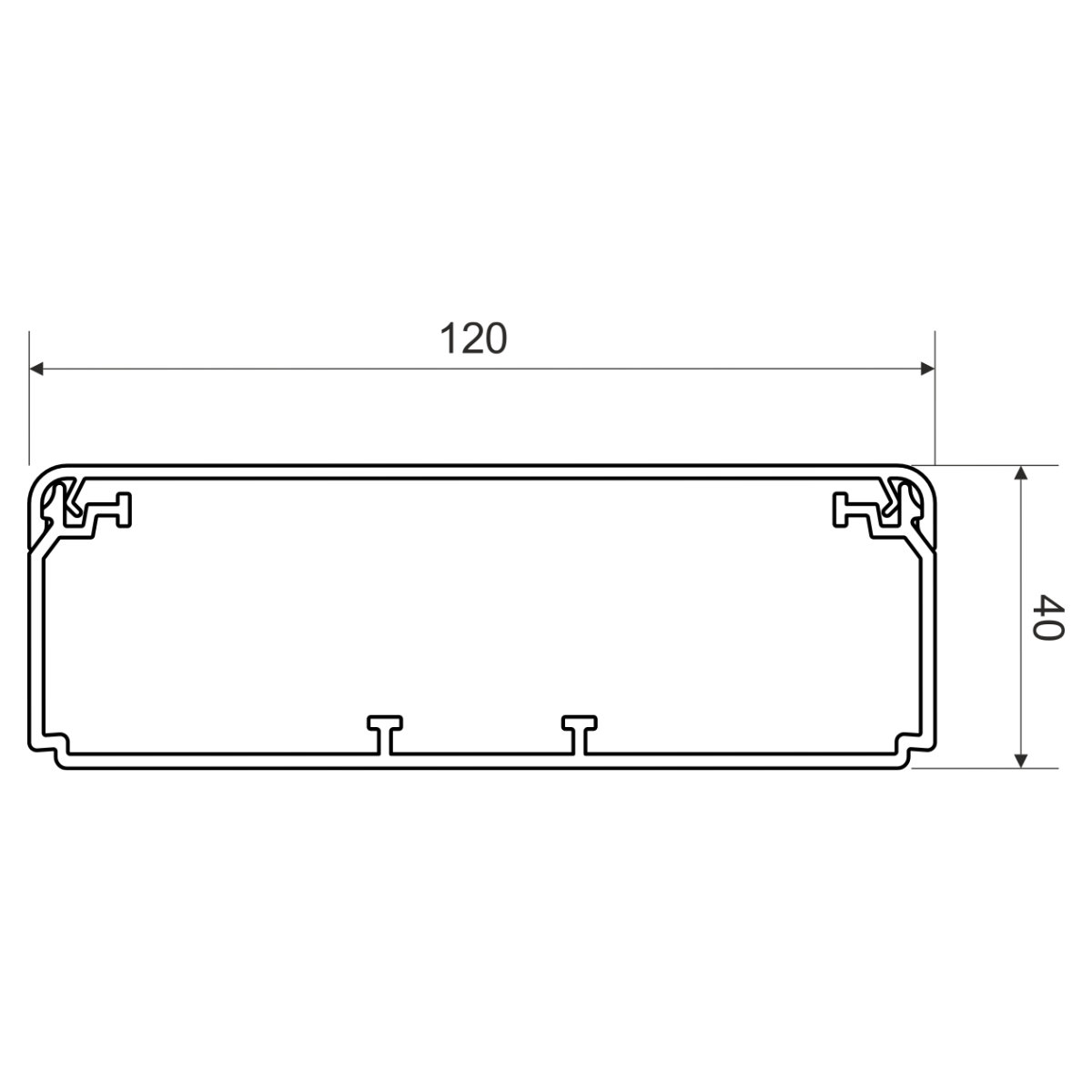

| Lătime | 120 mm |
| Înăltime | 40 mm |
| Lungime | 2 m |
| Zona interioară | 4000 mm2 |
| Toleranță The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Utilizare they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use. | |
| Zonă cu pericol de explozie Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 40 |
| Standarde | ČSN EN 50 085-1 |
| Descriere impachetare | package - foil |
It is designed for inserting multiple cables or cables of larger diameters. Possibility to insert PEKD 40 partition walls. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation. Spacers are included in the package – always 1 pc per 1 m.
