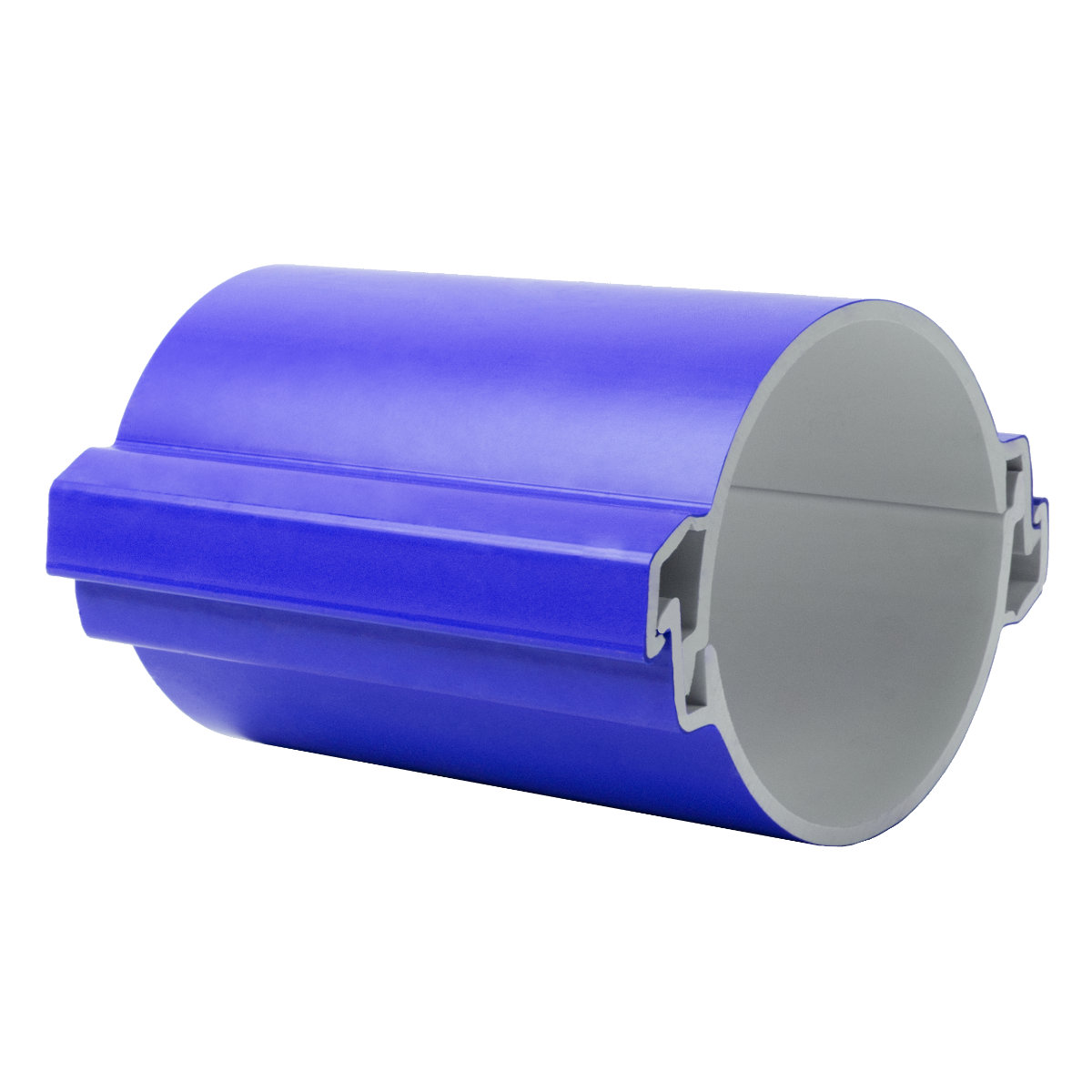

Imagine ilustrativă
KOPOHALF_PVC_EN
| Cod Ean | 8595568922021 |
| Cod vamal | 39172390 |
| Greutate | 3,3000 kg/m |
| Culoare | blue |
| Material | PVC |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | operating: -25 - +60 °C |
| Temperatura în timpul instalării | -5 - 60 °C |
| Rezistență mecanică | 750 N/20 cm |
| Lungime | 3 m |

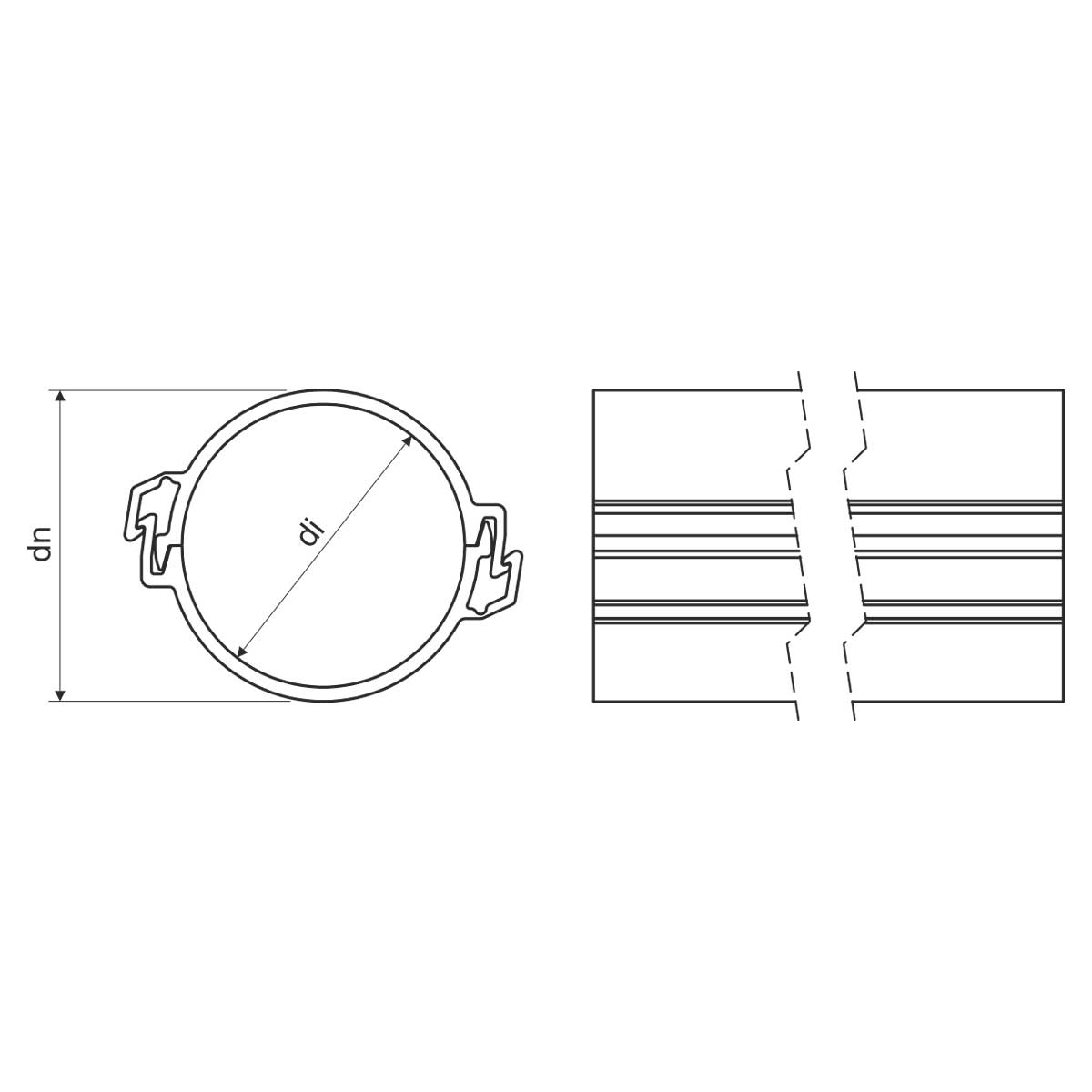

| Diametru exterior | 110 mm |
| Diametru interior (min.) | 97 mm |
| Toleranță | length ± 10 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 30 |
| Standarde | ČSN EN 61386-24 |
| Descriere impachetare | in distributed position |
Cable laying and for a laying-out of the energy and communication lines. Another possible application is a protection of already installed underground cables. The protectors consist of two identical parts. When installing, the cables are put in the bottom part and then the top part is snapped to the bottom one. Connecting of protectors is performed by overlapping joined lower parts with an upper part at length of approximately 30 cm. The divided cable ducts are manufactured and tested in accordance with standard ČSN EN 61386-24.
