Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KUZ_VOI_EN
| Cod Ean | 8595568923691 |
| Cod vamal | 39259080 |
| Greutate | 0,8734 kg/buc |
| Material | tube - PP, box - PC - ABS |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 500 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -25 - +60 °C |
| Testat cu buclă incinsă | 850 °C |

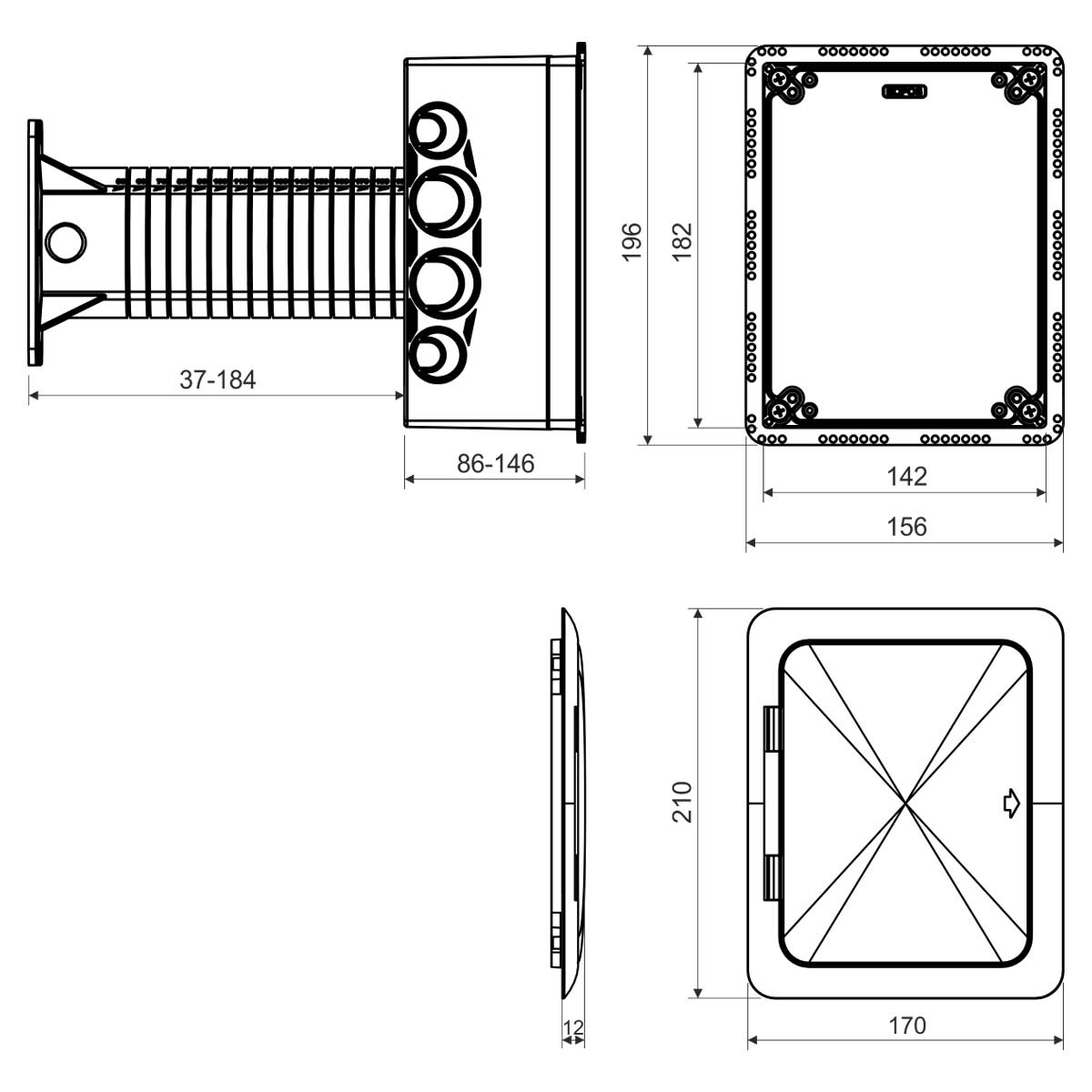

| Lătime | 156 mm |
| Înăltime | 196 mm |
| Adâncime | 273 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 30 - 44 |
| Descriere impachetare individual boxes are packed in separate cardboards | |

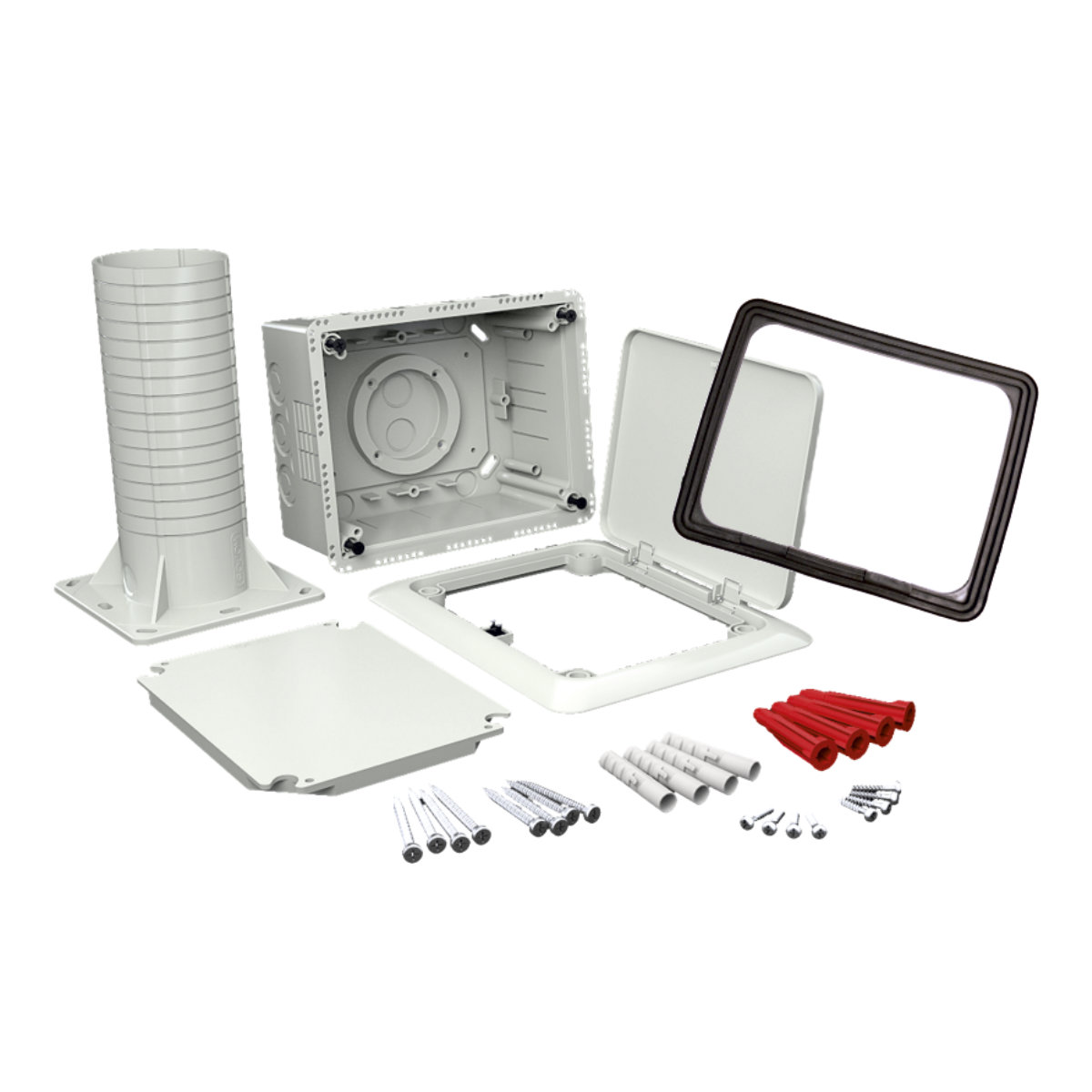

For installation in insulated building facades 120 - 300 mm thick. Use as a junction box, for lightning rod measuring clamp and other applications according to the customer. Eliminates thermal bridging. Adjustable depth of the box. the set includes a box, tube, external and internal insulation, mounting kit, opening lid VO 180, seal, internal mounting plate and stainless-steel screws when installing on external plaster. Robust construction. Protected by a European industrial design and Utility model trademark.
