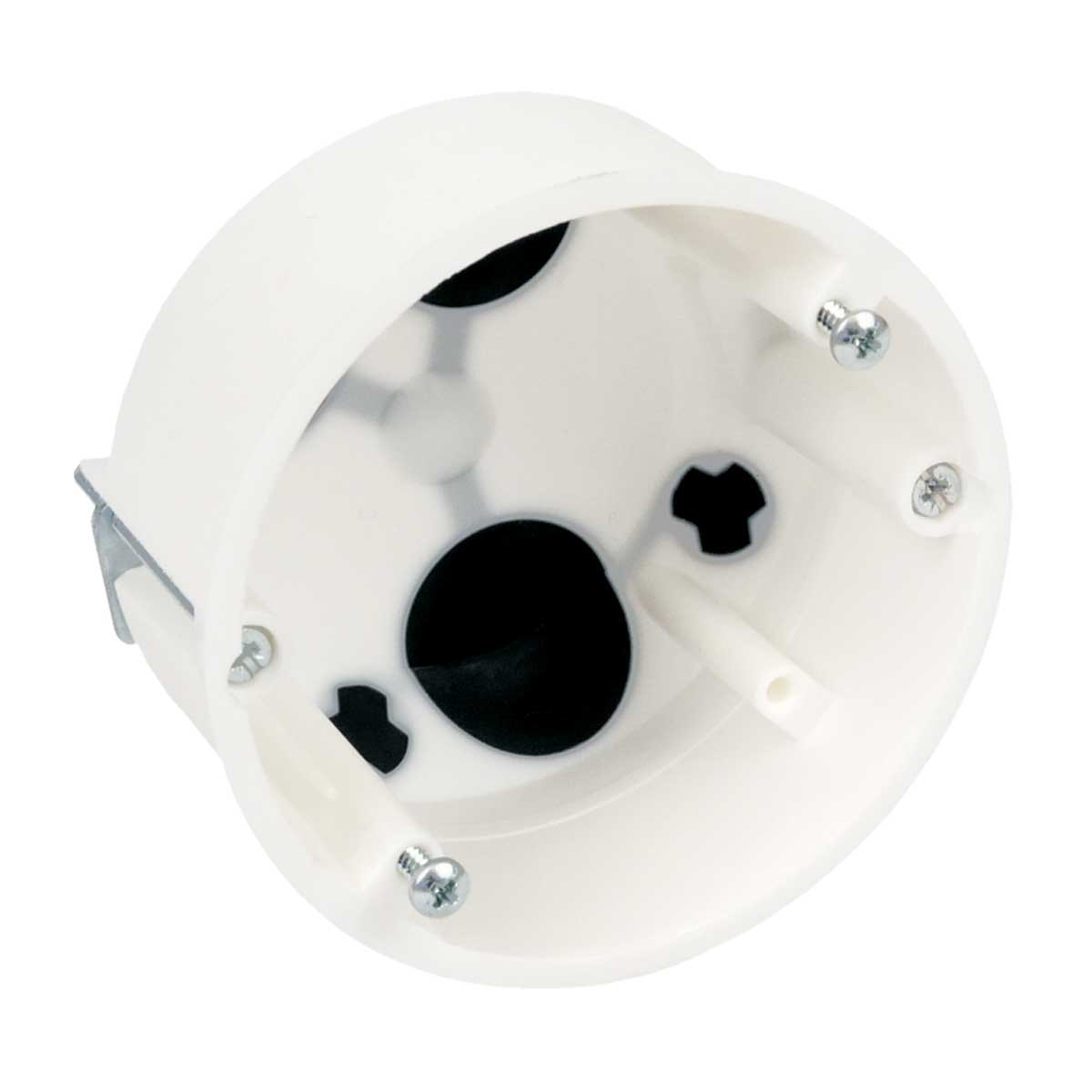

Imagine ilustrativă
KU68LD1HF_EN
| Cod Ean | 8595568910585 |
| Cod vamal | 39259080 |
| Greutate | 0,0277 kg/buc |
| Material | PP |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - +60 °C |
| Testat cu buclă incinsă | 850 °C |

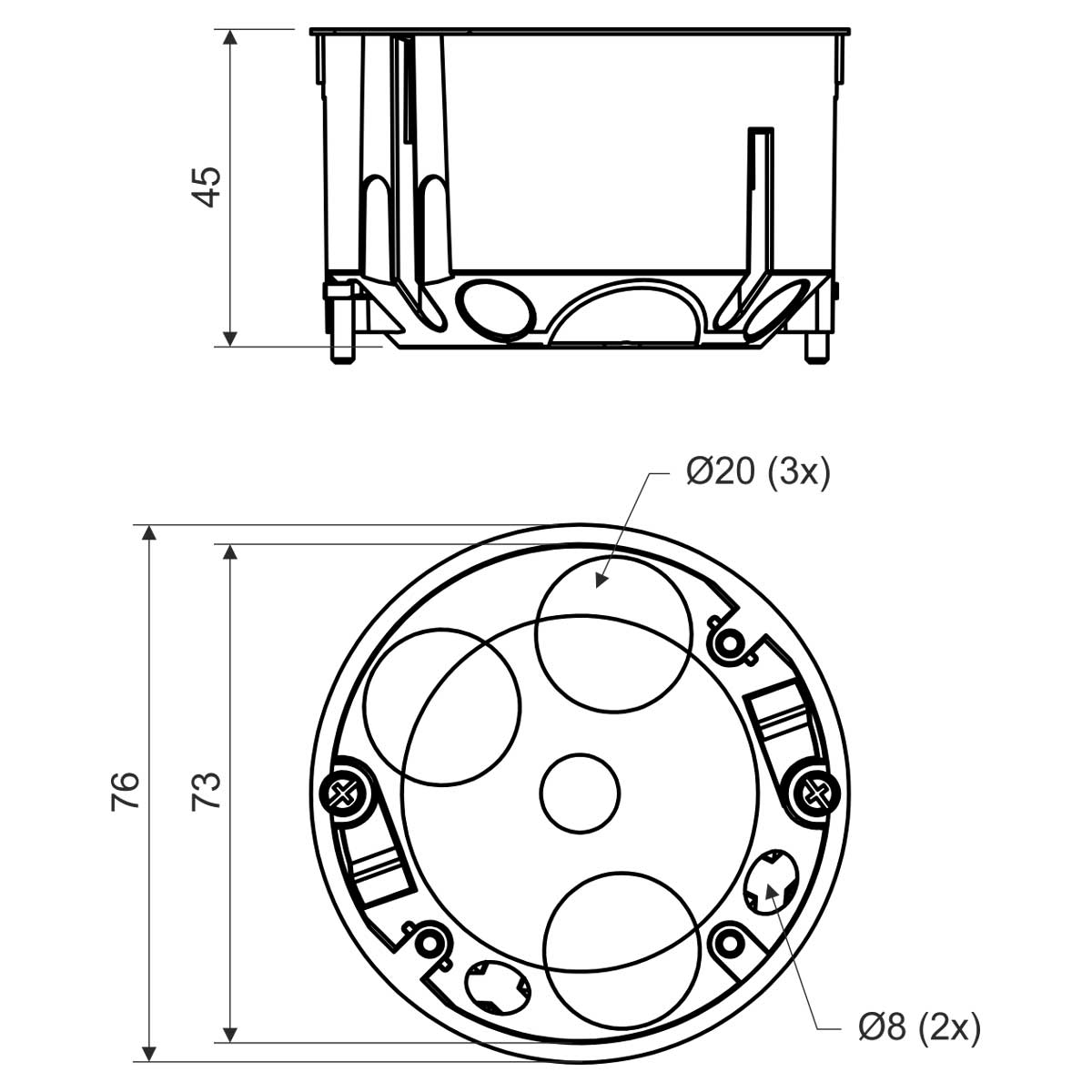

| În medie | 73 mm |
| Adâncime | 45 mm |
| Diametrul orificiului găurit (forat) | 73 mm |
| Recomandările producătorului For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Permite instalarea aparatajului dublu | yes |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare boxes fitted with screws for mounting box in plasterboard, device screws are fitted in boxes | |
For premises with increased need for protection of persons and property. Inlet openings made of flexible material. Cable installation is performed by perforating the membrane with a sharp tool (e.g. screwdriver) and then inserting the cable, or by extracting the pre-pressed membrane inlet. Air proofed even with inserted cable or pipe. Mounting screws are fitted with a triple thread for quick installation. Prevents airflow through the installation. When mounting, it is not necessary to countersink the plasterboard edge.
