Device floor box

Atasamente si certificari

Imagine ilustrativă

KPP 80 LB - krabice přístrojová podlahová

To download 3D models, please login or create an account and request access.

Datový list
KPP80_EN

Certifikace
Certificate ESČ
Conformity declaration
Declaration REACH
Declaration RoHS

Cod Ean	8595057690769
Cod vamal	39259080
Greutate	0,0972 kg/buc
Culoare	dark grey
Material	PA
Material fără halogeni	yes
Material fără plumb	yes
Cu suto-stingere	30 s
Rezistența la temperatură	-5 - +105 °C
Testat cu buclă incinsă	850 °C

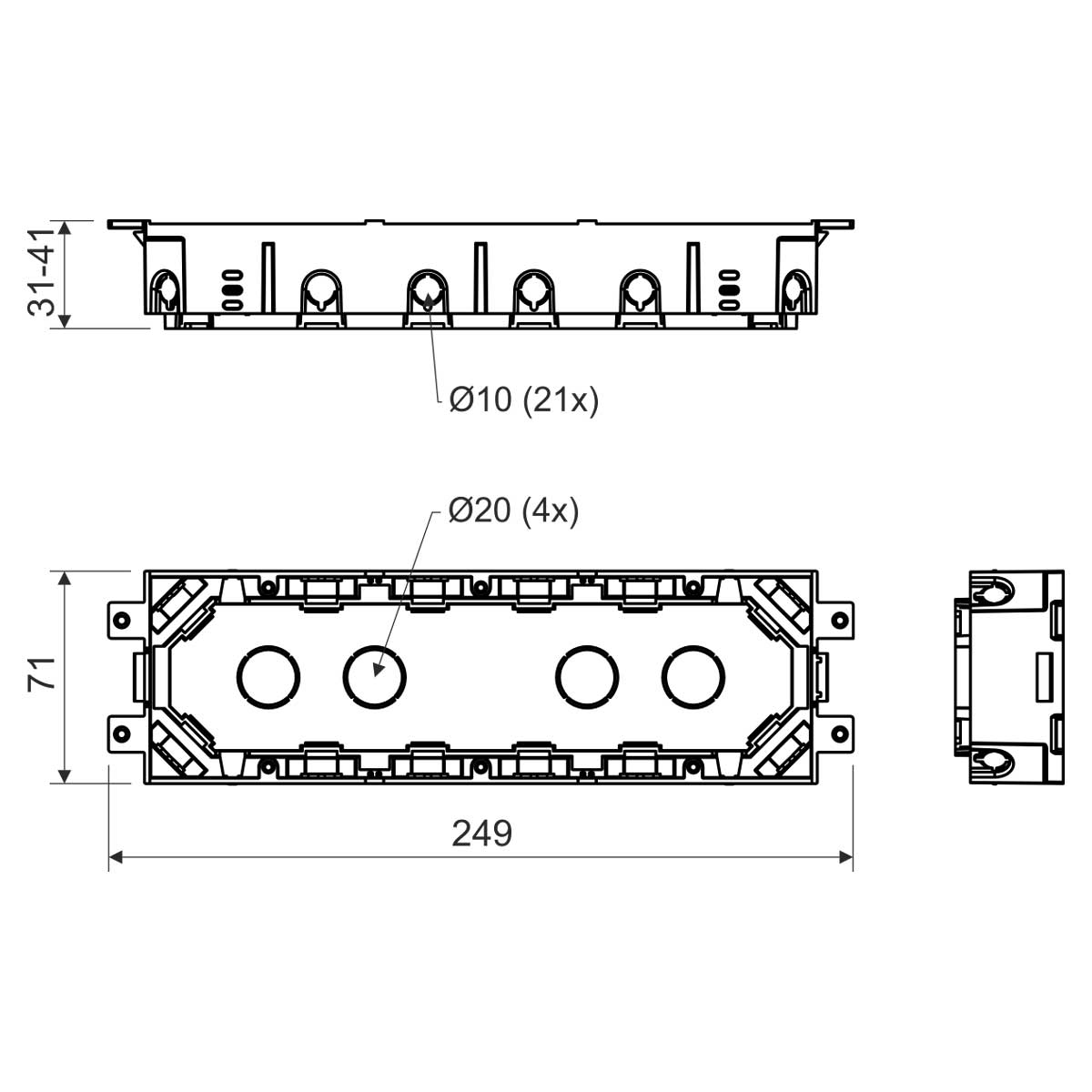

Lătime	249 mm
Înăltime	71 mm
Adâncime	31 - 41 mm
Clasa de reacţie la foc a materialului de fond	A1 - F

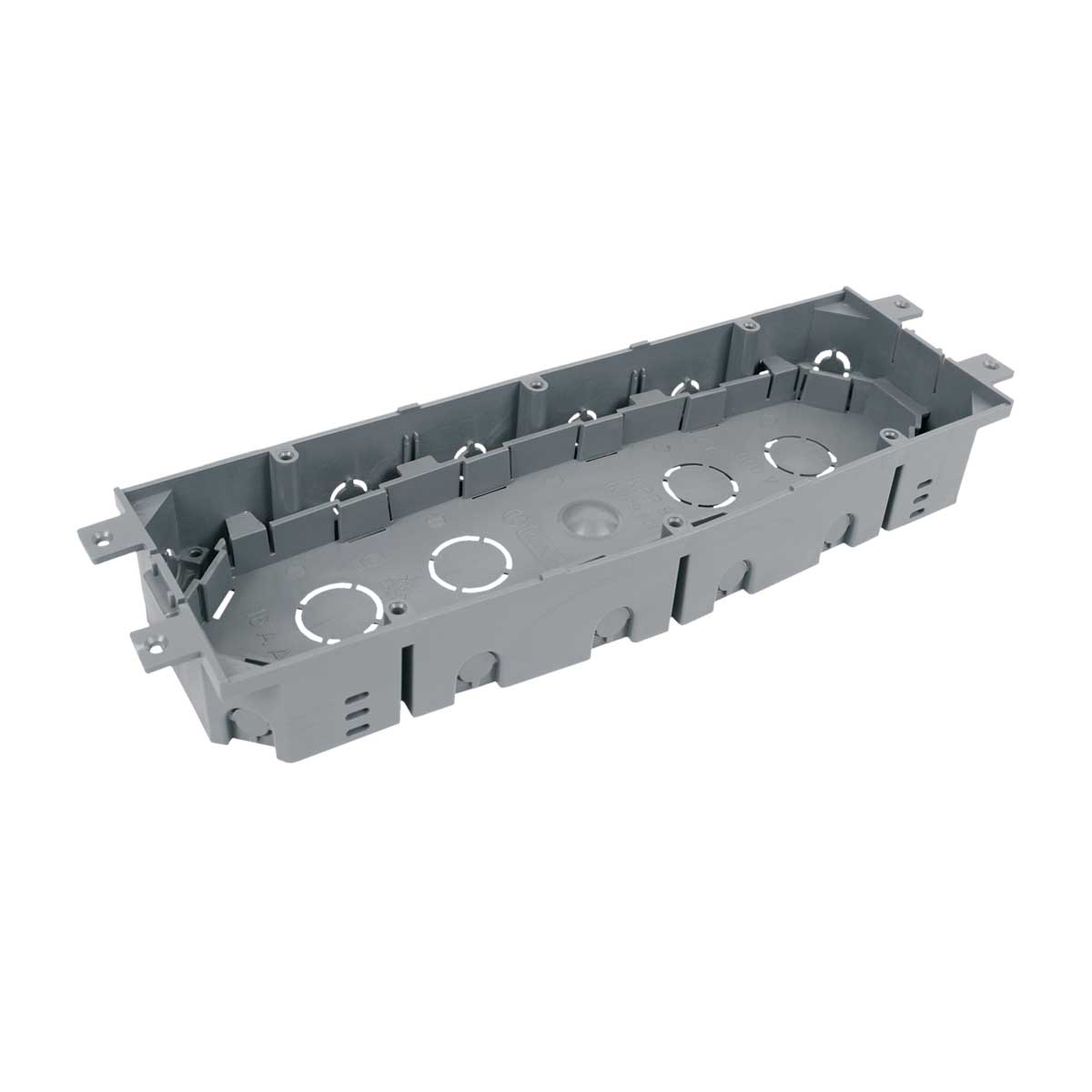

Universal device box for mounting into KOPOBOX 80 (max. 2 pcs). Device screws, cable link screws and cable fixing links are included. Depth of the box is adjustable by changing the position of the bottom.
