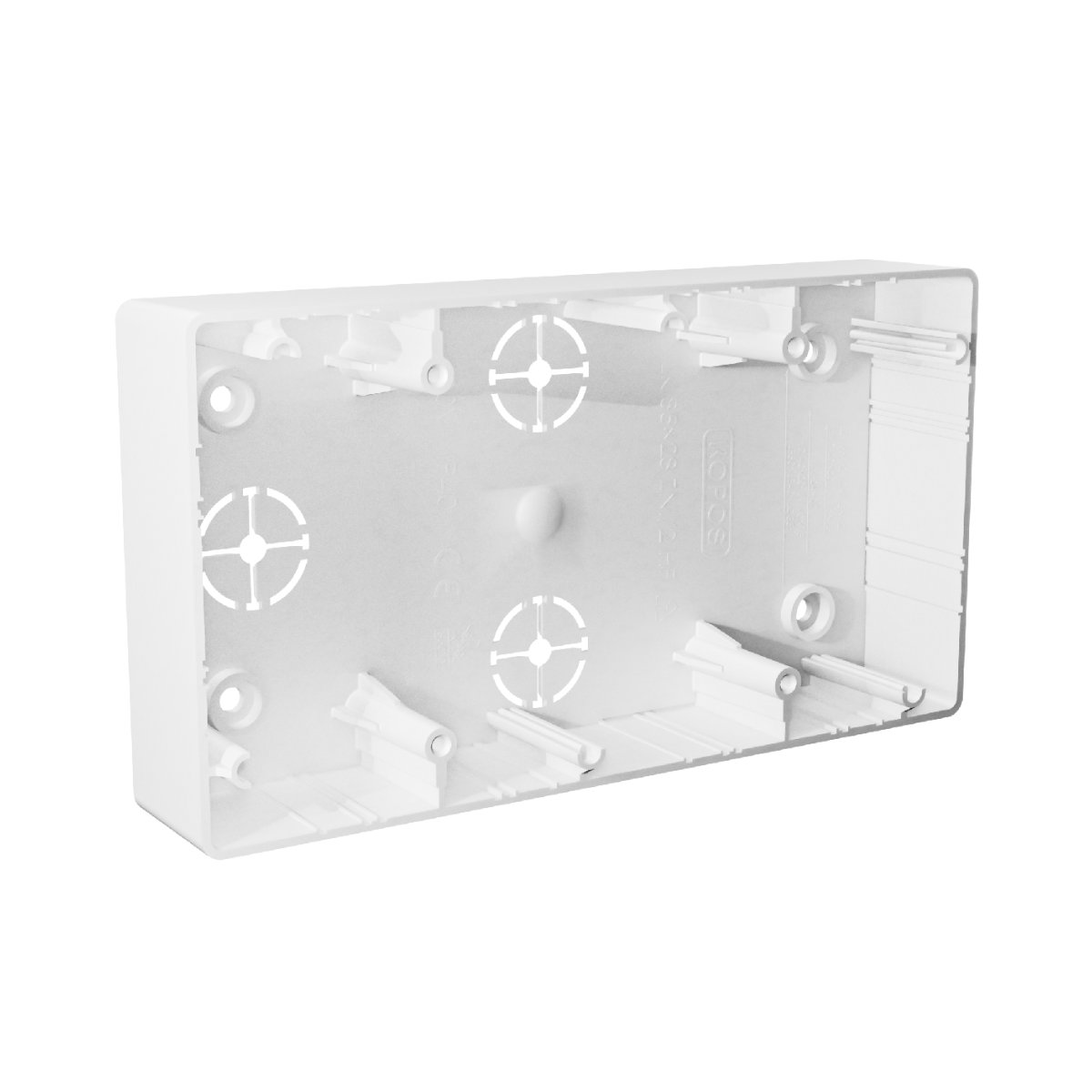

Imagine ilustrativă
LK85X28ZNI2_HF_EN
| Cod Ean | 8595568942104 |
| Cod vamal | 39259080 |
| Greutate | 0,0519 kg/buc |
| Culoare | white |
| Material | PC-ABS |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - +60 °C |
| Testat cu buclă incinsă | 850 °C |

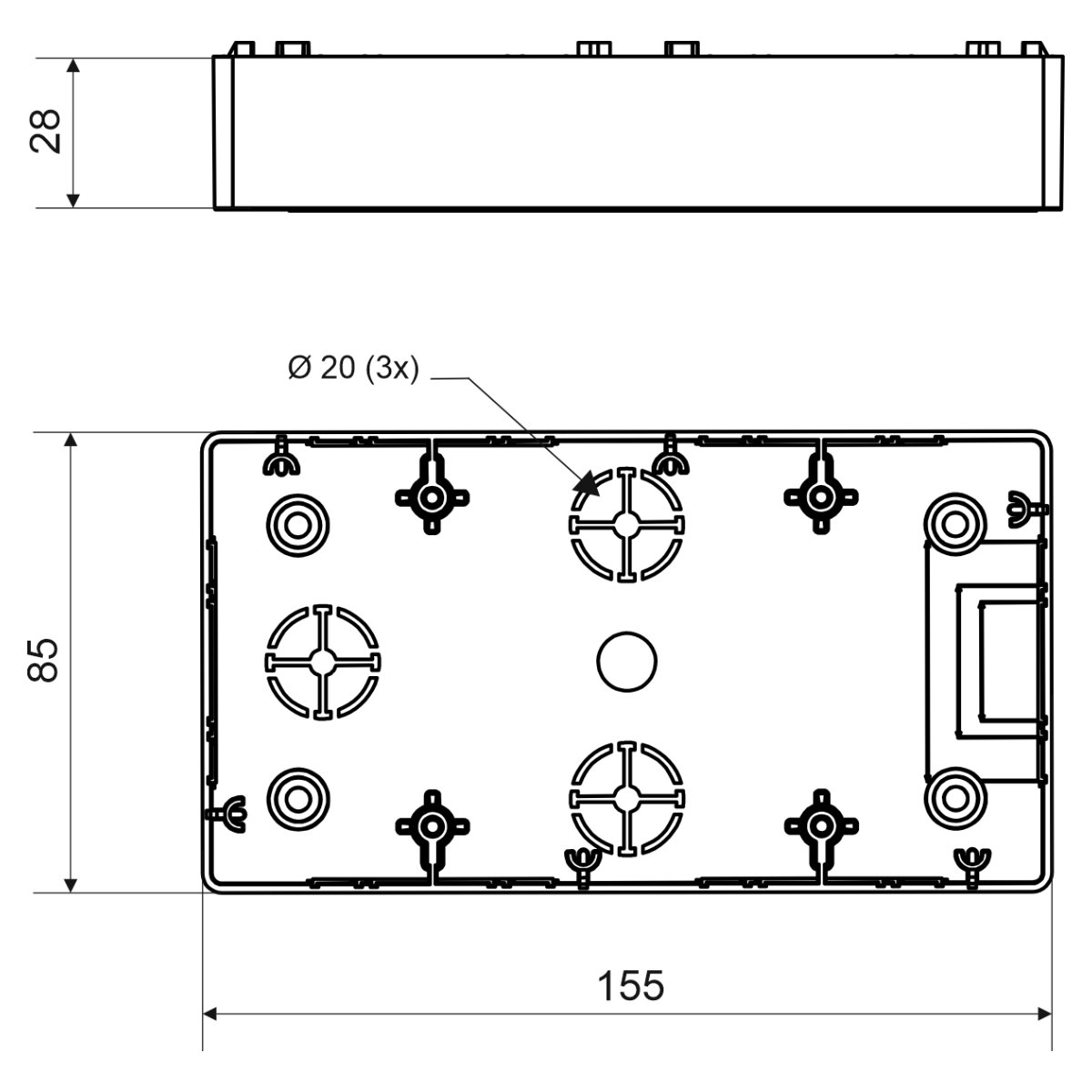

| Lătime | 155 mm |
| Înăltime | 85 mm |
| Adâncime | 28 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Extinderea reacției la foc a materialelor de bază Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed | |
Trunking box designed for devices from the ABB Zoni product line, offering large installation depth. Suitable for installation on materials with reaction-to-fire classes A1 to D. The box is equipped with fixing posts to ensure accurate device positioning.
