Lineal clamps

Atasamente si certificari

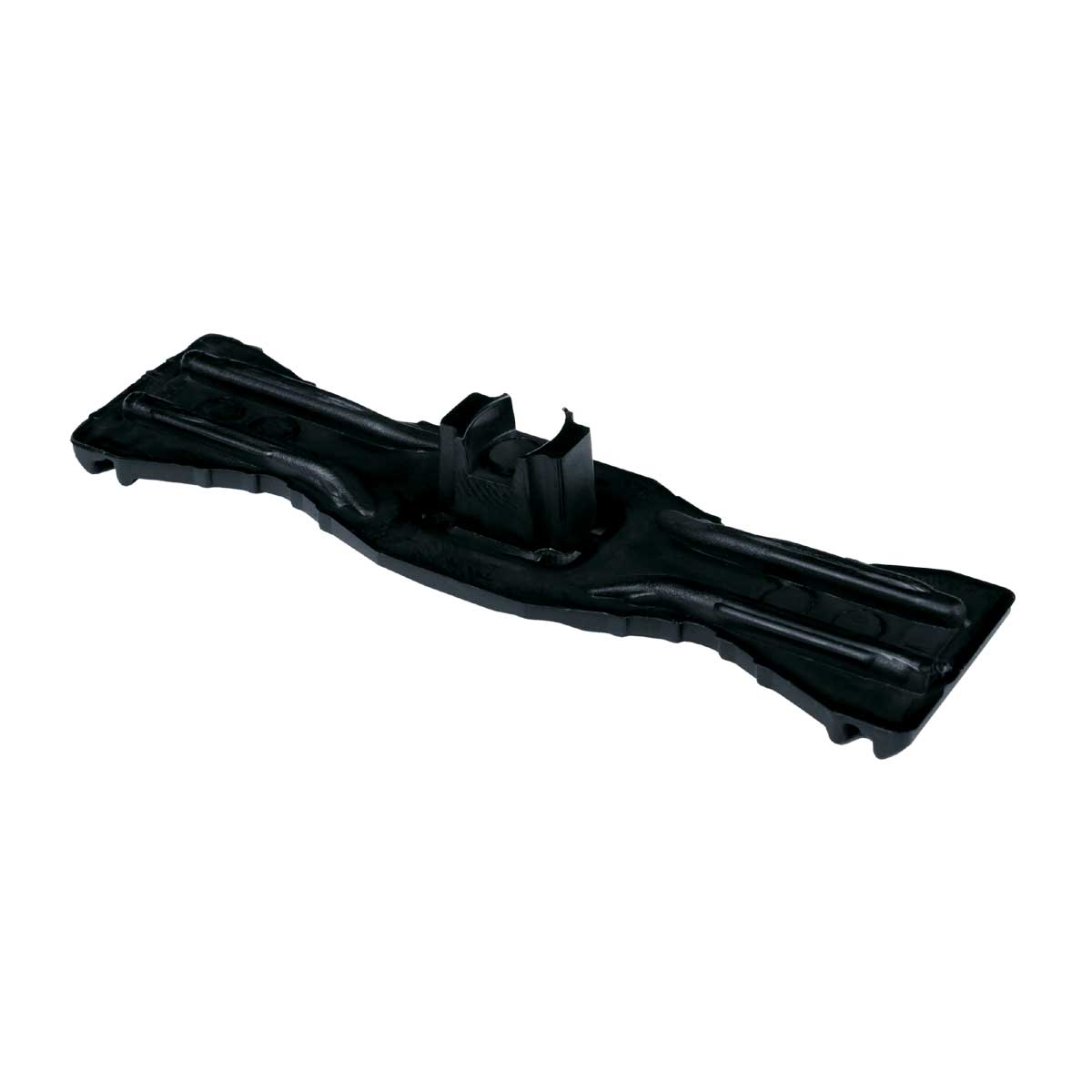

Imagine ilustrativă

Certifikace
Certificate ESČ
Conformity declaration
Declaration REACH
Declaration RoHS

Cod Ean	8595057606227
Cod vamal	39174000
Greutate	0,0027 kg/buc
Material	PA
Material fără halogeni	yes
Rezistența la temperatură	-30 - +80 °C
Lătime	15 mm
Înăltime	11,5 mm
Lungime	70 mm
Diametrul conductorilor	10 - 26 mm
Recomandările producătorului The clamps should be installed immediately after unpacking from the sealed bag.

To fix the protected conductors with Ø10-26 mm side by side on the support trunking 5820 or 5822 DER. Installation is done by bending the clips into a U-shape and inserting into the support trunking It is secured against slipping by punching the pre-pressed wedge on the clip that is already fitted in the rail. Punching is done with a suitable object (screwdriver).
