Cod Ean | 8595057643765 |
Cod vamal | 39172390 |
Greutate | 0,2000 kg/m |
Culoare | red |
Material | HDPE |
Material fără halogeni | yes |
Temperatura de instalare | -25 - 90 °C |
Temperatura de lucru | -55 - 90 °C |
Rezistență mecanică | 450 N/20 cm |
Lungime | 6 m |
Diametru exterior | 50 mm |
Diametru interior | 41 mm |
Toleranță | length ± 1 % |
Recomandările producătorului The producer recommends the installation of plastic pipes at temperatures above 0 ° C. | |
Clasa de reacţie la foc a materialului de fond | A1 |
Tipuri de protecție | IP 40, if IP 67 sealing ring is used |
Standarde | ČSN EN 61386-24 |
În stoc | standard |

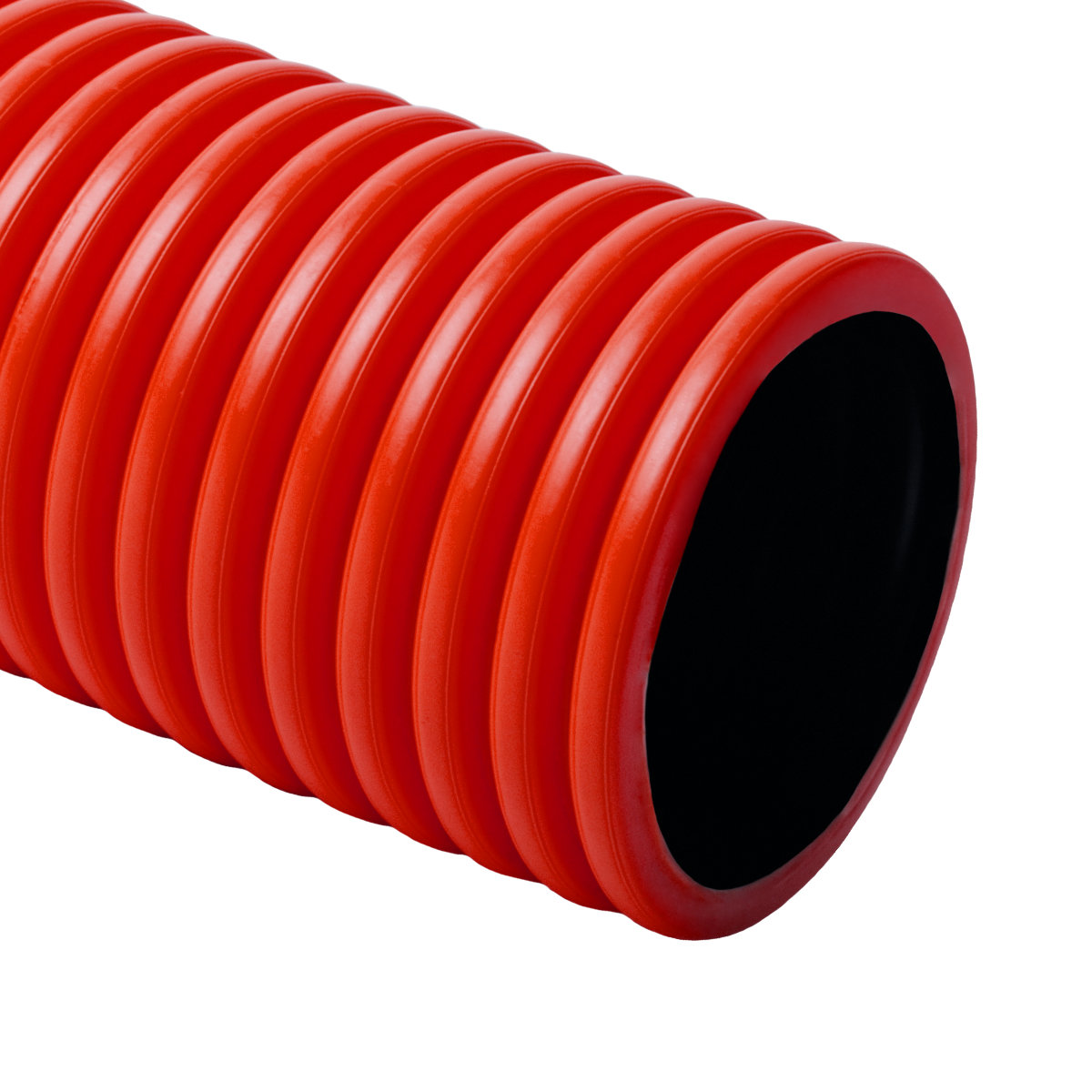

Halogen-free rigid double-coated pipe designed for mechanical protection of all kinds of power and data wiring. The pipes are made in compliance with ČSN EN 61386-24. The pipe is available in form of a bar, the coupling is put on one end of it. The connection is sealed dust/sand resistant. When using a sealing ring, the protection class is IP 67. In case of mechanical compaction of layers above the protector, take care not to exceed the value of the load capacity of the protector - see catalogue PIPE PROTECTORS. The product may have common surface mechanical damage (crumpling, scratches, deformations of the ribs) to the outer wall of the pipe caused by production or transport technology, which does not affect the functionality of the product.
