Imagine ilustrativă
| Cod Ean | 8595568934208 |
| Cod vamal | 83024190 |
| Greutate | 0,5335 kg/buc |
| Acoperire de suprafată | Stainless steel AISI 304 |
| Standarde | ČSN EN 61537 |
| Încarcatura maximă | 100 kg |
| Dimensiunea A | 420 mm |
| Dimensiunea B | 84 mm |
| Pentru lățimea jgheabului de cabluri | 400 mm |

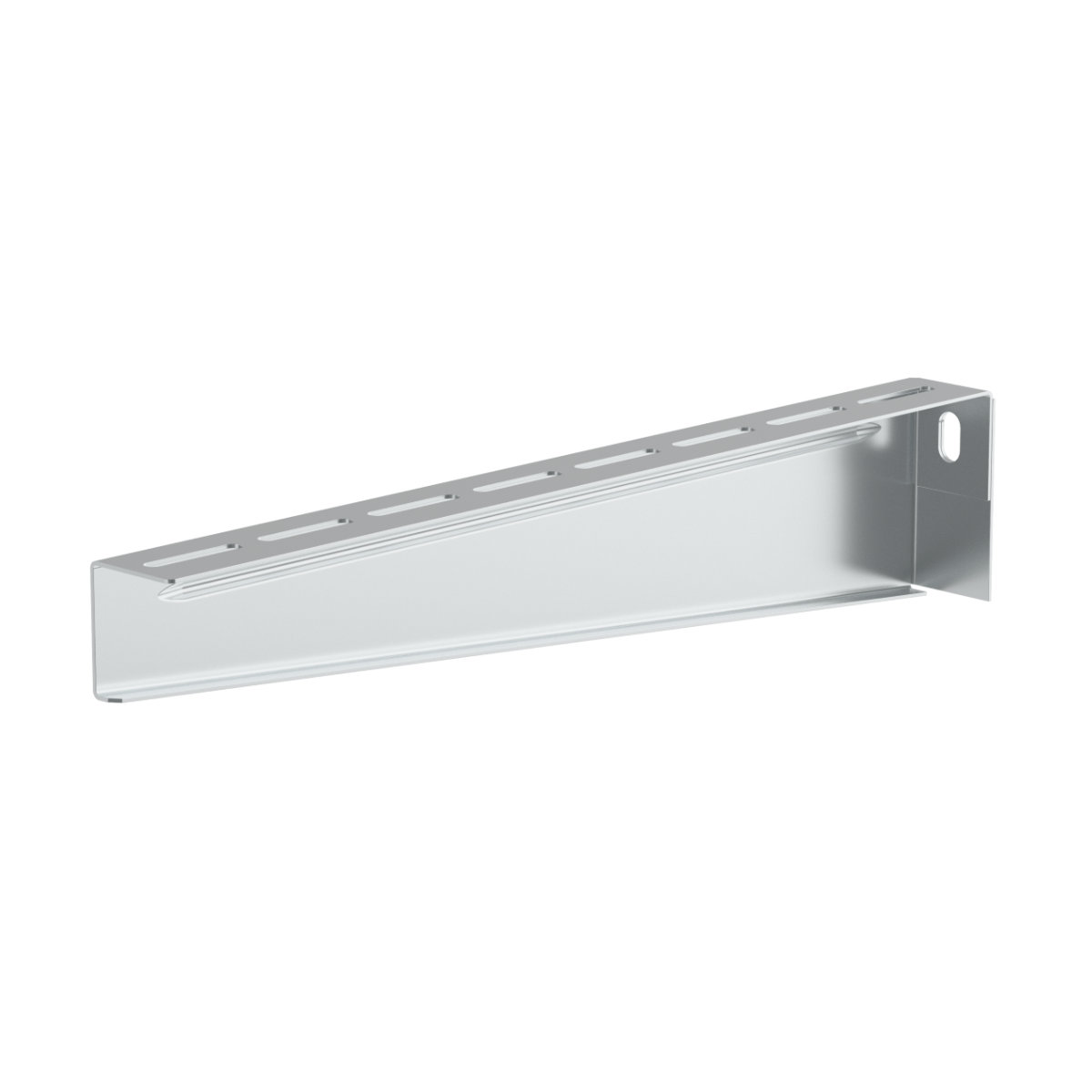

The bracket is used as an element to create a supporting structure for a cable tray. It is designated for installation on the wall or mounting profile. Attached to the wall using 2 pcs Ø 8 mm anchors. NIXSM 6X10 bolts are used to attach the cable tray to the bracket. To protect the cables, the bolt head is inside the cable tray.
INOXDS_EN
