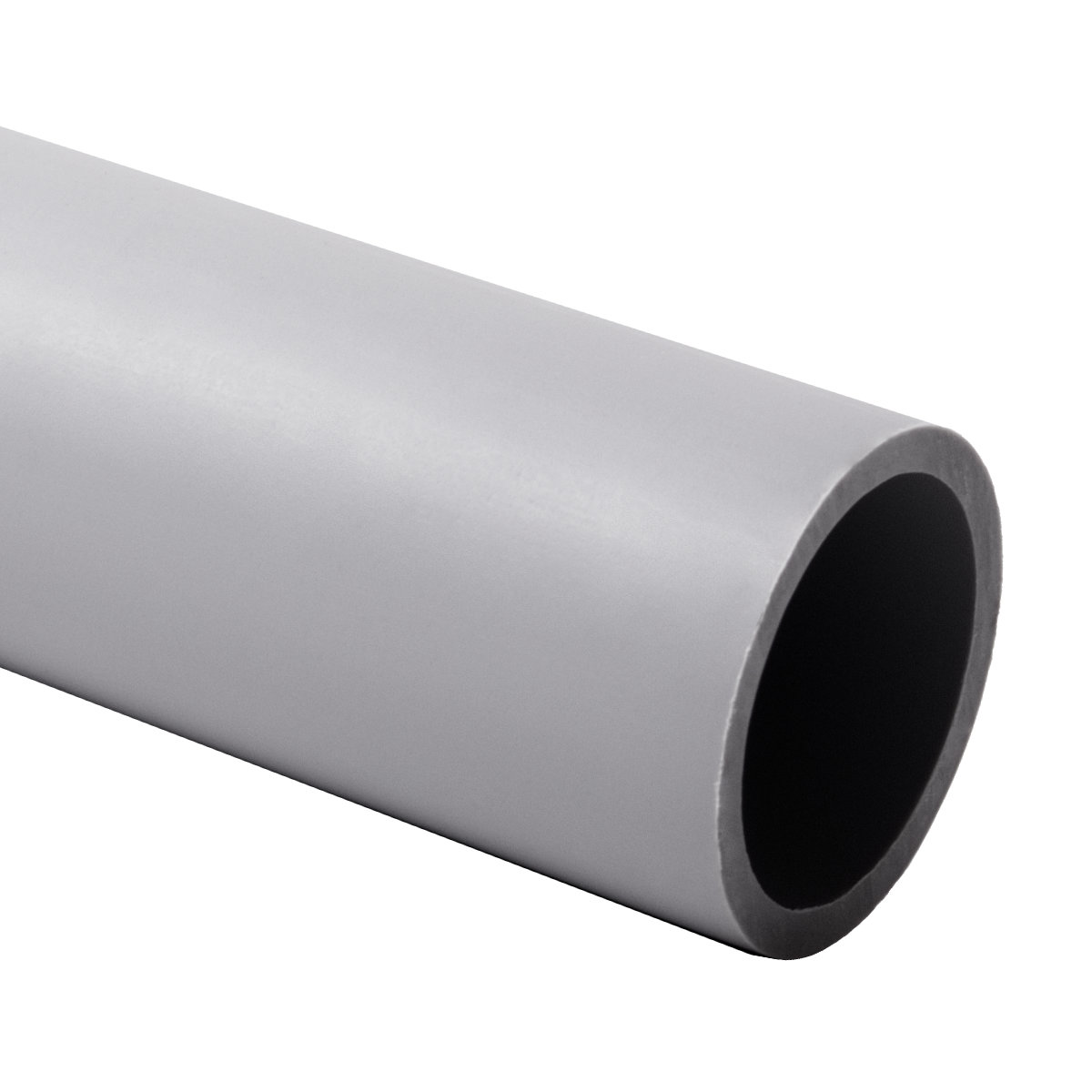

Optical cable protectors HDPE (light grey)

Atasamente si certificari

Imagine ilustrativă

Datový list
HDPE_EN

Certifikace
Declaration REACH
Conformity declaration
Certificate ESČ
Declaration RoHS

Cod Ean	8595568927286
Cod vamal	39173300
Greutate	0,4100 kg/m
Culoare	light grey
Material	HDPE
Material fără halogeni	yes
Rezistența la temperatură	-5 - 50 °C
Rezistență mecanică	750 N/20 cm
Rezistență la impact	N (normal, according to ČSN EN 61 386-24)
Rezistență la incovoiere	flexible
Diametru exterior	40 mm
Diametru interior	33 mm
Toleranță	length ± 2 mm/m
Raza minimă de încovoiere	400 mm
Recomandările producătorului The producer recommends the installation of plastic pipes at temperatures above 0 ° C.
Notă Protectors are tested at a pressure of 1.5 MPa for 1 hour
Clasa de reacţie la foc a materialului de fond	A1
Descriere impachetare Harness. Packaging on wooden drums and pallets for unwinding drums isdeliverd just upon previous order according to the customer specifications.
În stoc	standard

Single-coated pipes designed to protect cables with optical fibers under the ground. For larger volumes different color versions (beyond presented versions), labeling, number of differential stripes, denticular inner surface or inner diameter size (material thickness) can be ordered based on customer needs and specifications.
