KKD115_EN
| Cod Ean | 8595568945006 |
| Cod vamal | 39259080 |
| Greutate | 0,1516 kg/buc |
| Culoare | light grey RAL 7035 |
| Material | PP, TPE |
| Material fără halogeni | yes |
| Voltaj nominal | <= 1000 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -25 - +60 °C |
| Testat cu buclă incinsă | 850 °C |
| Protectie mecanică | IK07 |
| Lătime | 115 mm |
| Înăltime | 115 mm |
| Adâncime | 70 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP66 |
| Descriere impachetare sealing plugs, external handle of the box and string to hold the lid are inserted into the box, the box is covered with a lid, wrapped in foil | |

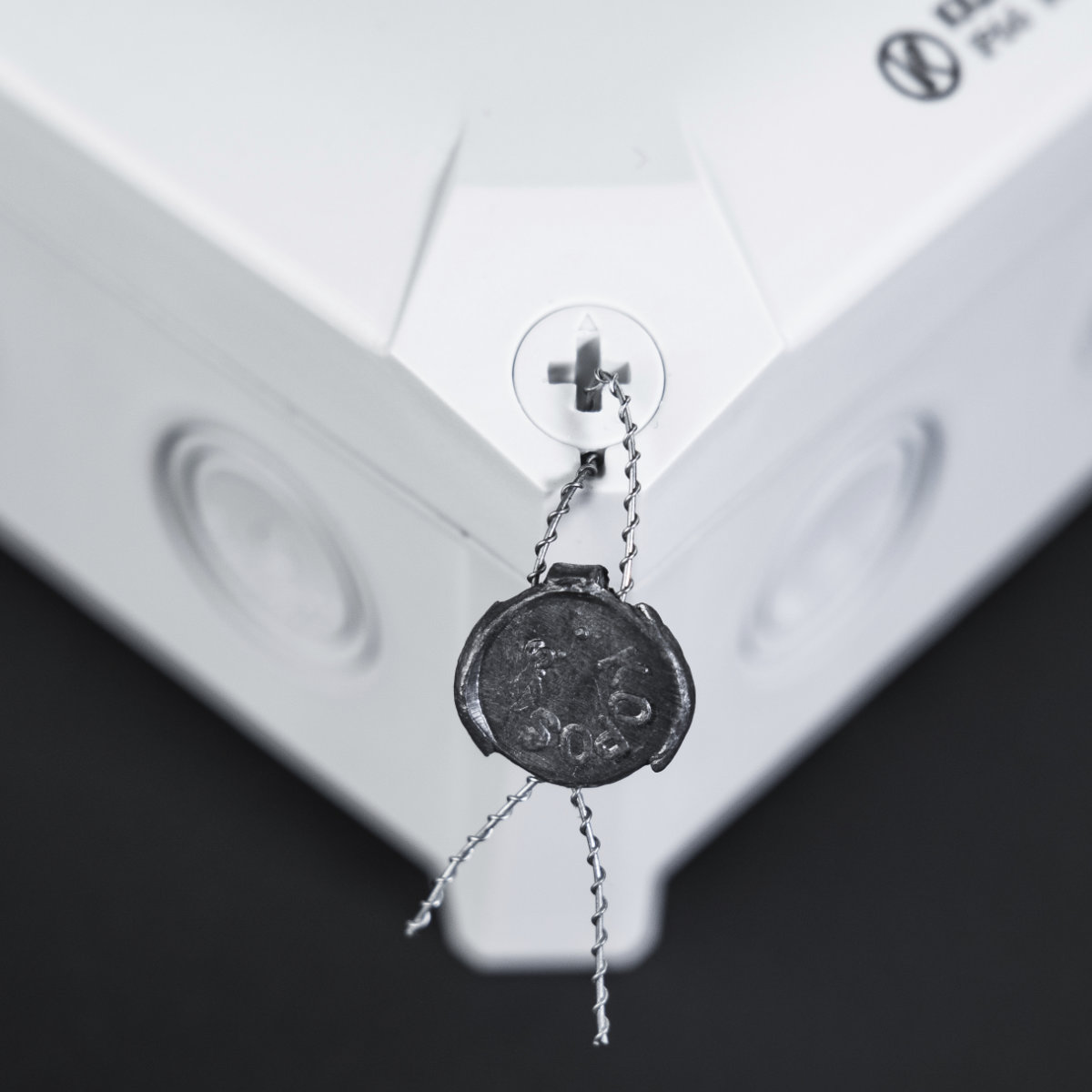

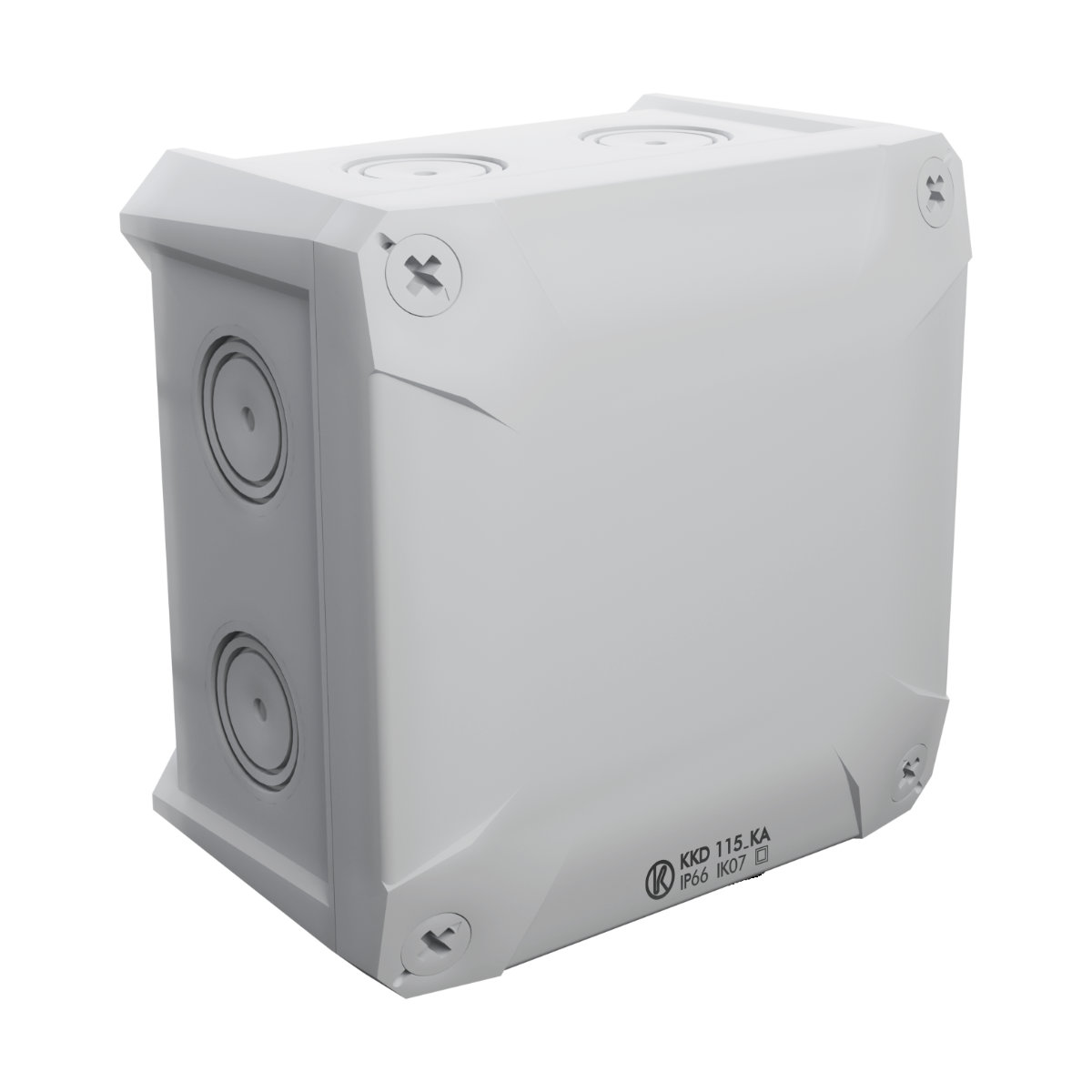

Box designed for distribution systems with voltages up to 1000 V. Made of UV-resistant material. Integrated seal in the openings for mounting to the base material. Perfect sealing of cables and pipes. 7x passage in the wall max. Ø25 mm, 1x passage in the bottom max. Ø20 mm. Designed for direct installation on the surface without the need for an insulating pad. A lid fixed with bayones. Possibility of placing a seal on a closed box.
